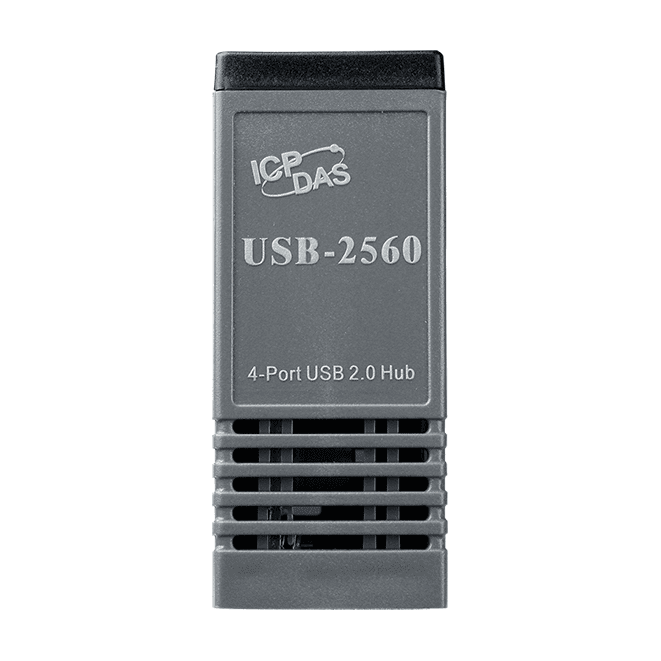

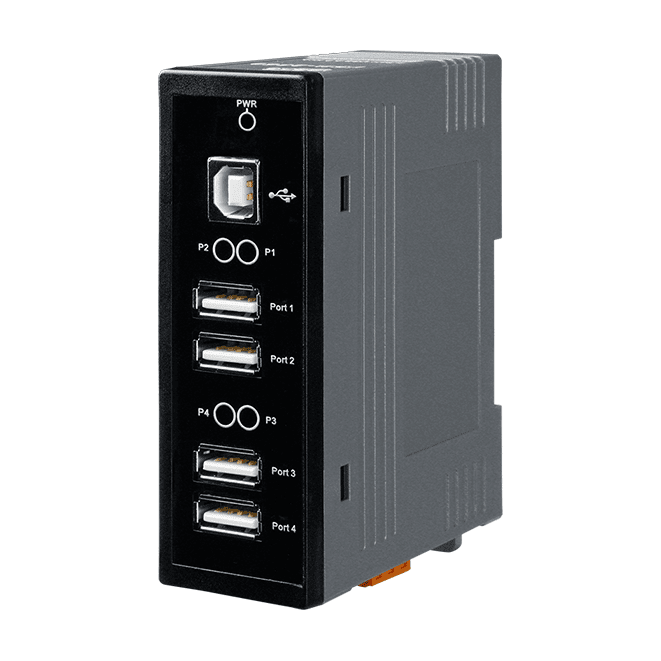

USB-2560 4-Port Industrial USB 2.0 Hub with DIN-Rail Mounting
Self-powered 4-port industrial USB 2.0 hub supporting 480 Mbit/s high-speed mode, supplied with a 1.8 m CA-USB18 cable, for +10 ~ +30 VDC installations.
- Compliant with USB Specification Revision 2.0 and USB 1.1 standard compatible
- Self-powered operation only, from a +10 ~ +30 VDC external supply
- Four downstream Type A ports, each rated up to 500 mA
- Supports high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) modes

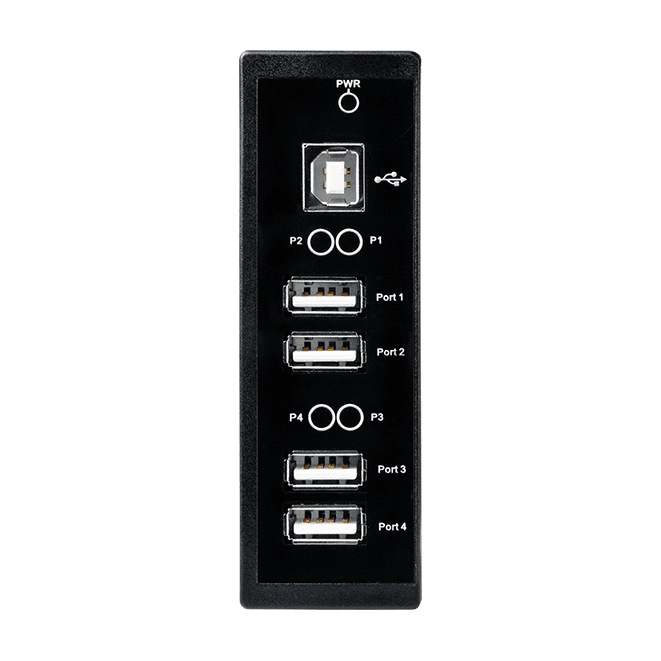

- LED indication for power and downstream port status
- Includes CA-USB18 USB 2.0 A-Male to B-Male cable, 1.8 m
1 132,35 kr per stk.
| 1–9 stk. | 1 132,35 kr | |
|---|---|---|
| 10–30 stk. | 1 101,18 kr | −3 % |
| 31+ stk. | 1 080,40 kr | −5 % |
Produktinformasjon "USB-2560 4-Port Industrial USB 2.0 Hub with DIN-Rail Mounting"
USB-2560 CR is a 4-port industrial USB 2.0 hub for adding several USB peripherals to a computer without relying on the host for power. It operates only in self-powered mode, drawing its supply from an external +10 ~ +30 VDC source, so downstream devices are not dependent on the computer's USB power budget.
The hub is compliant with USB Specification Revision 2.0 and supports high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) transfers. Each downstream port can supply up to 500 mA, and a status LED for each port shows its operating state. The package includes a CA-USB18 USB 2.0 A-Male to B-Male cable, 1.8 m long, for connection to the host.
The plastic housing mounts on DIN-rail and is rated for an operating range of 0 ~ +75 °C, making it suited to control cabinet installations where several USB devices need to be connected to an industrial PC or computer.
Applications
- Connecting multiple USB 2.0 peripherals to a computer in industrial control cabinets
- Expanding USB port count on DIN-rail mounted industrial PCs and automation systems
| Product type: | USB Hub |
|---|---|
| Interface: | USB 2.0 |
| Ports: | 4 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x Downstream Ports |
| USB | |
| Ports | 4 |
| Specification | USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed | 480 Mbit/s-high speed mode 12 Mbit/s- full speed mode 1.5 Mbit/s-low speed mode |
| Supply Current | 500 mA Max. per port |
| Connector | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Power | |

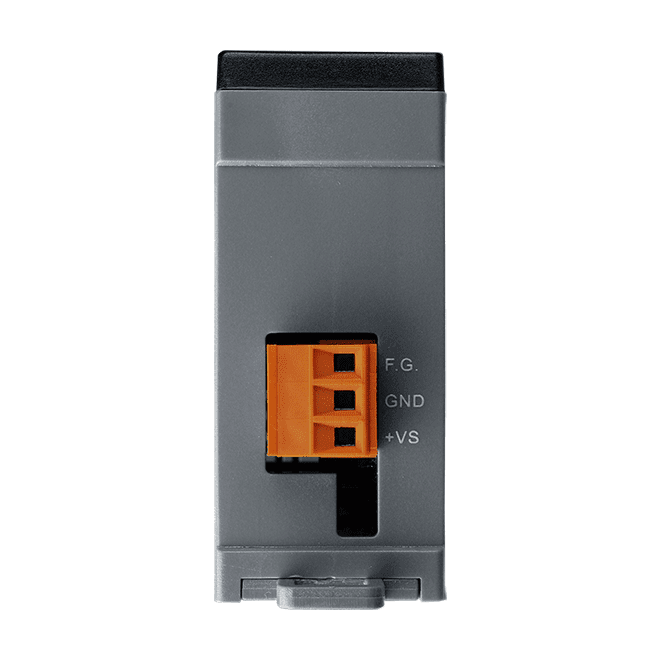

| Input Range | +10 ~ +30 VDC |
| Consumption | 0.25 A @ 24 VDC for 250mA per port. 0.5 A @ 24 VDC for 500mA per port. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | 0 ~ +75 °C |
| Storage Temperature | -20 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
