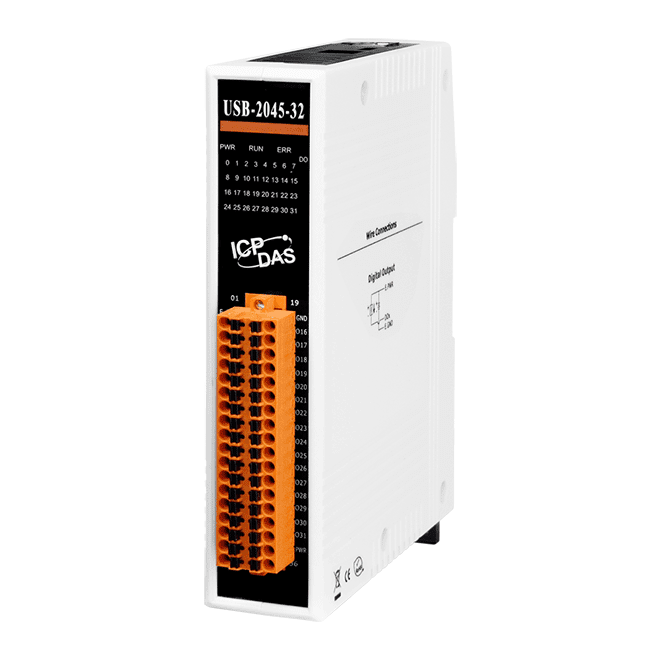

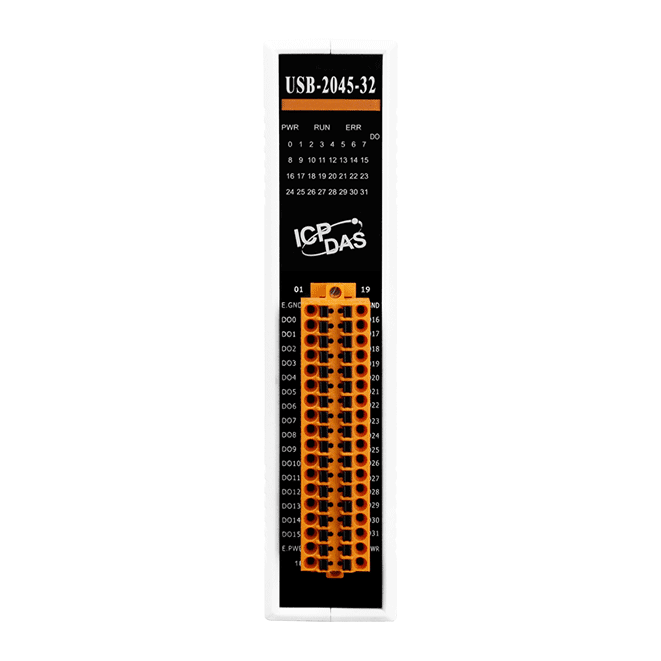

USB-2045-32 USB I/O Module, 32-ch Sink (NPN) Digital Output
Plug-and-play USB I/O module with 32 sink-type (NPN) digital outputs, bus powered over USB 2.0 Full-Speed, with programmable power-on and safe values.
- 32 sink-type (NPN) open-collector digital outputs, 500 mA per channel
- Programmable power-on value and safe value for communication failure
- Bus powered over USB 2.0 Full-Speed (12 Mbps), no external supply
- Plug-and-play operation without driver installation
- Hardware watchdog (1.6 second) and programmable software watchdog
- Overload protection of 1.4 A with short-circuit protection, 60 VDC overvoltage protection
2 212,75 kr per stk.
| 1–9 stk. | 2 212,75 kr | |
|---|---|---|
| 10–30 stk. | 2 150,42 kr | −3 % |
| 31+ stk. | 2 098,48 kr | −5 % |
Produktinformasjon "USB-2045-32 USB I/O Module, 32-ch Sink (NPN) Digital Output"
The USB-2045-32 expands I/O on a PC or embedded host through a single USB connection, with no external power supply required. Its 32 open-collector, sink-type (NPN) digital outputs each handle up to 500 mA, and an LED per channel shows the state of every output at a glance.
Two watchdog layers, a hardware watchdog (1.6 second) and a programmable software watchdog, work together with programmable power-on and safe values. If communication fails, the outputs move to their configured safe state, which helps keep control systems predictable in demanding environments.

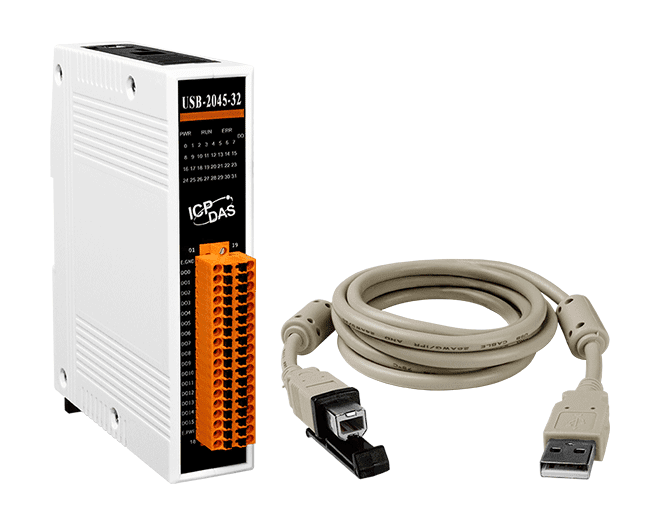

The ordering code CR variant is supplied with a 1.5 M USB cable (CA-USB15), and the cable can be locked to the module. A utility tool supports module configuration and I/O testing, and an API library is available for VB, C++, C#.NET, VB.NET and LabVIEW.
Applications
- Automation
- Laboratory research
- Measurement and testing
- Testing equipment
| Product type: | USB I/O Module |
|---|---|
| Interface: | USB 2.0 Full-Speed |
| Digital outputs: | 32 |
| Power input: | USB bus powered |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
| Status | 3 x Power and Communication 32 x Digital Output |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector, Sink (NPN) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 500 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
| Consumption | 2.2 W |
| Mechanical | |
| Dimensions (mm) | 31 x 147 x 126 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
