U-7555M OPC UA I/O Module, 8-ch DI, 8-ch DO and 2-port PoE Ethernet Switch
OPC UA I/O module with 8 digital inputs, 8 digital outputs, PoE and a dual-port switch for daisy-chain wiring. Runs OPC UA, MQTT and RESTful API at the same time.
- OPC UA Server / Client, MQTT Client and RESTful API, executable at the same time
- 8 digital inputs (dry or wet contact) and 8 isolated open-collector digital outputs
- Dual-port 10/100 Base-TX switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE or +12 ~ +48 VDC terminal block power
- IF, THEN, ELSE logic rules and schedule-based execution
- Built-in web user interface, event log and IoTstar cloud management support
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "U-7555M OPC UA I/O Module, 8-ch DI, 8-ch DO and 2-port PoE Ethernet Switch"

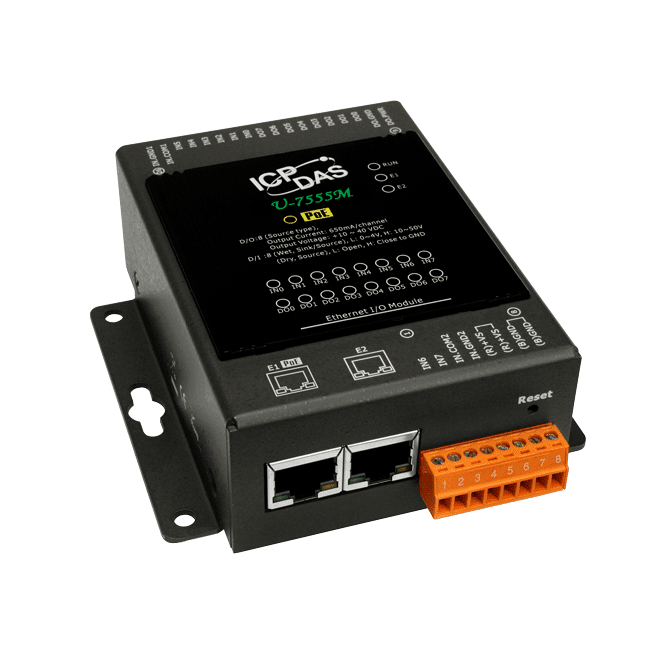

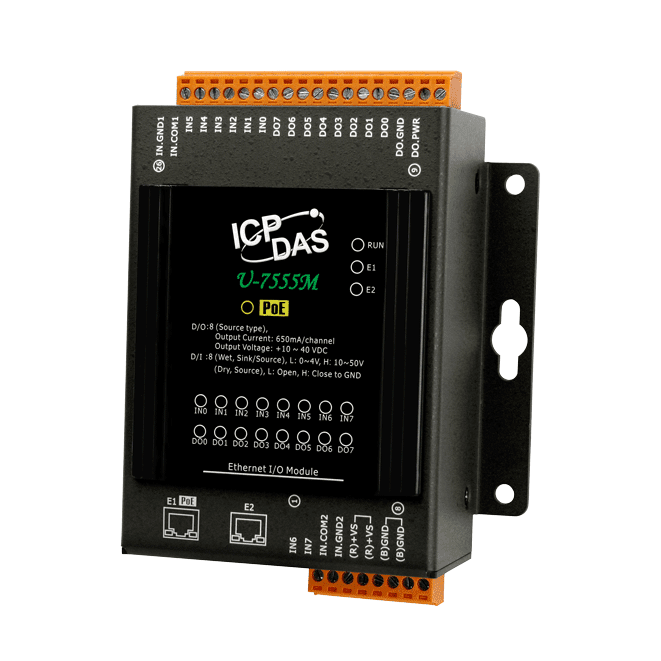

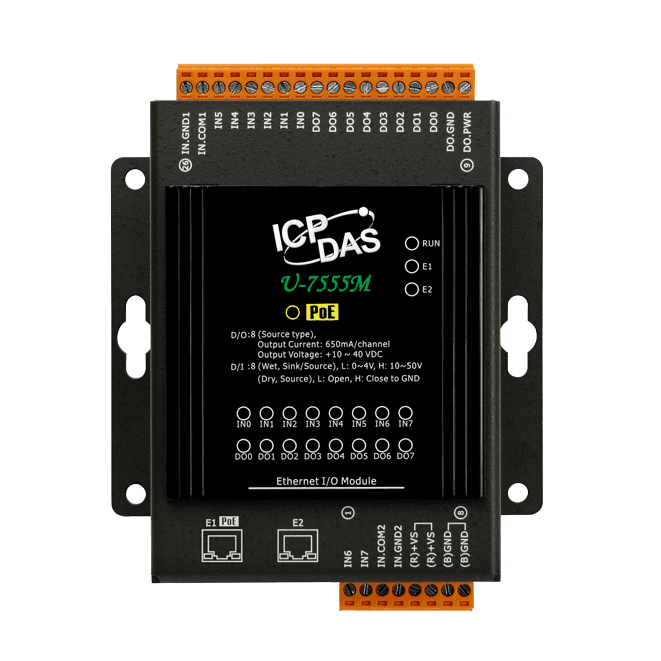

The U-7555M is an Ethernet I/O module that brings 8 digital inputs and 8 digital outputs onto an OPC UA network. Its built-in web server lets you configure, control and monitor the module, its connections and I/O status from a browser, so no additional app is needed.
Two integrated 10/100 Base-TX switch ports allow modules to be daisy-chained, which reduces cabling and the number of external switches. The unit can be powered over Ethernet under IEEE 802.3af (Class 3) or from a +12 ~ +48 VDC terminal block, which helps simplify installation in DIN-rail cabinets.
For integration, the module supports OPC UA Server and Client, MQTT Client and RESTful API over HTTP or HTTPS, and these can run simultaneously. IF, THEN, ELSE logic rules and time-based schedules let you act on I/O and virtual points locally, while I/O trigger messages can be written to a CSV file or sent to a line for device tracking.
Applications
- Sending digital I/O values to cloud or field control systems for display, analysis or control strategy
- Distributed digital I/O over Ethernet with daisy-chain wiring
- Event-driven control using logic rules and schedules
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC, PoE (IEEE 802.3af) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 650 mA/Channel at 25°C |
| Overvoltage Protection | +47 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

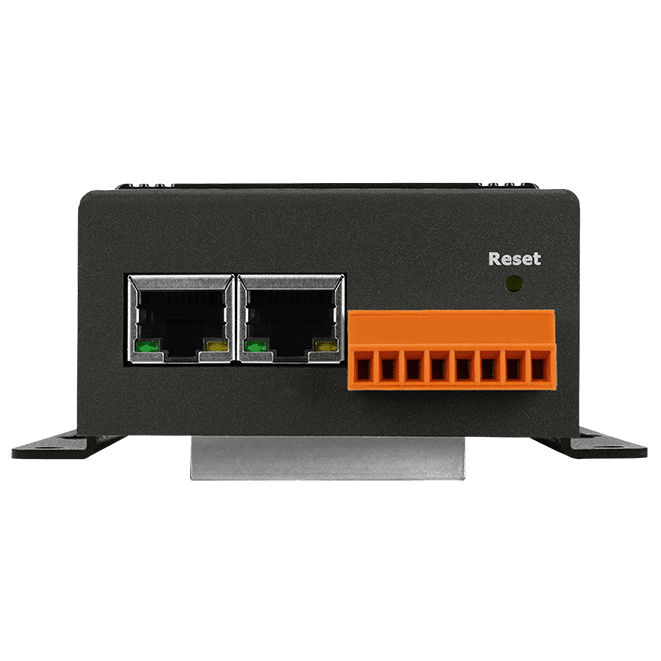

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.3 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

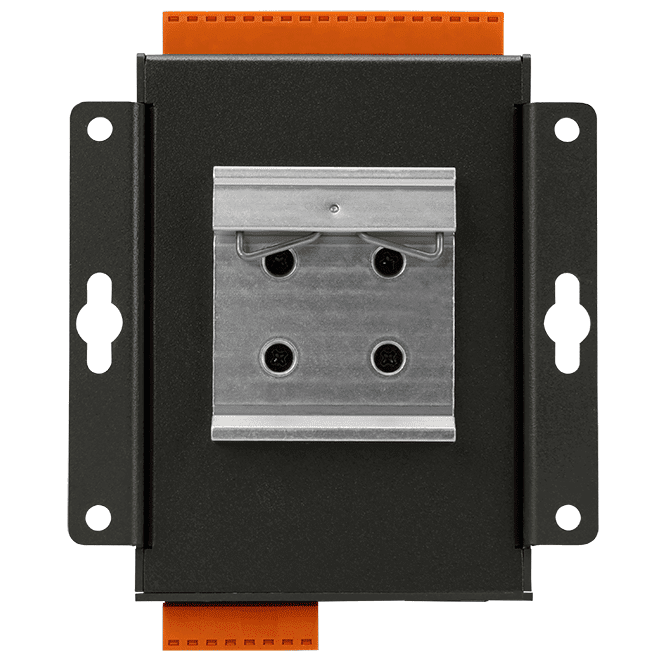

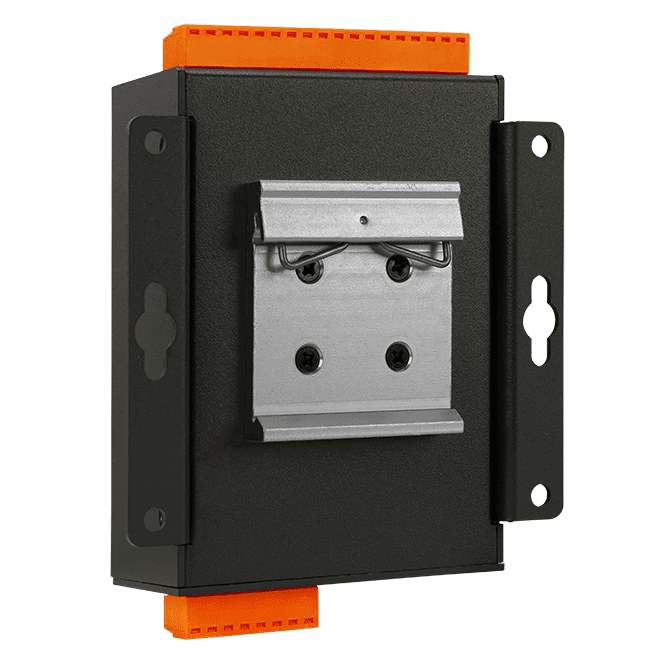

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
