U-7545M OPC UA I/O Module, 16-ch Digital Output with PoE and 2-port Switch
U-7545M is an OPC UA I/O module with 16 isolated digital outputs, a dual-port Ethernet switch for daisy-chaining and IEEE 802.3af PoE, for Ethernet-based control and cloud data exchange.
- 16 isolated source-type digital outputs, 600 mA per channel, with short-circuit protection
- OPC UA Server/Client, MQTT Client and RESTful API (HTTP/HTTPS) running simultaneously
- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE, or 12 to 48 VDC terminal block power
- IF, THEN, ELSE logic rules and scheduled rule execution
- Built-in web user interface, with ID, password and IP filter access control
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "U-7545M OPC UA I/O Module, 16-ch Digital Output with PoE and 2-port Switch"

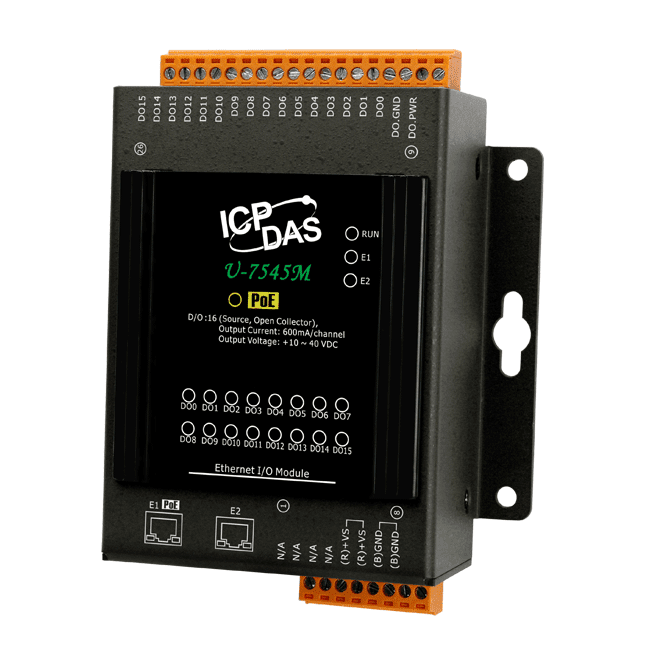

U-7545M is a DIN-rail Ethernet I/O module that brings 16 isolated source-type digital outputs onto an OPC UA network. It can act as an OPC UA Server or Client and can also publish I/O values over MQTT or be read and written through a RESTful API over HTTP or HTTPS, with all three running at the same time.
The built-in dual-port switch allows modules to be daisy-chained along a line, reducing cabling and the need for additional switches. Power can be taken from a PoE-enabled network (IEEE 802.3af, Class 3) or from a 12 to 48 VDC terminal block, which helps simplify installation where power sockets are limited.
Local logic is handled by IF, THEN, ELSE rules, which can act on I/O and virtual points, and by a schedule function that runs rules at set times. A built-in web interface is used for configuration, control and monitoring, and I/O trigger messages can be logged to a CSV file or sent to a line for device tracking.
Applications
- Publishing digital output status to cloud or field control systems over OPC UA or MQTT
- Local rule-based control of outputs using IF, THEN, ELSE logic and scheduled actions
- Daisy-chained Ethernet I/O distribution in cabinets where cabling and switch count need reducing
- Device tracking through I/O trigger messages logged to CSV or sent to a line
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital outputs: | 16 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 3750 VDC (I/O) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Source |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | +47 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

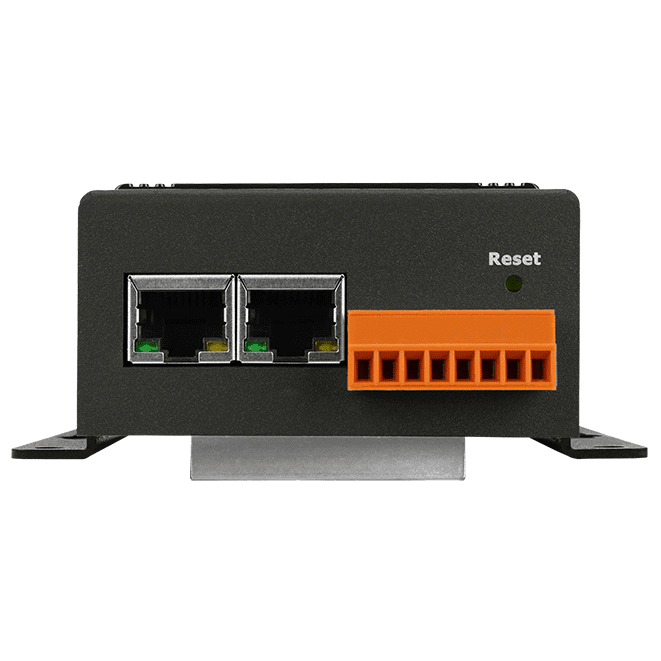

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

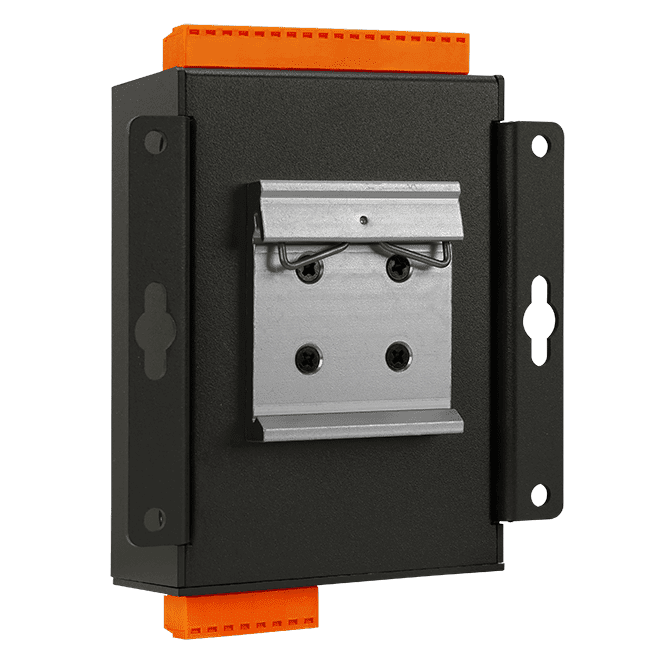

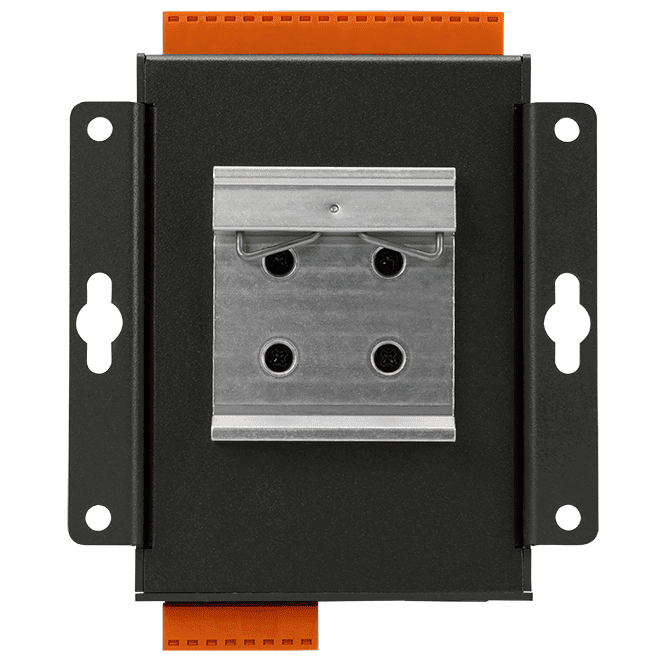

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
