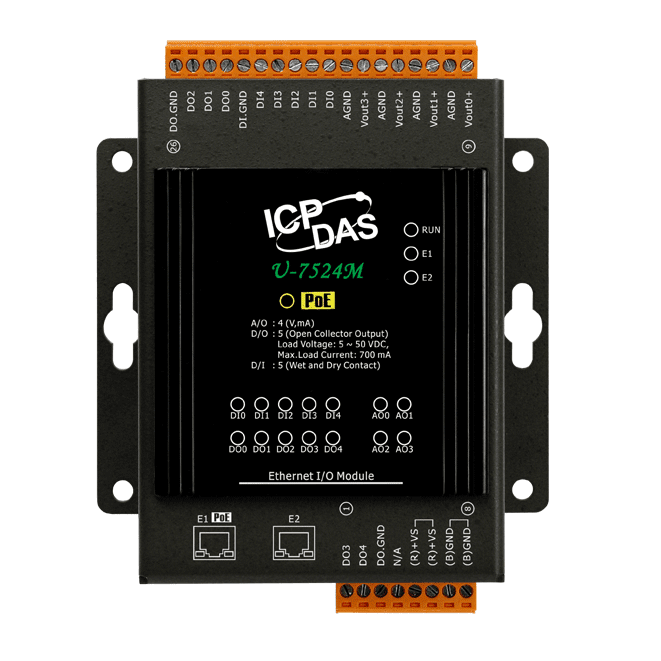

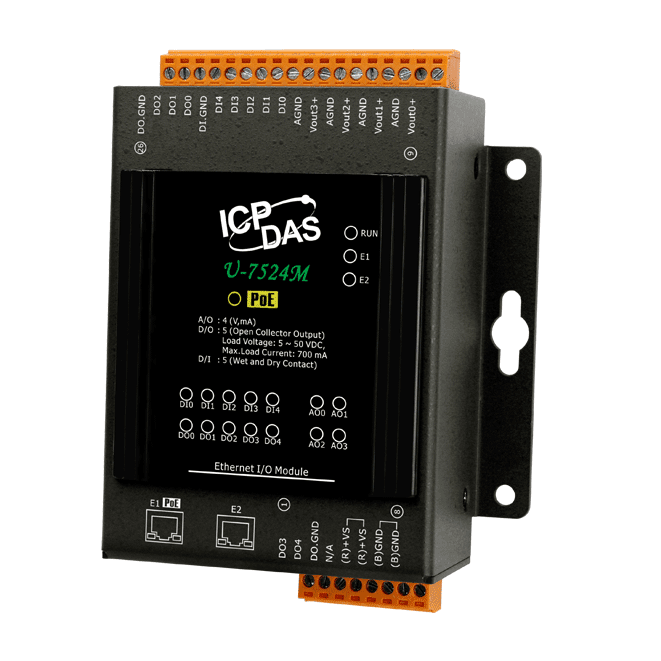

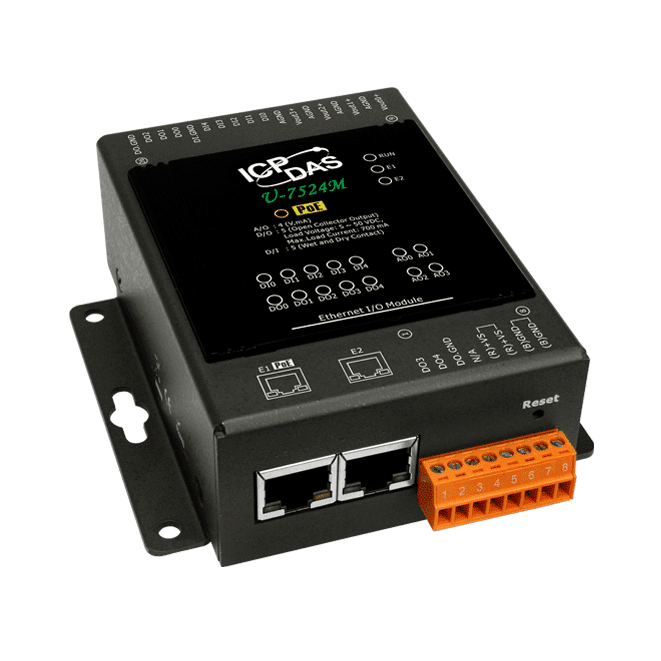

U-7524M OPC UA I/O Module, 4-ch AO, 5-ch DI, 5-ch DO with PoE Switch
OPC UA I/O module with 4 analogue outputs, 5 digital inputs and 5 digital outputs, plus a dual-port Ethernet switch and PoE. Also supports MQTT and RESTful API.
- OPC UA Server / Client, MQTT Client and RESTful API, all executable simultaneously
- 4 analogue outputs, voltage or current (jumper selectable), 12-bit resolution, ±0.1% of FSR accuracy
- 5 digital inputs for dry or wet contact and 5 isolated open collector sink outputs rated 600 mA per channel

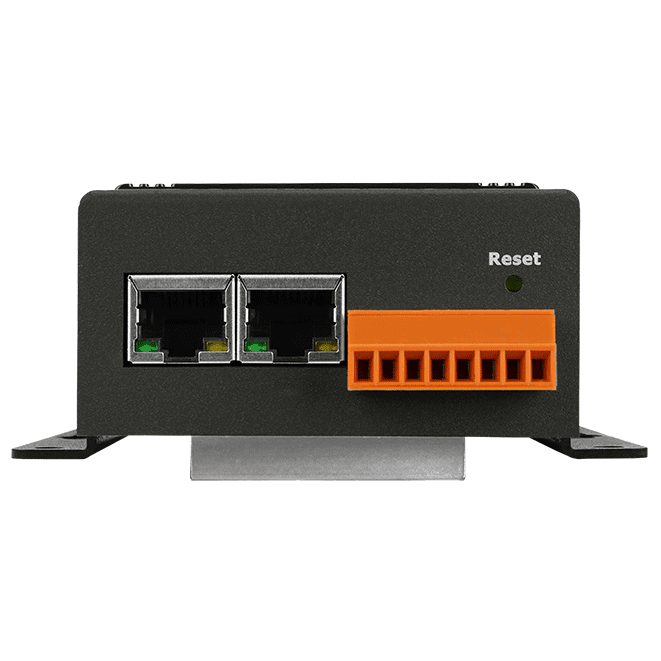

- Dual-port 10/100 Base-TX switch for daisy-chain topology, with IEEE 802.3af Class 3 PoE
- IF, THEN, ELSE rule logic and schedule-based rule execution
- Scaling for analogue signal conversion and I/O trigger messages to CSV file or line
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "U-7524M OPC UA I/O Module, 4-ch AO, 5-ch DI, 5-ch DO with PoE Switch"
U-7524M is a networked I/O module that brings 4 analogue output, 5 digital input and 5 digital output channels onto an Ethernet network, with OPC UA Server and Client, MQTT Client and RESTful API protocols available. The three protocols can run at the same time, so values can be sent to a cloud platform for display and analysis while a field control system reads the same I/O.
The built-in dual-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cabling and the number of switch ports needed. The unit is powered either from an IEEE 802.3af Class 3 PoE network or from a +12 ~ +48 VDC terminal block. Configuration, control and I/O status monitoring are handled through the built-in web user interface, with no additional app required.
On-board logic lets engineers set IF, THEN, ELSE rules for I/O and virtual points, and schedule rules to run at specific times. Scaling converts analogue signals into more readable values. Trigger messages can be written to a CSV file or a line for device tracking, and the module is supported by IoTstar cloud management software.
Applications
- Transmitting I/O values to cloud systems for display, analysis or strategy
- Feeding I/O data to field control systems over OPC UA, MQTT or RESTful API
- Remote monitoring and control of analogue outputs and digital I/O on Ethernet networks
- Daisy-chained Ethernet I/O installations where reduced cabling is required
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 5 |
| Digital outputs: | 5 |
| Analog outputs: | 4 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Output | |
| Channels | 4 |
| Type | Voltage, Current |
| Range | +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 5 |
| Type | Dry Contact, Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 ~ +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
| Channels | 5 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 8.1 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

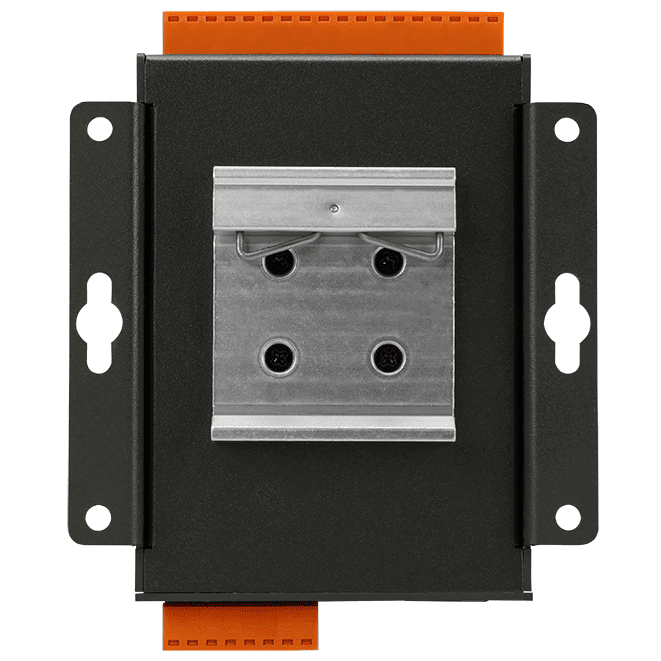

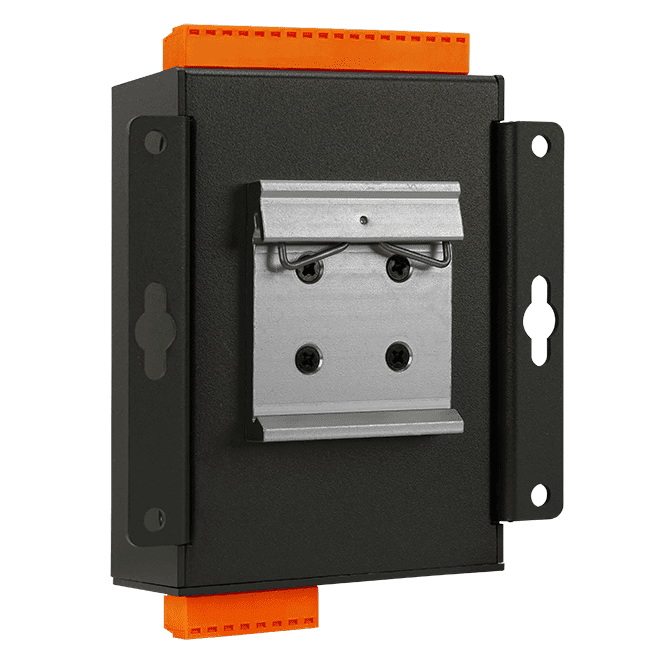

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
