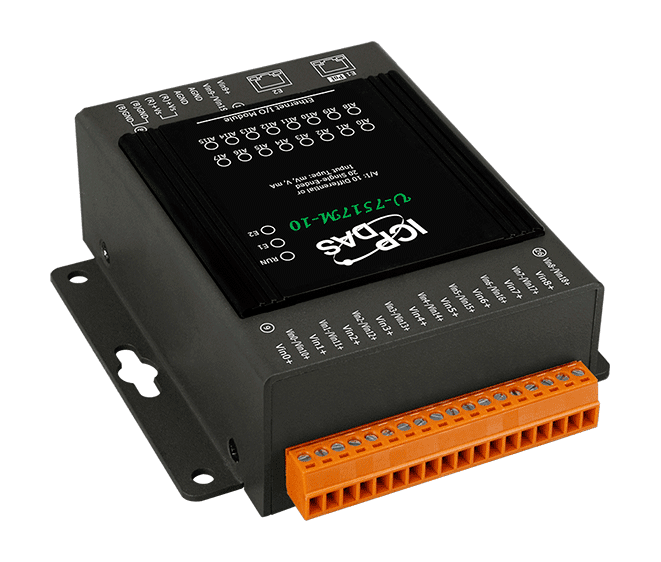

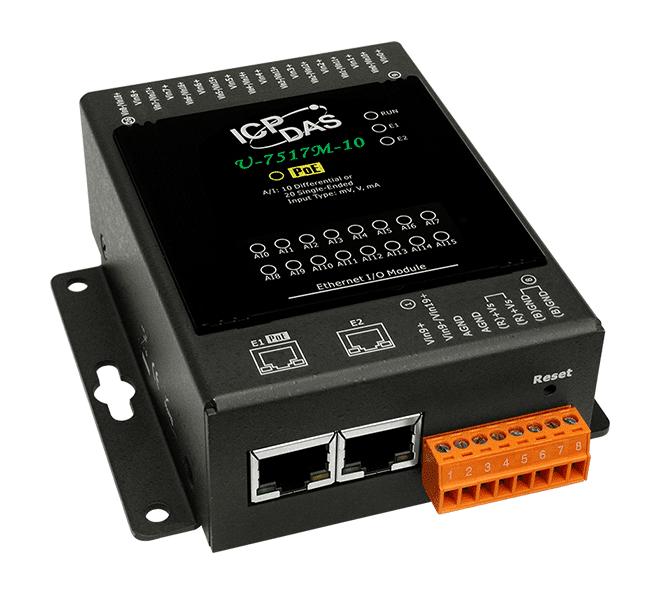

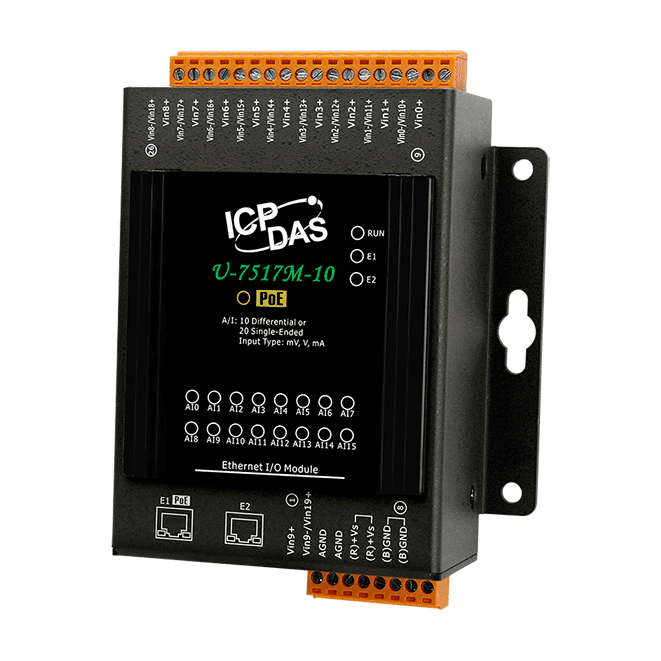

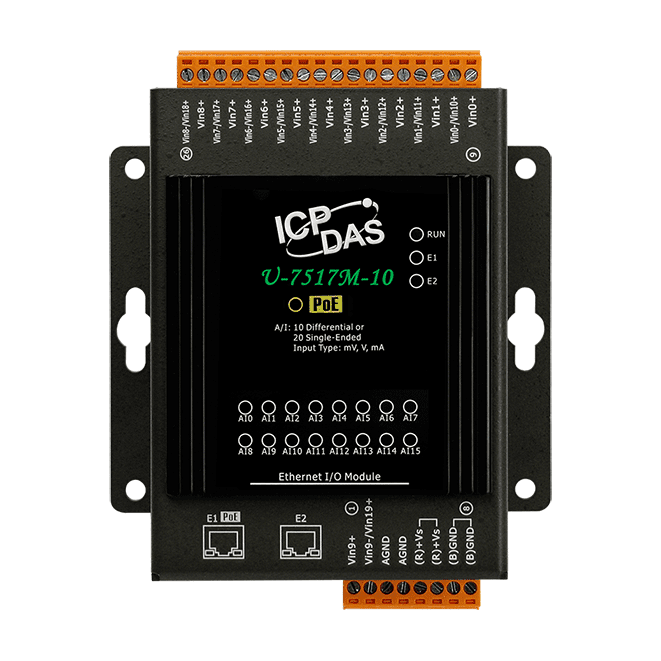

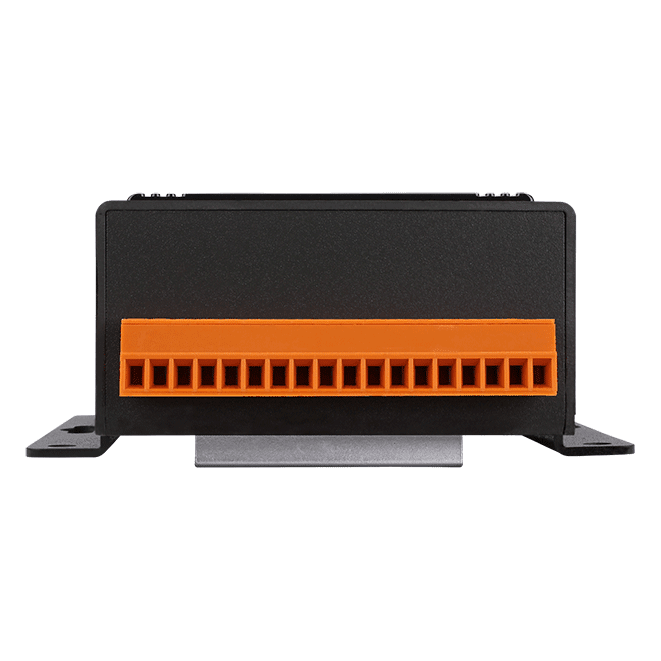

U-7517M-10 OPC UA I/O Module, 10/20-ch Analog Input with PoE
OPC UA I/O module with 10 differential or 20 single-ended analog inputs, a dual-port Ethernet switch for daisy-chain wiring and IEEE 802.3af PoE. Supports OPC UA, MQTT and RESTful API.
- OPC UA Server/Client, MQTT Client and RESTful API (HTTP/HTTPS) running simultaneously
- 10/20 analogue input channels, software selectable as differential or single-ended
- 16-bit resolution with voltage and current ranges, including 4 to 20 mA with open wire detection
- Built-in dual-port 10/100 Base-TX switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE, with a +12 ~ +48 VDC terminal block as alternative supply
- Scaling, IF/THEN/ELSE logic rules and schedule function for local action
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "U-7517M-10 OPC UA I/O Module, 10/20-ch Analog Input with PoE"
U-7517M-10 CR is an OPC UA I/O module for collecting voltage and current signals and passing them to cloud platforms or field control systems. Its 16-bit analog inputs can be set in software to 10 differential or 20 single-ended channels, with ranges selected by jumper from ±150 mV up to 4 to 20 mA.
The built-in dual-port switch lets modules be daisy-chained, which reduces cabling and the number of switch ports needed. Power can be taken from a PoE network under IEEE 802.3af (Class 3), or from a +12 ~ +48 VDC terminal block, so one cable can carry both data and power.
Communication runs over OPC UA Server/Client, MQTT Client and RESTful API, and these can operate at the same time. Scaling, IF/THEN/ELSE rules, scheduled actions and I/O trigger messages are configured through the built-in web interface, with no additional app needed.
Applications
- Sending analogue measurements to cloud systems for display, analysis or strategy
- Feeding analogue readings into field control systems over OPC UA or MQTT
- Local rule-based control of I/O and virtual points
- Scheduled execution of control rules at set times
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Analog inputs: | 10/20 |
| Ports: | 2 |
| PoE: | IEEE 802.3af (Class 3) |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 10 differential or 20 single-ended (Note1), software selectable |
| Type | Voltage, Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 samples/second (Total) Fast Mode: 50 samples/second (Total) |
| Input Impedance | Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended) Current: 125 Ω |
| Common Mode Rejection | 86 dB (min.) |
| Normal Mode Rejection | 100 dB |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | Differential: 240 Vrms Single-ended: 150 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Ethernet | |

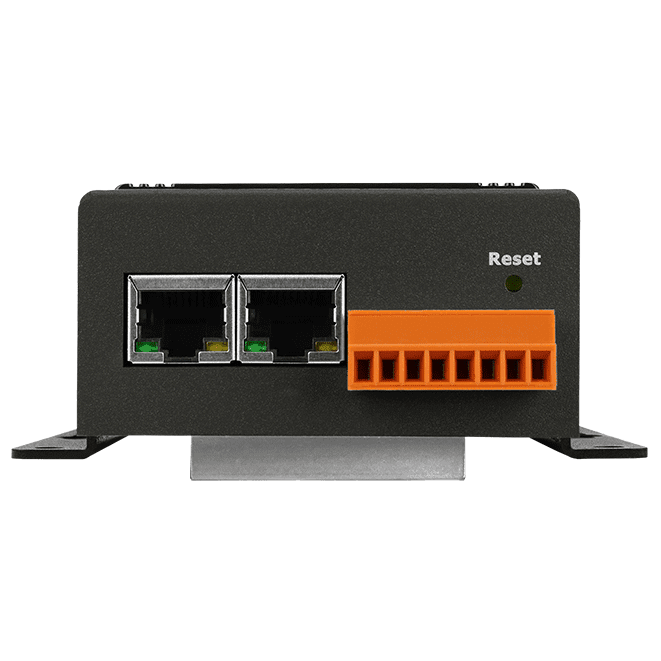

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.5 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

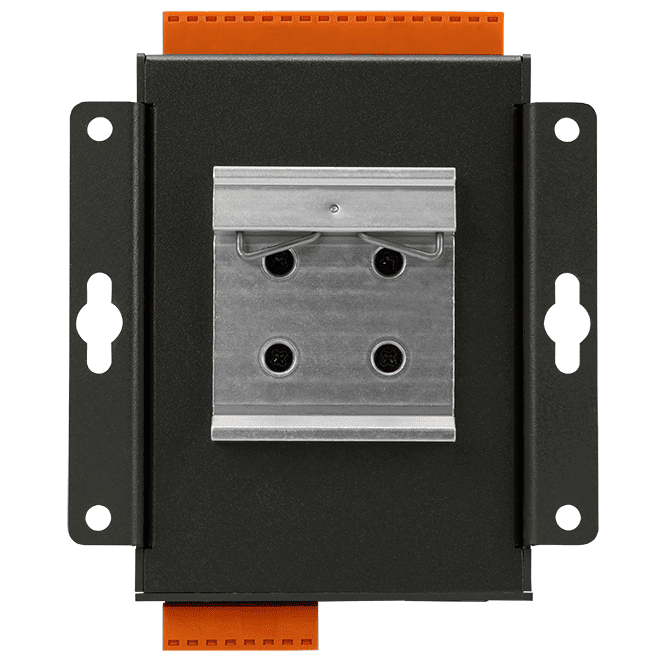

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
