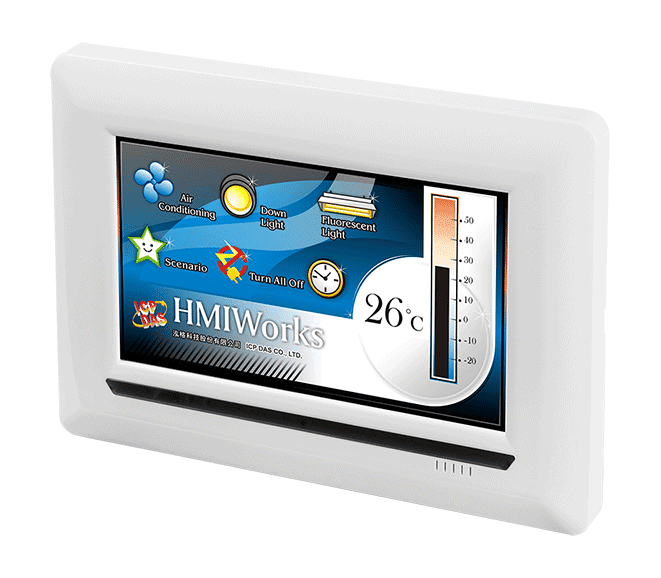

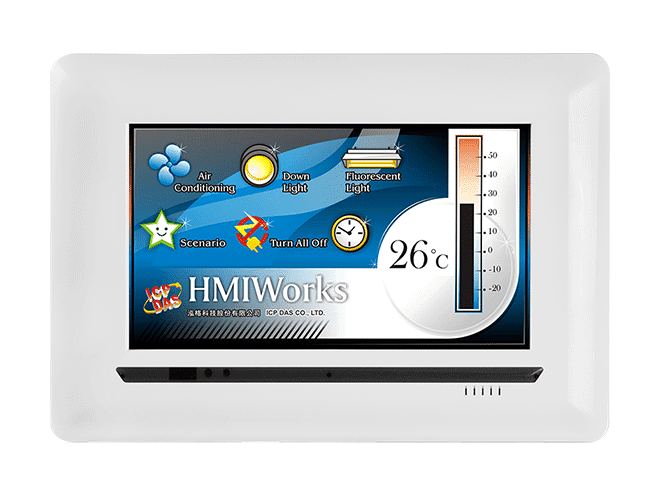

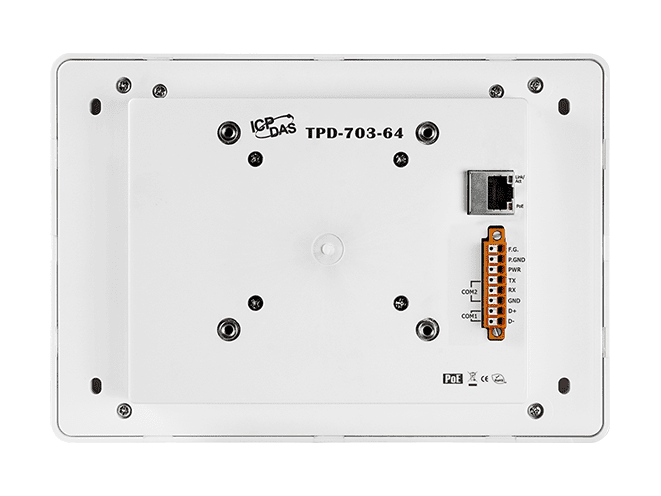

TPD-703-64 7-inch Touch HMI Device with PoE, RS-485 and RS-232
TPD-703-64 is a 7-inch colour touch HMI with 64 MB SDRAM and 64 MB Flash, PoE, an RTC and RS-485/RS-232 serial ports, aimed at building and home automation control panels.
- 7-inch 800 x 480 TFT colour touch screen with 65535 colours and 400 cd/m2 brightness
- 64 MB SDRAM and 64 MB Flash storage on a 32-bit RISC CPU
- Power over Ethernet (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
- 1 x RS-485 (with Self-Tuner) and 1 x RS-232 (3-pin), both non-isolated
- Ethernet RJ-45 port, 10/100 Base-TX
- Real time clock, buzzer, rotary switch, reset button and 2 status LEDs
3 719,08 kr per stk.
| 1–9 stk. | 3 719,08 kr | |
|---|---|---|
| 10–30 stk. | 3 604,81 kr | −3 % |
| 31+ stk. | 3 532,09 kr | −5 % |
Produktinformasjon "TPD-703-64 7-inch Touch HMI Device with PoE, RS-485 and RS-232"
The TPD-703-64 is a 7-inch touch HMI for building and home automation, built around an 800 x 480 TFT colour touch screen. It can replace mechanical switches with an intelligent control pad that drives user-defined picture frames and works alongside a range of I/O modules.
This variant provides 64 MB SDRAM and 64 MB Flash, a 32-bit RISC CPU, a real time clock, and one RS-485 port (with Self-Tuner) and one 3-pin RS-232 port, both non-isolated. Ethernet is a 10/100 Base-TX RJ-45 port, and the unit can be powered over Ethernet to IEEE 802.3af Class 1 or from a +12 ~ 48 VDC terminal block.
For programming, HMIWorks supports Ladder Designer for PLC users and a C language environment for IT users, and the Modbus TCP and Modbus RTU protocols are supported, along with custom communication protocols written in C. The unit is wall mounted, with an IP40 front panel rating and an operating range of -10 ~ +60 °C.
Applications
- Building automation control panels
- Home automation touch control pads
- Replacing mechanical switches with intelligent control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 Ethernet, 2 serial |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Isolation: | Non-isolated (serial ports) |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
Spesifikasjoner
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | 4-wire, analog resistive; Light Transmission: 80% |
| LED Indicators | |
| Status | 2 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) ; Non-isolation 1 x RS-232 (3-pin) ; Non-isolation |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
