TPD-433-H 4.3-inch Touch HMI Device with PoE Ethernet, RS-485 and RTC
4.3-inch colour touch HMI with PoE Ethernet, RS-485 and a real-time clock, designed for wall-mounting in a US outlet box. Supports Modbus TCP and Modbus RTU.
- 4.3-inch high-resolution TFT colour touch screen, 480 x 272 pixels, 65535 colours
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power

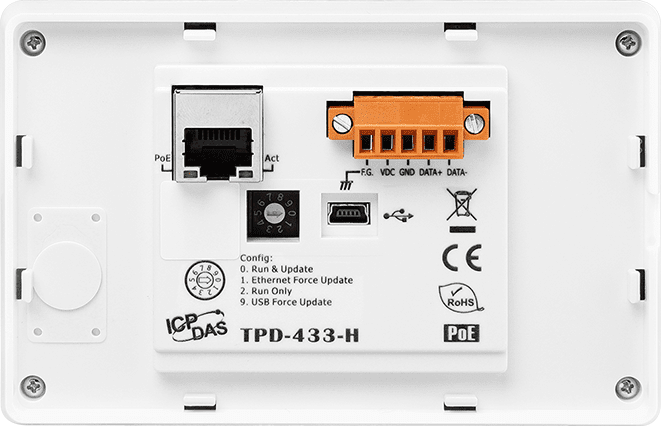

- 1 x RS-485 port with Self-Tuner, plus RJ-45 10/100 Base-TX Ethernet
- Modbus TCP and Modbus RTU protocol support, plus custom protocols via C language
- Free HMIWorks development tool with GUI design, Ladder Designer and C programming
- Real-time clock, buzzer, rotary switch and reset button
2 514,02 kr per stk.
| 1–9 stk. | 2 514,02 kr | |
|---|---|---|
| 10–30 stk. | 2 441,30 kr | −3 % |
| 31+ stk. | 2 389,36 kr | −5 % |
Produktinformasjon "TPD-433-H 4.3-inch Touch HMI Device with PoE Ethernet, RS-485 and RTC"

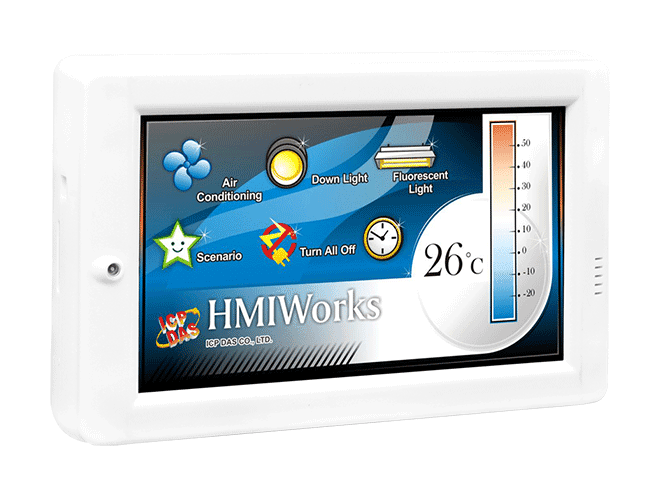

The TPD-433-H CR is a compact 4.3-inch touch HMI with a 480 x 272 TFT colour display, intended for operator control at the wall. It replaces mechanical switches with a programmable touch panel that can be powered over Ethernet or from a 12 to 48 VDC terminal block.
Programming is offered through the free HMIWorks tool, with Ladder Designer for PLC-oriented engineers and C language support for custom applications and custom communication protocols. Built-in Modbus TCP and Modbus RTU support, together with an RS-485 port that includes a Self-Tuner, allows integration with existing field devices.
This ordering code is supplied for installation in an outlet box in the United States. It features a real-time clock, buzzer, rotary switch and reset button, and is rated for an operating temperature of -20 ~ +50 °C.
Applications
- Upgrading mechanical switches to intelligent wall-mounted control pads
- Operator panels for machine and building control at the wall
- Local control with Modbus RTU or Modbus TCP connected devices
| Product type: | HMI |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 x RS-485, 1 x RJ-45 |
| PoE: | IEEE 802.3af |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall-mount |
Spesifikasjoner
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 126 mm x 82 mm x 24 mm |
| Installation | Wall Mounting (Suitable for the outlet box in United States) |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
