TPD-280-M3 2.8-inch Touch HMI Device, 1 x RS-485, Black Cover
2.8-inch colour resistive touch HMI with one RS-485 port, Modbus RTU support and +12 to 48 VDC terminal block power, designed for wall mounting.

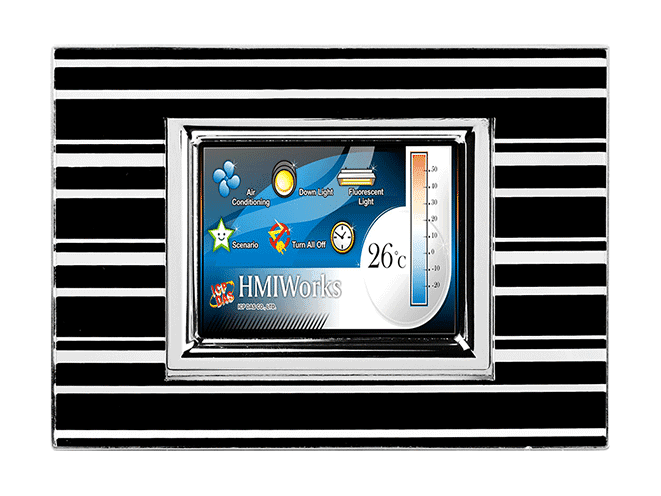

- Resistive 2.8-inch TFT colour touch screen, 240 x 320 resolution, 65535 colours
- Single RS-485 port with Self-Tuner and Modbus RTU protocol
- Free HMIWorks tool with Ladder Designer and C language environment
- Supports custom communication protocol developed in C
- Built-in buzzer, rotary switch and reset button
- Powered from +12 ~ 48 VDC terminal block, 1.5 W consumption
1 911,48 kr per stk.
| 1–9 stk. | 1 911,48 kr | |
|---|---|---|
| 10–30 stk. | 1 859,54 kr | −3 % |
| 31+ stk. | 1 817,99 kr | −5 % |
Produktinformasjon "TPD-280-M3 2.8-inch Touch HMI Device, 1 x RS-485, Black Cover"

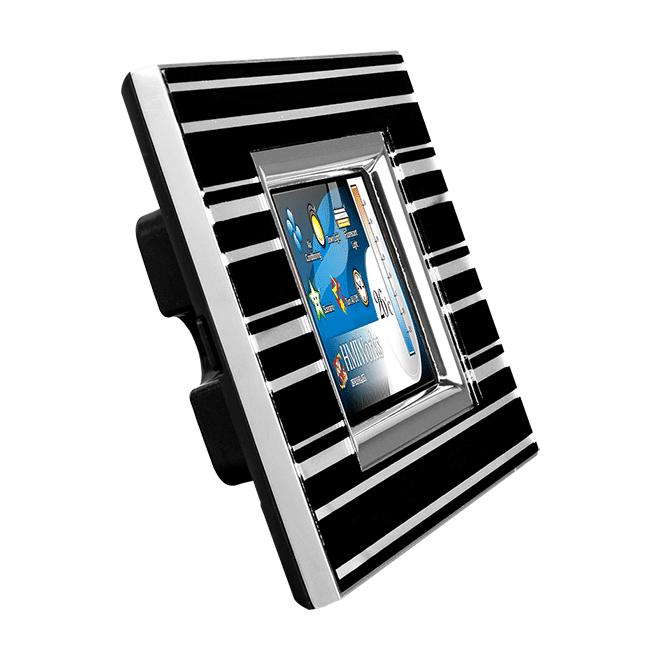

The TPD-280-M3 CR is a compact touch HMI built around a 2.8-inch TFT colour screen with resistive touch. Its wall-mount form factor suits building and home automation projects where mechanical switches need to be replaced with a programmable control panel.
Programming options cover both PLC-style and C-language development. The free HMIWorks tool includes Ladder Designer for engineers coming from PLC programming, while a C language environment serves those who prefer text-based development. The unit also supports a custom communication protocol written in C.
This black-cover variant provides one RS-485 port with Modbus RTU support, powered from a +12 ~ 48 VDC terminal block with 1.5 W consumption. It is rated for operation from -20 ~ +70°C, with front-panel IP40 protection.
Applications
- Building automation control panels
- Home automation control pads
- Upgrading mechanical switches to intelligent touch control
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall-mount |
| Housing: | Black cover |
Spesifikasjoner
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) |
| Power | |
| Consumption | 1.5 W |

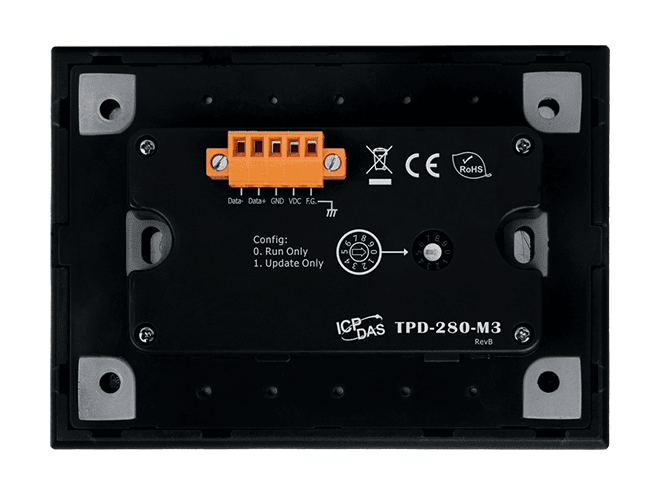

| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
