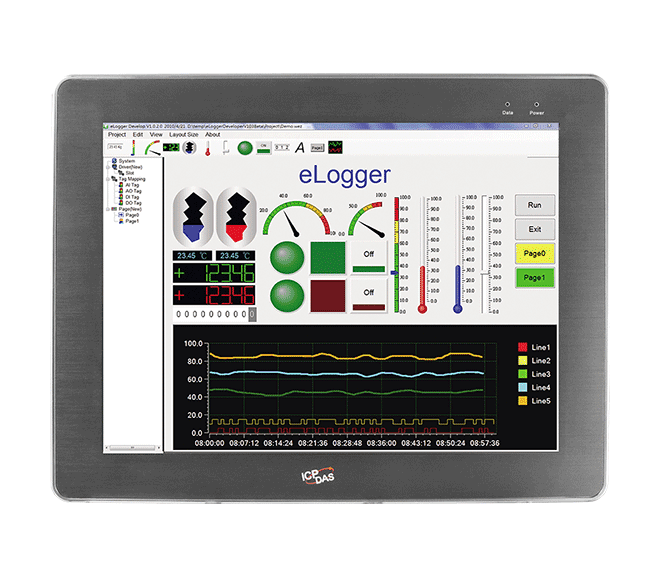

TP-6150 15" Resistive Touch Panel Monitor, 1024 x 768, RS-232/USB
15" 1024 x 768 panel mount touch monitor with 5-wire resistive touch, RS-232 or USB connection, power supply and IP65-rated front panel for -20 ~ +70 °C operation.
- 15" 1024 x 768 TFT LCD with LED backlight, 400 cd/m2 brightness and 50,000 hour backlight life
- 5-wire analog resistive touch panel with 80% light transmission
- IP65-rated front panel for panel mounting
- RS-232 (combo) or USB connection, as ordered
- Wide operating temperature range of -20 ~ +70 °C
- +12 ~ 48 VDC power input with 14.4 W consumption
8 944,50 kr per stk.
| 1–9 stk. | 8 944,50 kr | |
|---|---|---|
| 10–30 stk. | 8 674,40 kr | −3 % |
| 31+ stk. | 8 497,79 kr | −5 % |
Produktinformasjon "TP-6150 15" Resistive Touch Panel Monitor, 1024 x 768, RS-232/USB"
TP-6150 CR is a 15" TFT LCD touch monitor for panel mounting, suited to operator interface work on industrial control systems. It provides 1024 x 768 resolution, a 5-wire analog resistive touch panel and an operating range of -20 ~ +70 °C.
This CR variant is supplied with RS-232 or USB touch connectivity and its power supply. It accepts +12 ~ 48 VDC input, and the front panel is rated IP65, which is useful where the display sits in a dusty or wet environment.
Full-function OSD controls adjust brightness, contrast, clock, phase, horizontal and vertical position and sharpness. The manufacturer names the WP8000, LinPAC and XP-9000 series as compatible PAC controllers, with drivers listed for Windows, Windows IoT, WES, WinCE and Linux.
Applications
- Operator panels and HMI on industrial control systems
- Touch-based control and monitoring with ICP DAS PAC controllers
- Panel-mounted machine control and monitoring installations
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232 or USB |

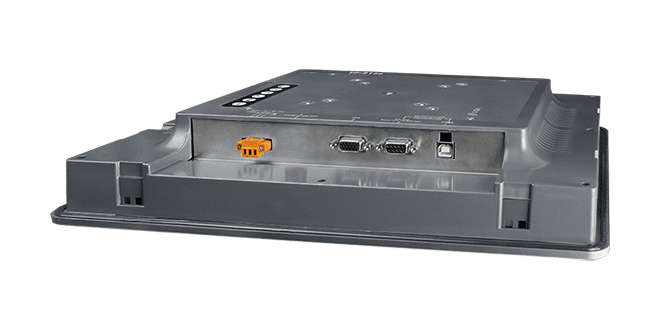

| Ports: | 1 x RS-232 (combo), 1 x USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
Spesifikasjoner
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 15" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 14.4 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 65 (W x L x H) |

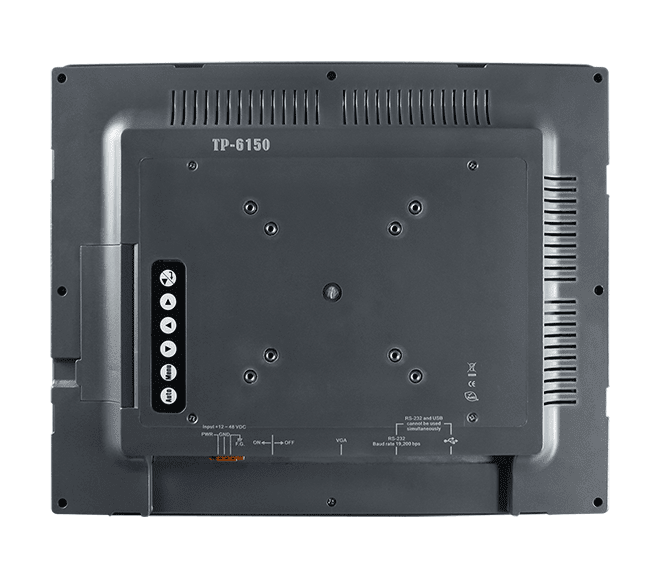

| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 2775 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
