SG-3227 2-Channel IEPE Input Signal Conditioner for Vibration Sensors
Dual-channel IEPE signal conditioner with DIP-switch configuration, selectable excitation current, ×1/×10/×100 gain and LED sensor status indication. Includes two CA-BNC001 BNC adaptors.
- Two independently configured IEPE input channels set by DIP switches
- Selectable excitation current: 2 mA, 4 mA, 6 mA or 10 mA
- Built-in amplification of ×1, ×10 or ×100
- LED sensor status indication: normal, open or short circuit
- Voltage analogue outputs, two channels, ±10 V range
- Wide +18 to +30 VDC input with reverse polarity protection
2 108,87 kr per stk.
| 1–9 stk. | 2 108,87 kr | |
|---|---|---|
| 10–30 stk. | 2 046,53 kr | −3 % |
| 31+ stk. | 2 004,98 kr | −5 % |
Produktinformasjon "SG-3227 2-Channel IEPE Input Signal Conditioner for Vibration Sensors"

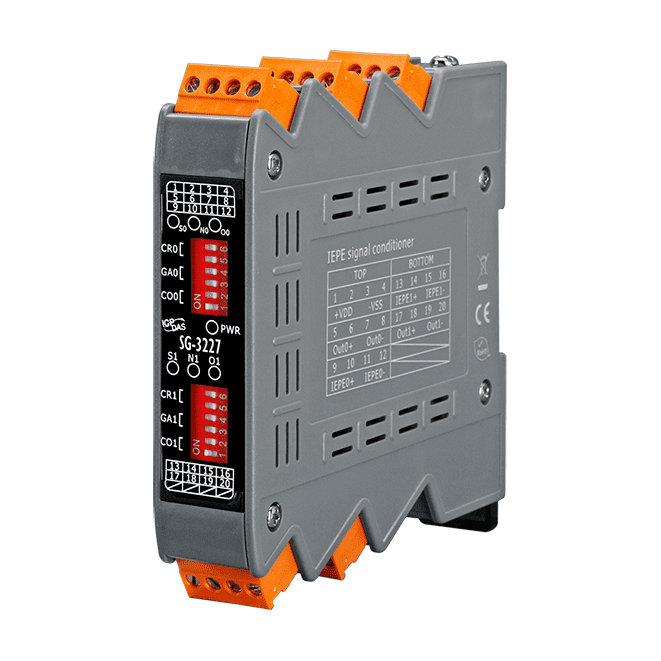

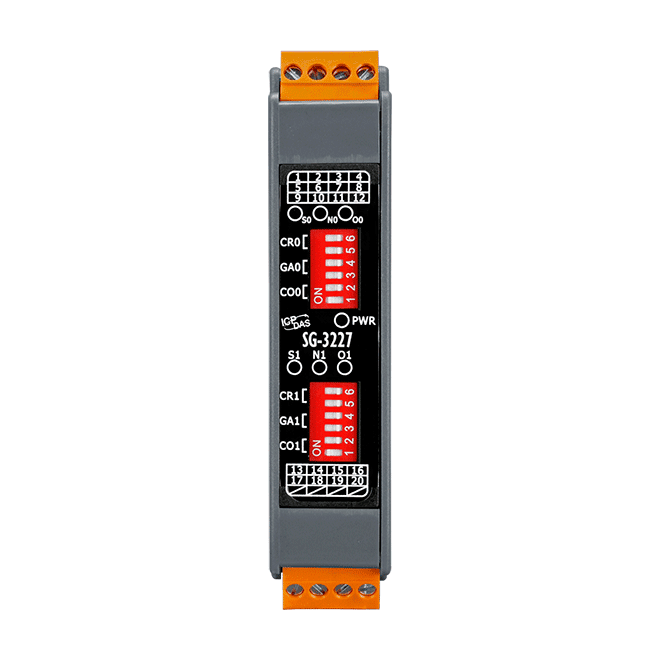

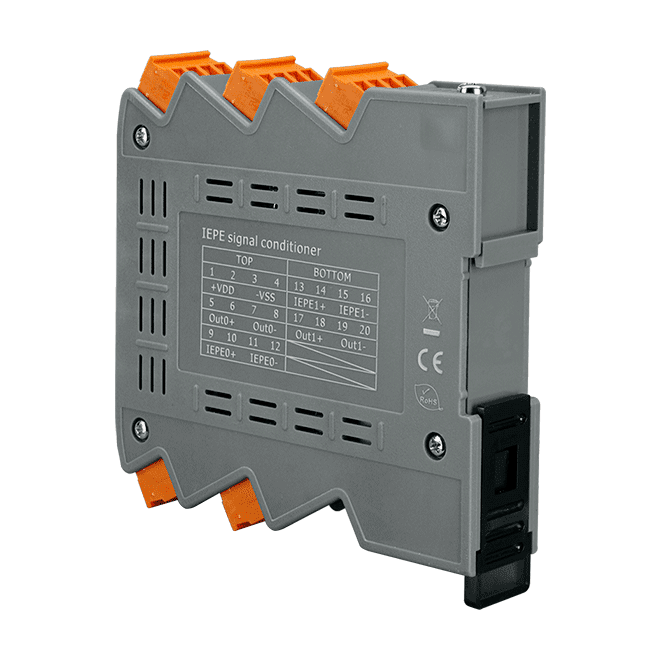

SG-3227 CR is a two-channel signal conditioner for IEPE accelerometers. Each channel is set independently through its own DIP-switch bank, so one module can be matched to different sensors without changing hardware.
Excitation current is selectable at 2 mA, 4 mA, 6 mA or 10 mA, and the built-in amplifier offers ×1, ×10 and ×100 gain to suit different signal levels. LED indicators show whether the sensor is operating normally, open circuit or short circuit, which helps locate wiring faults quickly during commissioning and fieldwork.
The module outputs ±10 V analogue voltage on each channel, takes a +18 to +30 VDC supply with reverse polarity protection, and mounts on DIN-rail or wall. Two CA-BNC001 BNC adaptors are included with each unit.
Applications
- Vibration measurement
- Remote diagnosis
- Testing equipment
| Product type: | Signal conditioner |
|---|---|
| Interface: | IEPE |
| Analog inputs: | 2 |
| Analog outputs: | 2 |
| Power input: | +18 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) | ±1 kV for Power Line |
| LED Indicators | |
| Status | 1 as Power Indicator Yellow : Sensor Open Green : Sensor Normal Red : Sensor Short |
| IEPE | |
| Channels | 2 |
| Sensor Type | Vibration, Temperature(V3 version introduces support) |
| Gain | x1/x10/x100 for AC Coupling |
| Excitation Voltage | 30 VDC* 28 VDC** |
| Excitation Current | 2 mA/4 mA/6 mA/10 mA |
| Cut-off Frequency | •Upper: ‣x1, x10 Gain: 80 kHz ‣x100 Gain: 50 kHz •Lower: ‣AC Coupling (0.1uF): 1.6 Hz ‣AC Coupling (1uF): 0.2 Hz |
| Analog Output | |
| Channels | 2 |
| Type | Voltage |
| Range | ±10 V |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 120 mm x 117 mm (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
