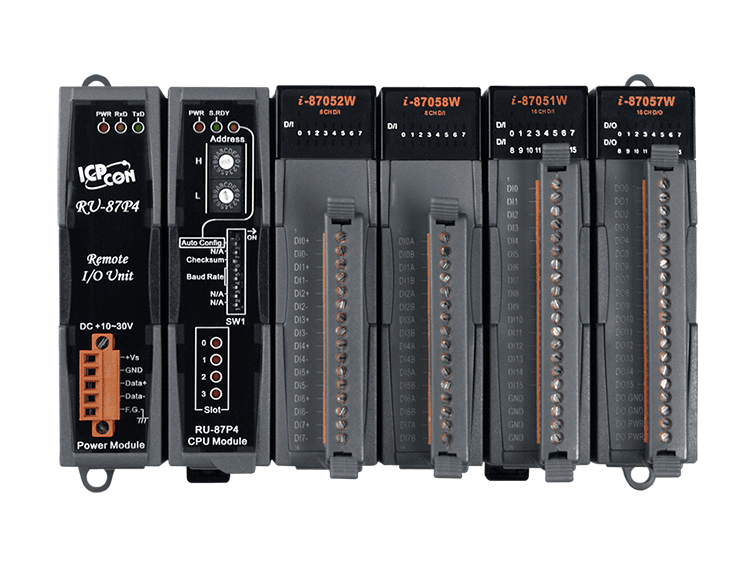

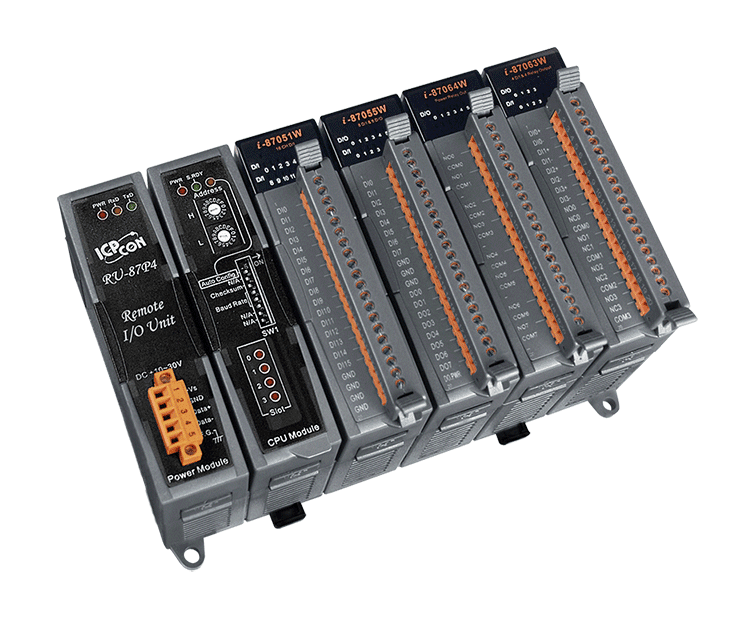

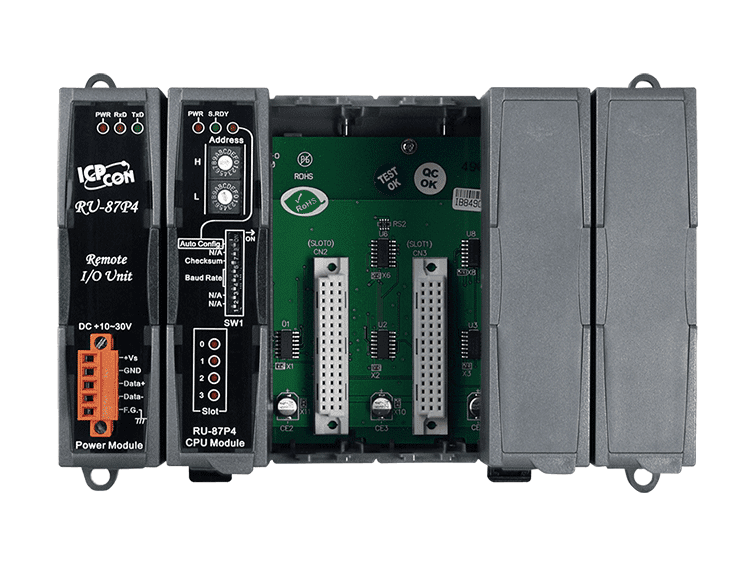

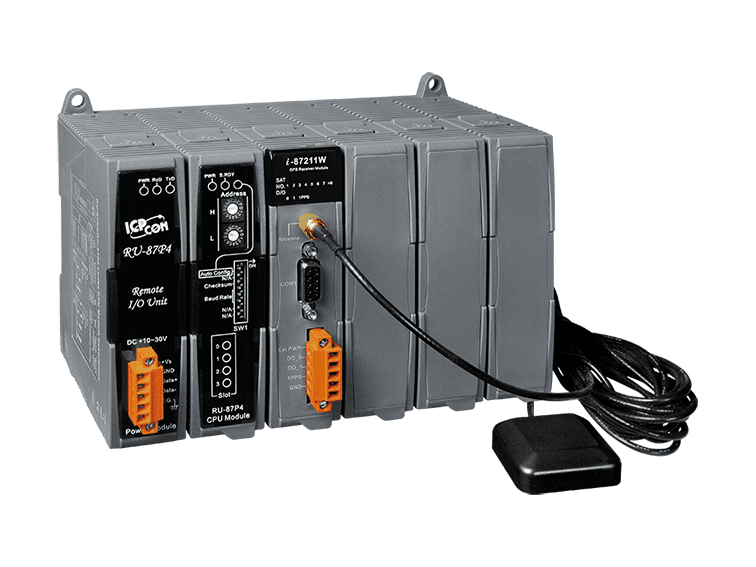

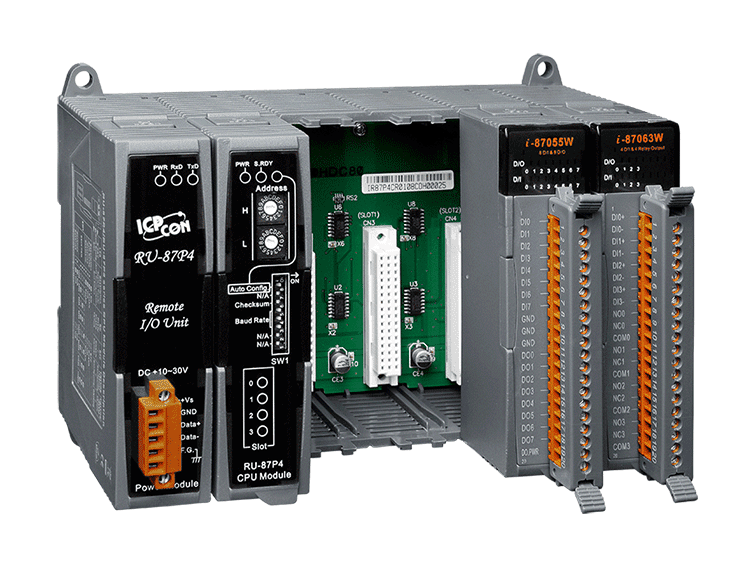

RU-87P4-G RS-485 I/O Expansion Unit, 4-Slot for I-87K Modules
4-slot RS-485 expansion unit using the DCON ASCII protocol to host I-87K series I/O modules on a multi-drop bus. Gray cover, -25 ~ +75 °C operating range.
- One RS-485 port for multi-drop topology with 3000 VDC isolation
- Four slots for I-87K series I/O modules, over 50 modules supported
- DCON protocol (ASCII format) at up to 115200 bps
- Hot swap allowed with automatic configuration
- LED indicators for power, system, auto configuration and slot status
- Rotary and DIP switches for addressing and communication settings
2 565,96 kr per stk.
| 1–9 stk. | 2 565,96 kr | |
|---|---|---|
| 10–30 stk. | 2 493,24 kr | −3 % |
| 31+ stk. | 2 441,30 kr | −5 % |
Produktinformasjon "RU-87P4-G RS-485 I/O Expansion Unit, 4-Slot for I-87K Modules"
RU-87P4-G is a remote intelligent expansion unit that adds four I-87K series I/O module slots to an RS-485 network. Its CPU module communicates over DCON, an ASCII-based protocol, so I/O modules can be placed remotely on a single multi-drop line rather than wired back to a controller individually.
The unit suits monitoring and control installations in harsh, electrically noisy environments. It accepts a 10 ~ 30 VDC supply and operates from -25 °C to +75 °C. Modules can be hot swapped, and automatic configuration, fault and error detection and dual watchdog functions help reduce commissioning and maintenance effort.
Software support includes PACSDK, a LabVIEW driver, an InduSoft driver, a Linux driver and an OPC Server, so modules plugged into the unit can be integrated into a range of software environments.
Applications
- Industrial monitoring and control
- Remote I/O expansion over RS-485
- Harsh and electrically noisy environments
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Main Unit | |
|---|---|
| 64-bit Hardware Serial Number | Yes |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 4 |
| HMI | |
| Rotary Switch | 2 x 16 Position (0 ~ F) |
| DIP Switch | 8-bit for auto configuration, check sum and baud rate |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON (ASCII Format) |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 188 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
