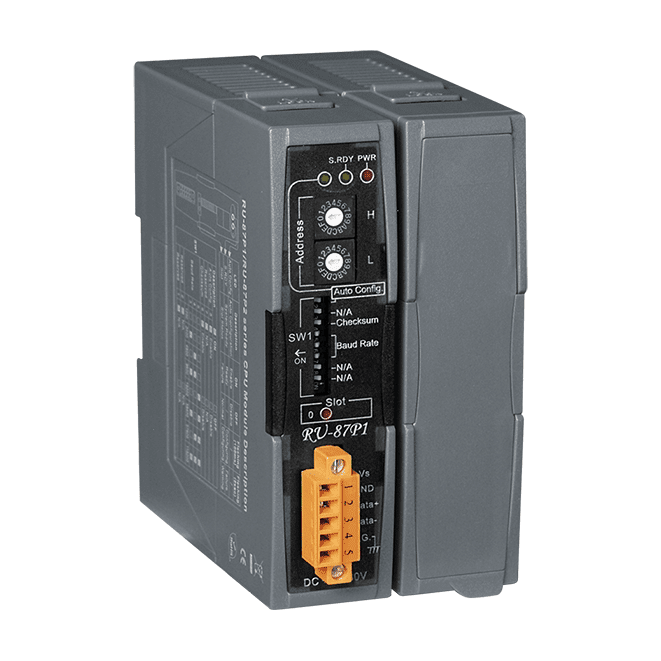

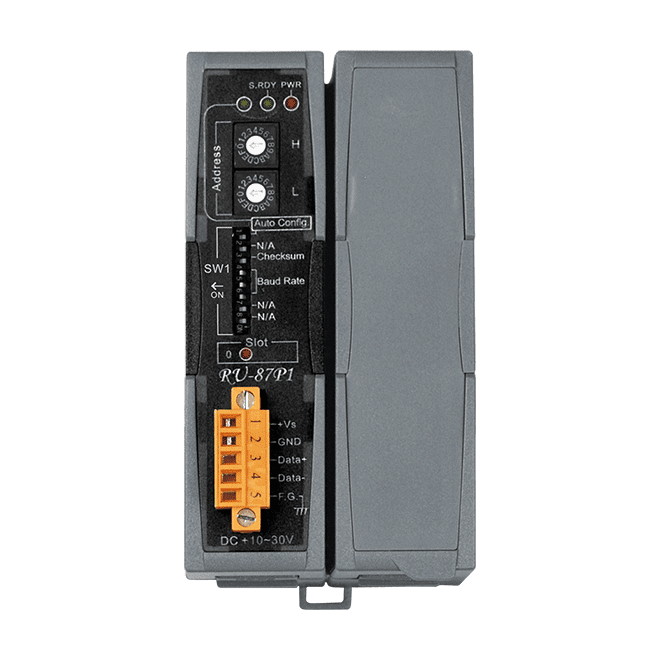

RU-87P1-G 1-Slot RS-485 I/O Expansion Unit, DCON Protocol
Single-slot RS-485 expansion unit with an intelligent CPU module that drives I-87K series I/O modules over the DCON ASCII protocol. Gray cover, RoHS.
- One RS-485 port supporting multi-drop topology, with a maximum baud rate of 115200 bps
- DCON protocol (ASCII format) for communication with the host
- One slot for I-87K series I/O modules, supporting more than 50 module types
- Hot swap allowed and automatic configuration for simpler maintenance
- LED indicators for status and fault detection, plus rotary and DIP switches for setup
- Wide +10 ~ 30 VDC power input and -25 ~ +75 °C operating temperature
2 140,03 kr per stk.
| 1–9 stk. | 2 140,03 kr | |
|---|---|---|
| 10–30 stk. | 2 077,70 kr | −3 % |
| 31+ stk. | 2 036,15 kr | −5 % |
Produktinformasjon "RU-87P1-G 1-Slot RS-485 I/O Expansion Unit, DCON Protocol"

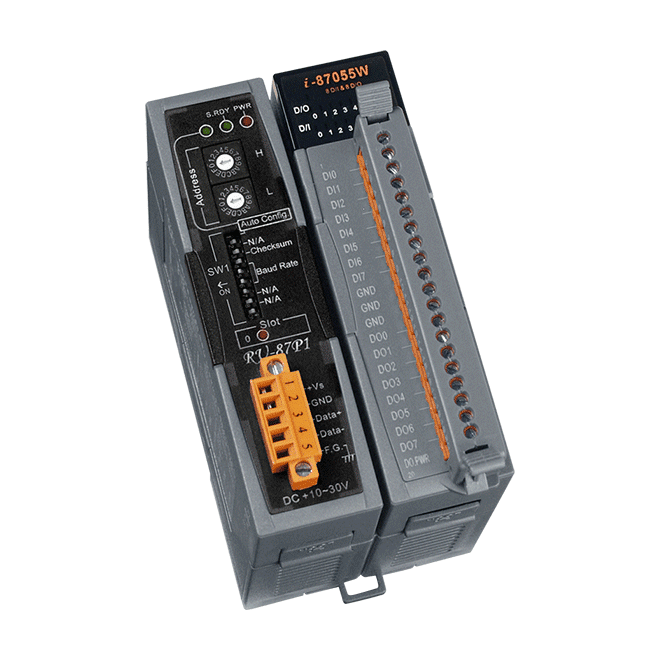

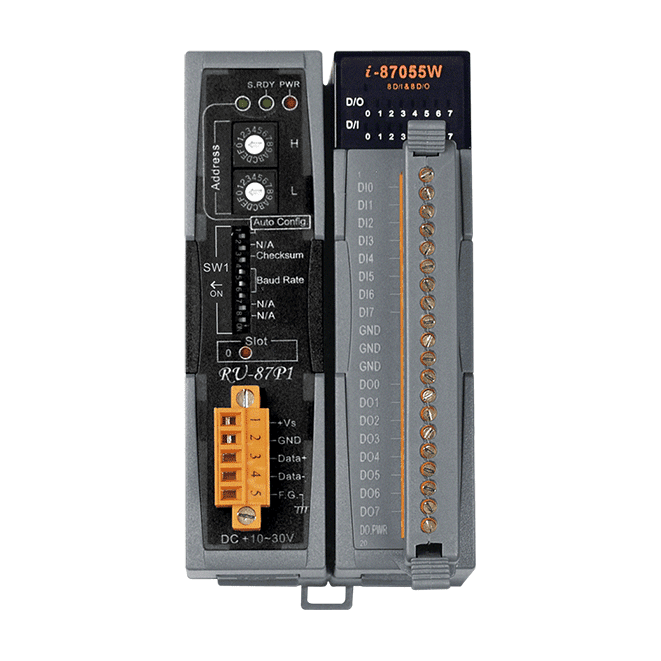

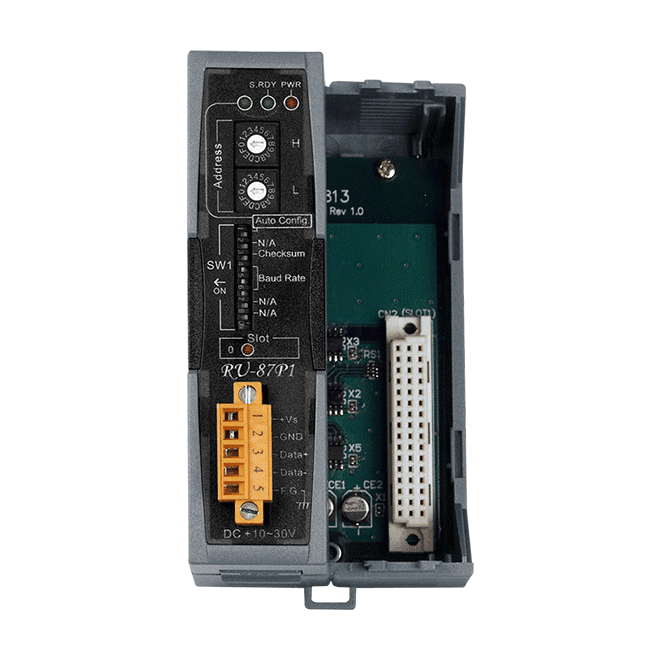

The RU-87P1-G CR extends a remote RS-485 network with one slot for I-87K series I/O modules. Its intelligent CPU module handles the I/O locally and communicates with the host using the DCON protocol, so engineers can add analogue, digital and counter/frequency channels to a multi-drop RS-485 bus.
The unit is aimed at harsh, electrically noisy sites. It accepts a wide +10 ~ 30 VDC supply and is rated for an operating temperature of -25 ~ +75 °C. Hot swapping and automatic configuration simplify installing and replacing I/O modules, while LED indicators and switches help with fault finding and communication setup.
For software integration, the I-87K modules plugged into the unit can be accessed through the PACSDK, LabVIEW driver, InduSoft driver, Linux driver and OPC Server provided by the manufacturer. The gray-cover version is listed under ordering code RU-87P1-G CR.
Applications
- Industrial monitoring and control applications
- Remote I/O expansion over RS-485 networks
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Main Unit | |
|---|---|
| 64-bit Hardware Serial Number | Yes |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 1 |
| HMI | |
| Rotary Switch | 2 x 16 Position (0 ~ F) |
| DIP Switch | 8-bit for auto configuration, check sum and baud rate |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON (ASCII Format) |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
| Dimensions (mm) | 64 x 120 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
