RIO-9830 Redundant Distributed I/O System, 8-slot Modbus TCP Server
Eight-slot redundant remote I/O system with a Modbus TCP server, duplex power and communication modules, and hot-swap support for high-availability monitoring.
- Modbus/TCP server for integration with Ethernet-based supervisory systems
- Eight I/O slots, configurable as 8 single or 4 redundant I/O pairs
- Redundant power, communication and I/O modules for improved fault tolerance
- Hot-swap support for all modules to simplify maintenance
- Automatic module parameter configuration
- Seven-segment display for real-time module operation status
22 407,99 kr per stk.
| 1–9 stk. | 22 407,99 kr | |
|---|---|---|
| 10–30 stk. | 21 743,13 kr | −3 % |
| 31+ stk. | 21 286,04 kr | −5 % |
Produktinformasjon "RIO-9830 Redundant Distributed I/O System, 8-slot Modbus TCP Server"
The RIO-9830 CR is a modular redundant remote I/O system for industrial monitoring where downtime and maintenance effort need to be kept low. Its Modbus TCP server lets it connect to Ethernet-based supervisory systems, and its eight slots accept a mix of input and output modules.
Redundancy runs through the whole unit. Power, communication and I/O can each be duplexed, so the eight slots can be configured as eight single channels or as four redundant pairs. Modules can be hot-swapped without interrupting system operation, and parameters are configured automatically when a module is fitted.

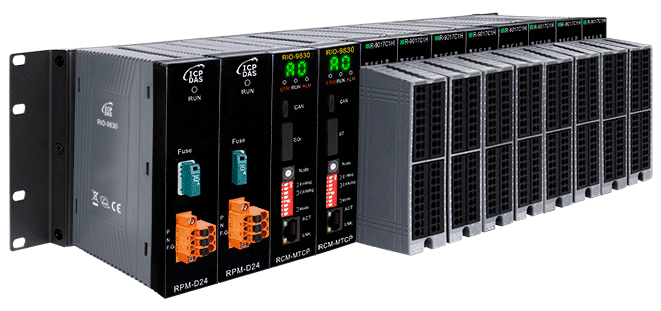

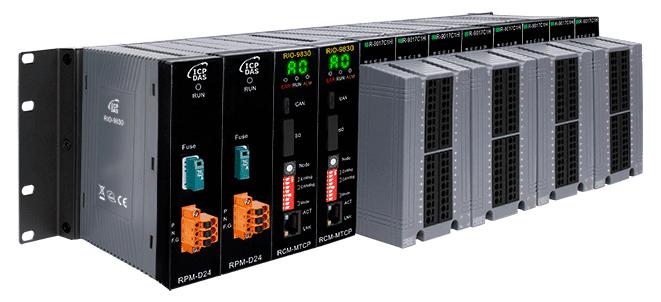

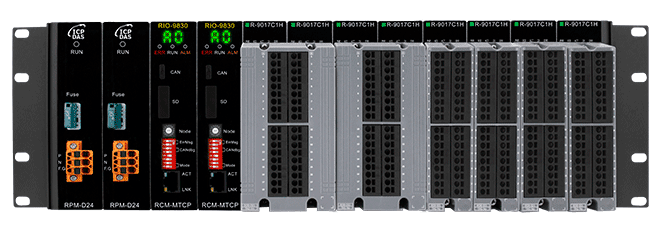

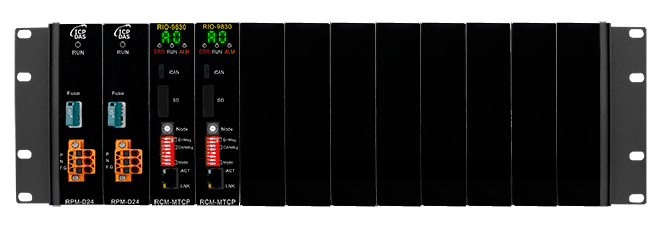

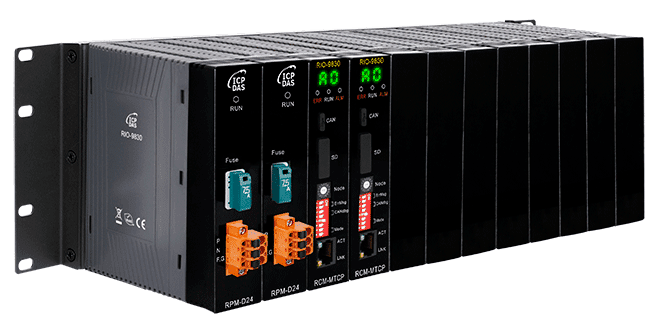

This CR ordering code is supplied as a kit that includes two RPM-D24 power modules and two RCM-MTCP communication modules. Status is shown on a seven-segment display, and abnormal events are recorded to Micro SD with an RTC timestamp for fault diagnosis.
Applications
- Industrial monitoring systems that require high reliability and stable operation
- Installations where modules must be replaced without stopping the system
- Distributed I/O for plant and process applications using Modbus TCP
| Product type: | Redundant remote I/O system |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Power input: | 24 VDC (+/- 10%), redundant |
| Operating temperature: | -25 ~ +70 °C |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| I/O Expansion | |
| Slots | 8 |
| Power | |
| Redundant Power Inputs | Yes |
| Mechanical | |
| Dimensions (mm) | 133 x 396 x 151 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
