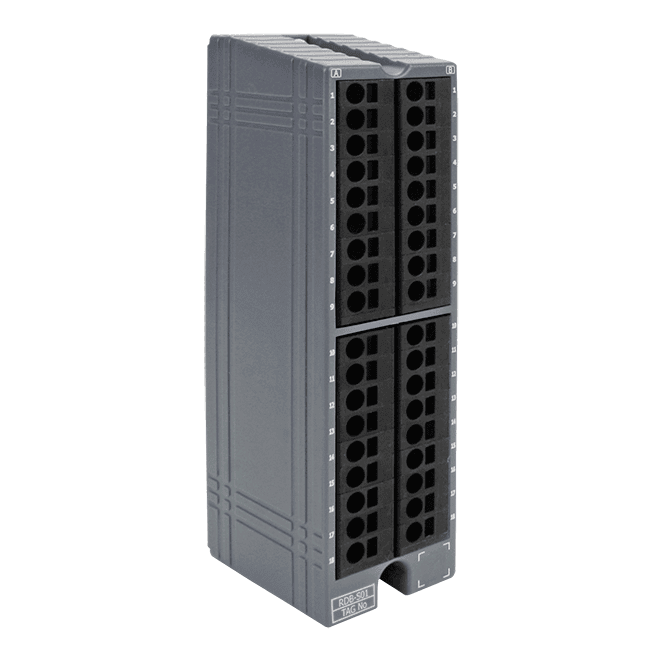

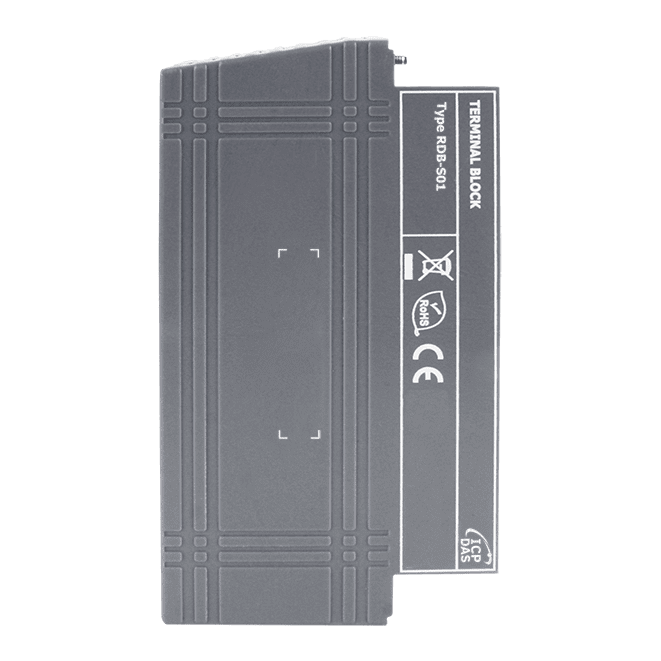

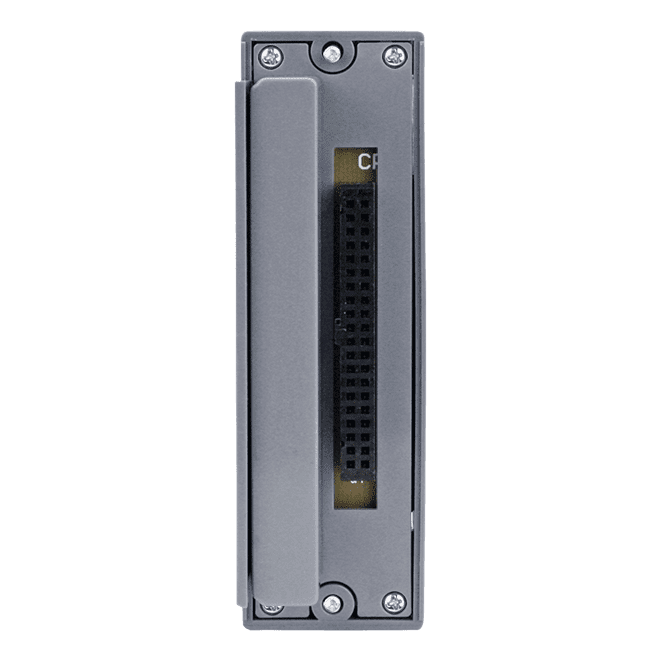

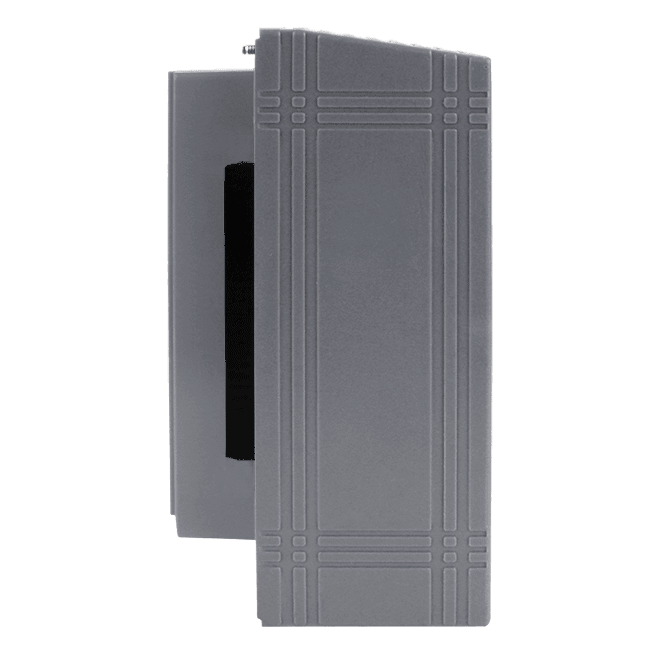

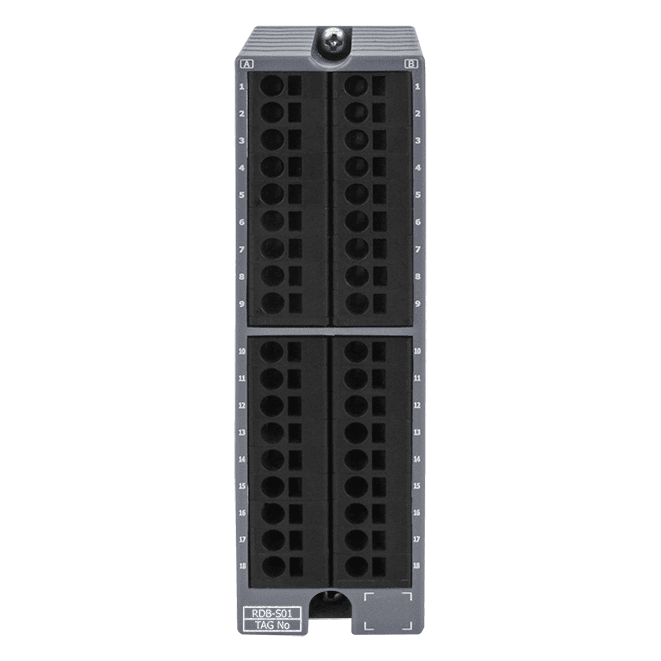

RDB-S01 Single I/O Termination Board, 16-ch Analog Current/Voltage
Spring clamp termination board for a single non-isolated analog current/voltage module, with disconnection detection, for the R-9017C2H.
- Spring clamp terminal wiring for faster installation
- Termination board disconnection detection triggers an alarm if the board separates from the I/O module
- Designed for the R-9017C2H
- 16 analog input channels
- Operating temperature -25 °C ~ +70 °C, humidity 5 ~ 95% RH non-condensing
- Certified CE, UKCA, RoHS and WEEE
1 589,44 kr per stk.
| 1–9 stk. | 1 589,44 kr | |
|---|---|---|
| 10–30 stk. | 1 547,89 kr | −3 % |
| 31+ stk. | 1 516,72 kr | −5 % |
Produktinformasjon "RDB-S01 Single I/O Termination Board, 16-ch Analog Current/Voltage"
RDB-S01 CR is a single I/O termination board for the R-9017C2H, built for wiring non-isolated analog current and voltage modules. Its spring clamp terminals make field wiring quicker, which helps reduce installation time on new or retrofitted systems.
The board includes termination board disconnection detection, so a fault is flagged if the board separates from the I/O module. This supports timely alarms and helps protect wiring signal integrity in installations where reliability and stability are critical.
- Suited to high-reliability industrial environments
- Compact footprint at 32 x 115 x 60 mm
Applications
- Industrial systems requiring high wiring reliability and stability
- Analog current and voltage signal termination for the R-9017C2H
| Product type: | Termination board |
|---|---|
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +70 °C |
Spesifikasjoner
| Analog Input | |
|---|---|
| Channels | 16 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
