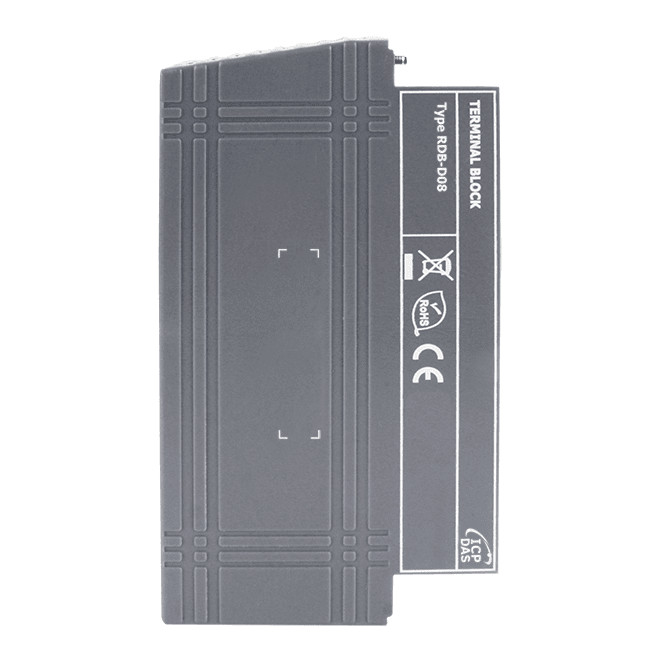

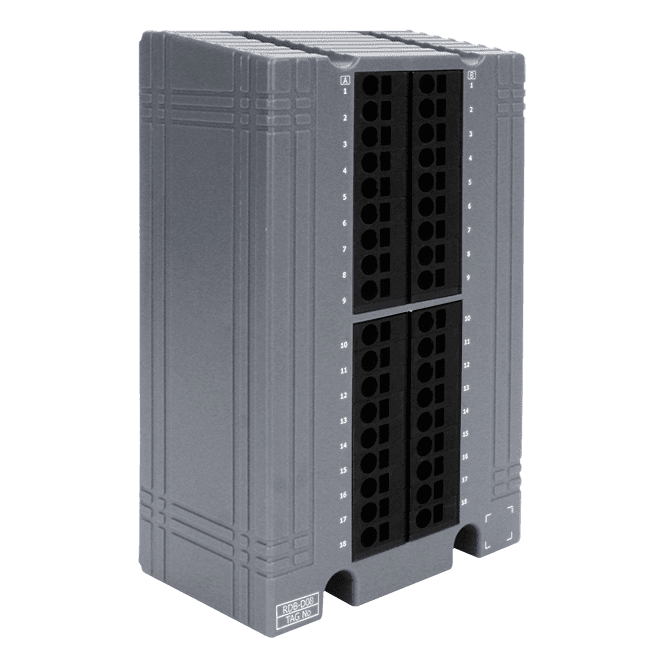

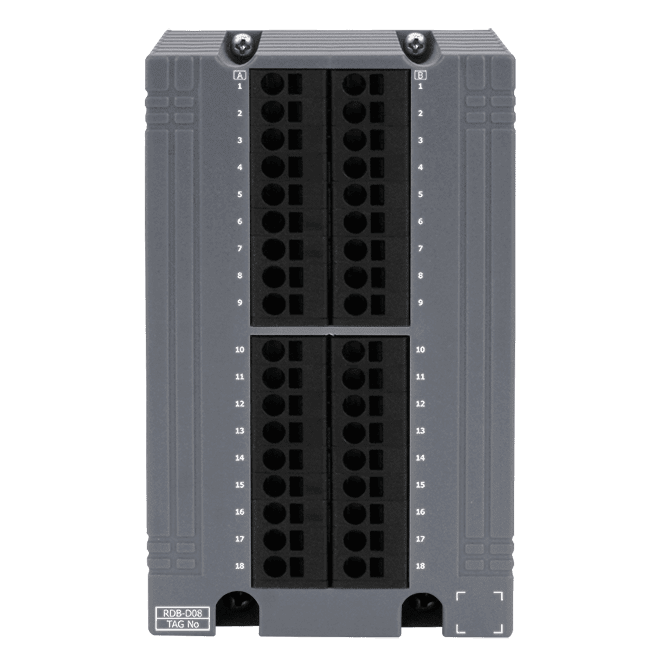

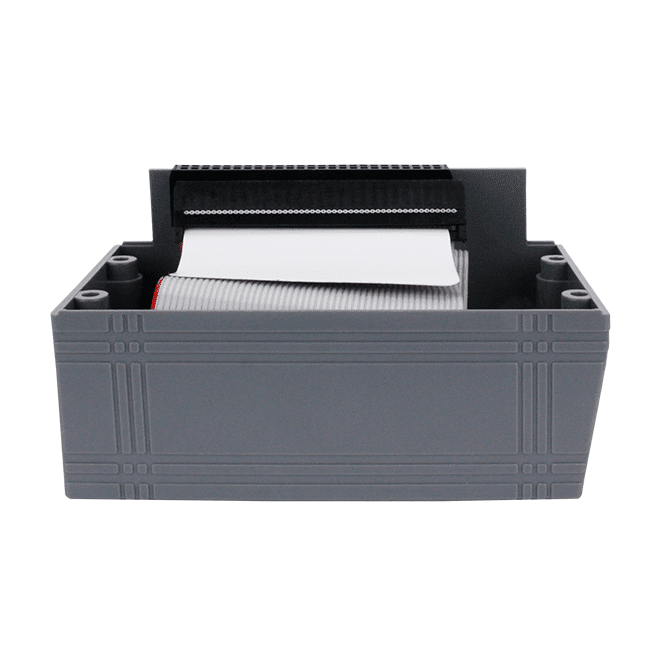

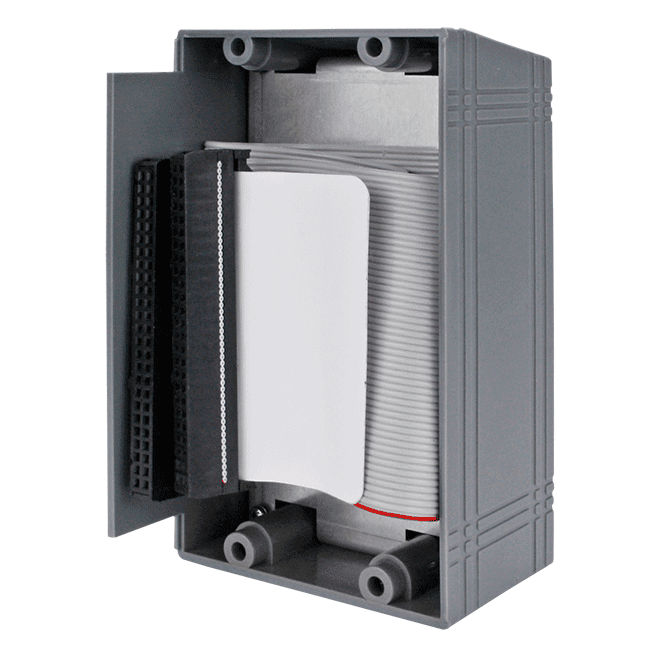

RDB-D08 Duplex I/O Termination Board, Spring Clamp, for R-9040
Spring clamp termination board for the R-9040 duplex digital input module, with 32 channels and terminal board disconnection detection to flag wiring faults.
- Spring clamp terminals to simplify wiring and reduce installation time
- Terminal board disconnection detection triggers an alarm if the board separates from the I/O module
- Designed for the R-9040 duplex digital input module
- 32 digital input channels
- Operating temperature range of -25 °C to 70 °C
- Humidity tolerance of 5 to 95% RH, non-condensing
1 682,94 kr per stk.
| 1–9 stk. | 1 682,94 kr | |
|---|---|---|
| 10–30 stk. | 1 630,99 kr | −3 % |
| 31+ stk. | 1 599,83 kr | −5 % |
Produktinformasjon "RDB-D08 Duplex I/O Termination Board, Spring Clamp, for R-9040"
RDB-D08 CR is a duplex I/O termination board for the R-9040 digital input module. Its spring clamp terminals speed up field wiring and shorten system installation time.
The board includes terminal board disconnection detection, so an alarm is raised promptly if it becomes separated from the I/O module. This helps protect signal wiring integrity and reduces the risk of system faults in environments that demand high reliability and stability.
The RDB-D08 CR is the RoHS-compliant ordering variant and is listed with CE, UKCA, RoHS and WEEE certification.
Applications
- Field wiring of duplex digital input signals to the R-9040 module
- Industrial systems requiring high reliability and stable signal wiring
| Product type: | Termination board |
|---|---|
| Interface: | Spring clamp terminal |
| Digital inputs: | 32 |
| Operating temperature: | -25 ~ +70 °C |
Spesifikasjoner
| Digital Input | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
