RDB-D03 Duplex I/O Termination Board for R-9015, Spring Clamp Terminals
Spring clamp termination board for duplex RTD modules, with disconnection detection that raises an alarm if it separates from the I/O module. Supports the R-9015.
- Spring clamp terminals simplify wiring and shorten installation time
- Terminal board disconnection detection triggers an alarm when the board separates from the I/O module
- Supports the R-9015 duplex RTD module
- 12 analog input channels
- Operating temperature -25 ~ 70 °C, humidity 5 ~ 95% RH non-condensing
- Compact dimensions of 65 x 115 x 60 mm
1 682,94 kr per stk.
| 1–9 stk. | 1 682,94 kr | |
|---|---|---|
| 10–30 stk. | 1 630,99 kr | −3 % |
| 31+ stk. | 1 599,83 kr | −5 % |
Produktinformasjon "RDB-D03 Duplex I/O Termination Board for R-9015, Spring Clamp Terminals"

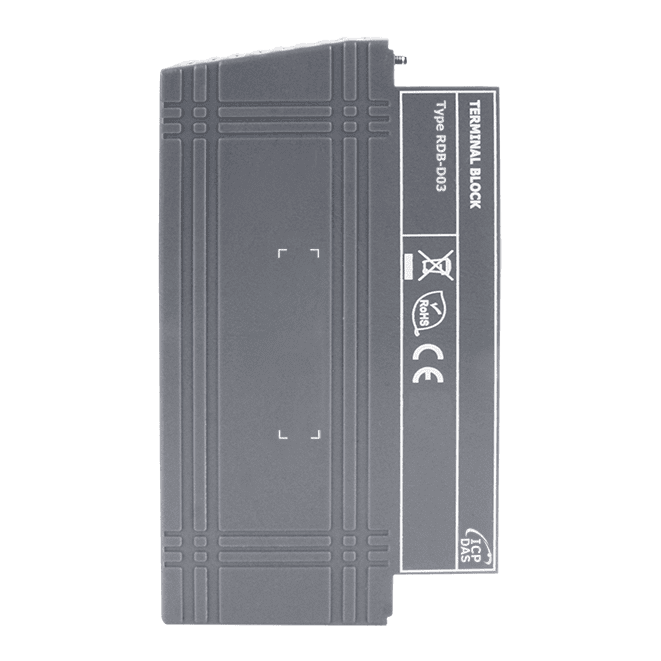

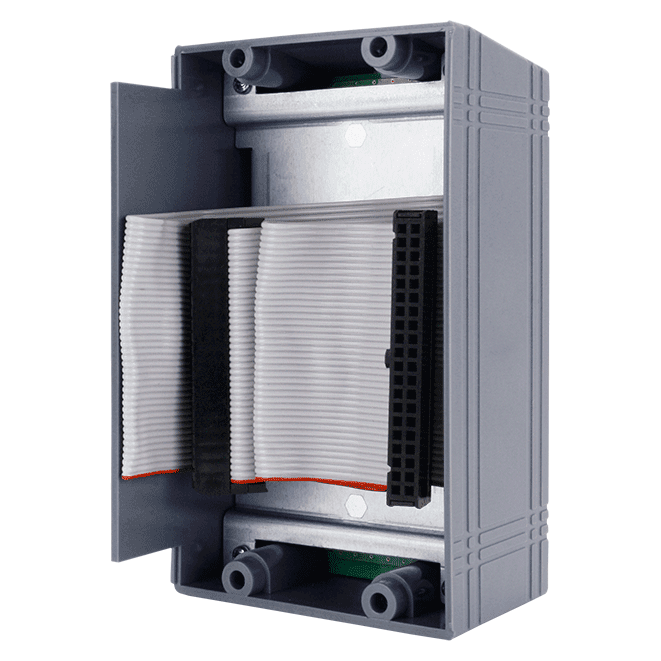

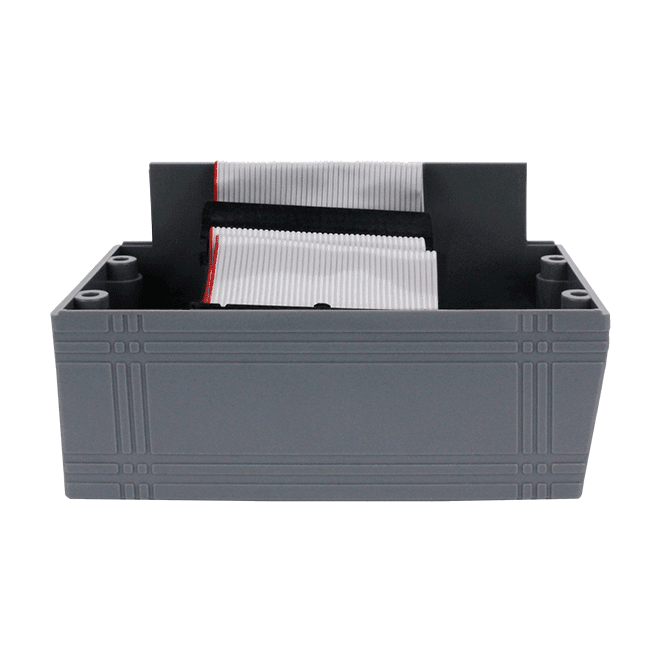

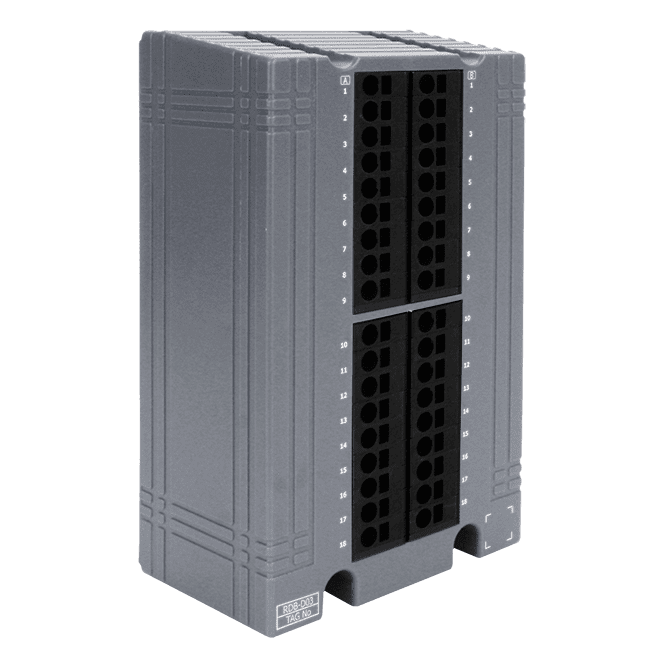

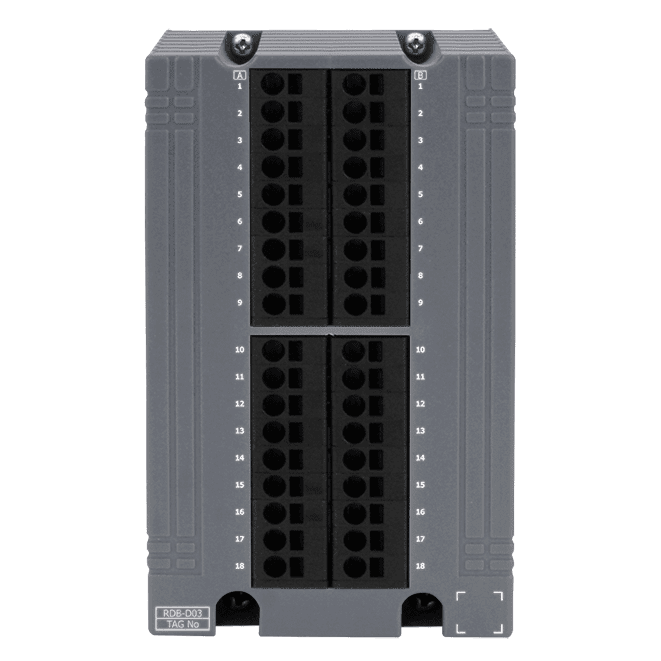

RDB-D03 CR is a termination board for duplex RTD modules. Its spring clamp terminals simplify field wiring and reduce the time needed to install a system.
The board includes terminal board disconnection detection, so an alarm is triggered promptly if it becomes disconnected from the I/O module. This helps protect the integrity of the wired signals and lowers the risk of system failure in demanding industrial environments where high reliability and stability are required.
Designed for use with the R-9015, the board provides 12 analog input channels in a compact 65 x 115 x 60 mm housing, rated for operation from -25 to 70 °C.
Applications
- Duplex RTD signal termination in industrial automation systems
- Industrial environments requiring high reliability and stable wiring of signals
| Product type: | Termination board |
|---|---|
| Analog inputs: | 12 |
| Operating temperature: | -25 ~ 70 °C |
Spesifikasjoner
| Analog Input | |
|---|---|
| Channels | 12 |
| Mechanical | |
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
