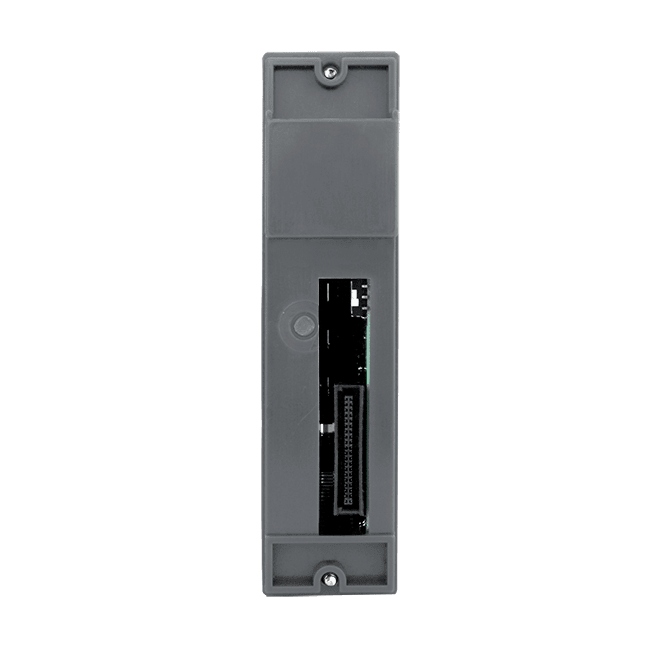

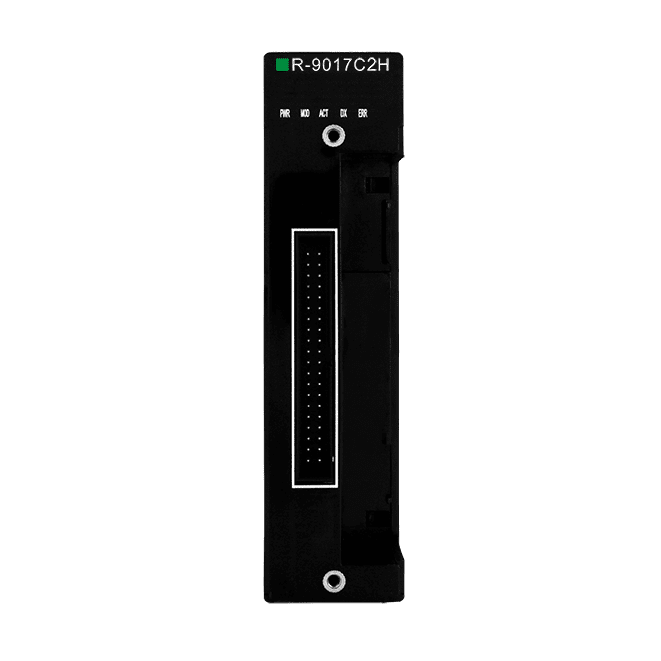

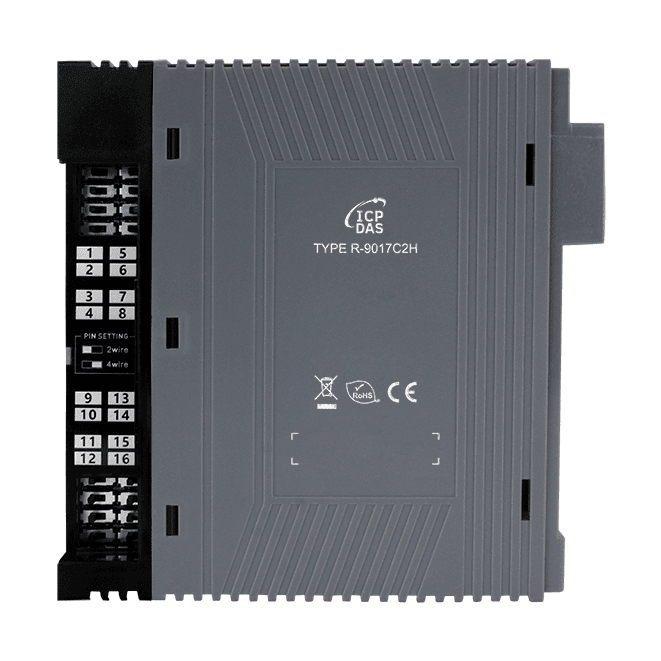

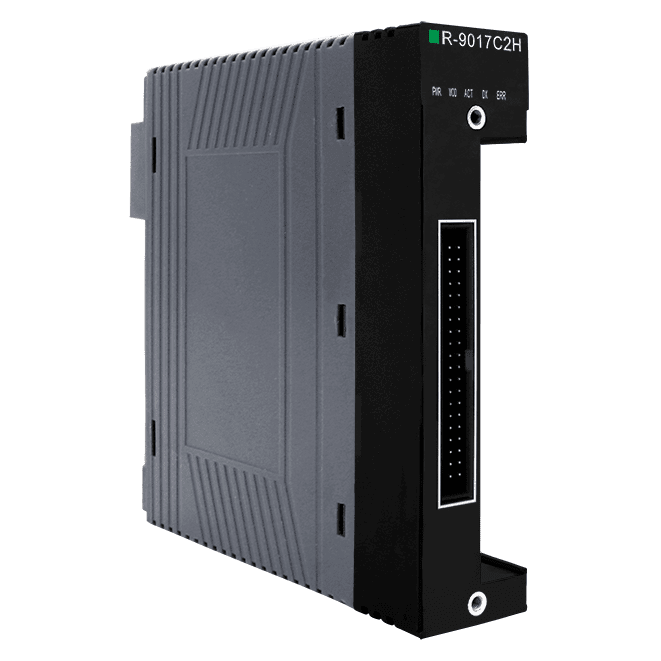

R-9017C2H 16-ch 4~20mA Analog Input Module with HART Master, Redundant
16-channel 4~20mA analog input module with a built-in HART master for the RIO-98x0 redundancy I/O system. 16-bit resolution and ±0.05% FSR accuracy.
- 16 current input channels with 16-bit A/D conversion at 10 samples/sec per channel
- Overrange measurement from 0 to 24 mA, with ±25% overrange support on 4~20 mA input
- Built-in HART master for accessing HART device information in monodrop topology
- Channel and termination board disconnection detection for wiring stability
- Redundant switching time below 1 ms within the RIO-98x0 redundancy design
- Accuracy of ±0.05% FSR with overcurrent protection on each input
13 629,71 kr per stk.
| 1–9 stk. | 13 629,71 kr | |
|---|---|---|
| 10–30 stk. | 13 224,56 kr | −3 % |
| 31+ stk. | 12 954,46 kr | −5 % |
Produktinformasjon "R-9017C2H 16-ch 4~20mA Analog Input Module with HART Master, Redundant"
R-9017C2H is a 16-channel current input module for the RIO-98x0 redundancy I/O system. It accepts 4~20 mA signals with ±25% overrange capability, measuring from 0 to 24 mA, and digitises each channel with a 16-bit A/D converter at 10 samples per second per channel.
Engineers typically choose this module where HART field devices must be read alongside process signals. The built-in HART master provides access to HART device information in a monodrop (point-to-point) topology. Channel disconnection and termination board disconnection detection help confirm wiring integrity, and per-channel LEDs flag high/low alarms and broken lines.
The module needs an external terminal board for field wiring, supported by the RDB-S01 and RDB-D01 I/O expansion options. Its redundancy design keeps the system running if a single I/O module fails, with a switching time below 1 ms. The 3000 VDC isolation between the power supply and the backplane bus helps reduce noise interference in industrial environments. The ordering code R-9017C2H CR is the RoHS-compliant version.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Protocol: | HART |
| Analog inputs: | 16 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +70 °C |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR LED 0~15 for CH High/Low Alarm LED 16~31 for CH Break Line |
| Analog Input | |
| Channels | 16 |
| Type | 4 ~ 20 mA (Support ±25% overrange) |
| Range | -2500 ~ 12500 (0~24mA) |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Sampling Rate | 10 Samples/Sec.(per channel) |
| Input Impedance | 85.3 Ω±1% |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overcurrent Protection | Yes |
| Zero Drift | ±0.002 LBS/℃ |
| Span Drift | ±5 ppm/℃ |
| Isolation | 3000 VDC |
| I/O Expansion | |
| I/O Type | RDB-S01 / RDB-D01 |
| HART | |
| Topology | Master, Monodrop (Point-to-Point) |
| Power | |
| Consumption | 2.4 W |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
