PROFI-5055 PROFIBUS DP-V0 Remote I/O Module, 8-ch Isolated DI and DO
PROFIBUS DP-V0 slave remote I/O module with 8 isolated digital inputs and 8 isolated digital outputs, configured via GSD file for any PROFIBUS configurator.
- DP-V0 slave for PROFIBUS DP networks
- 8 isolated digital inputs (sink or source) and 8 isolated digital outputs (sink)
- Transmission rate detected automatically, with baud rates from 9.6 k to 12 M
- Node address 0~99 set by rotary switches
- I/O configuration via GSD file in any PROFIBUS configurator
- 3000 VDC isolation on the PROFIBUS side and 4 kV ESD protection on each terminal
2 638,68 kr per stk.
| 1–9 stk. | 2 638,68 kr | |
|---|---|---|
| 10–30 stk. | 2 555,57 kr | −3 % |
| 31+ stk. | 2 503,63 kr | −5 % |
Produktinformasjon "PROFI-5055 PROFIBUS DP-V0 Remote I/O Module, 8-ch Isolated DI and DO"

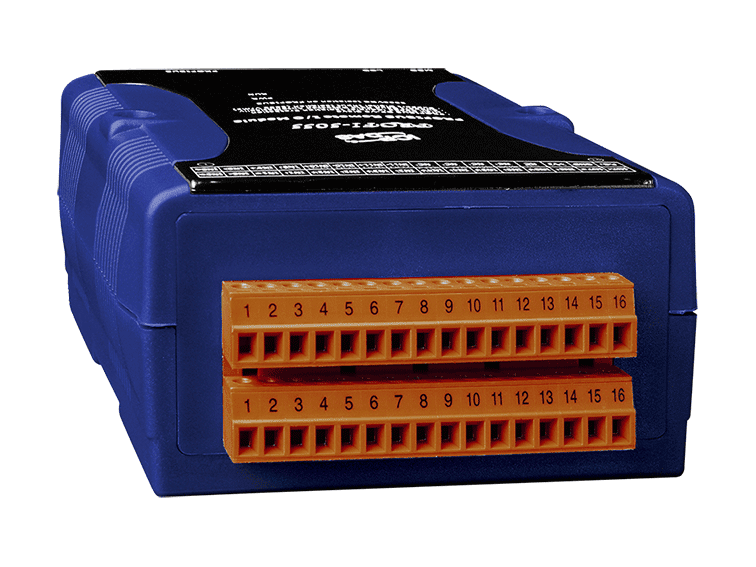

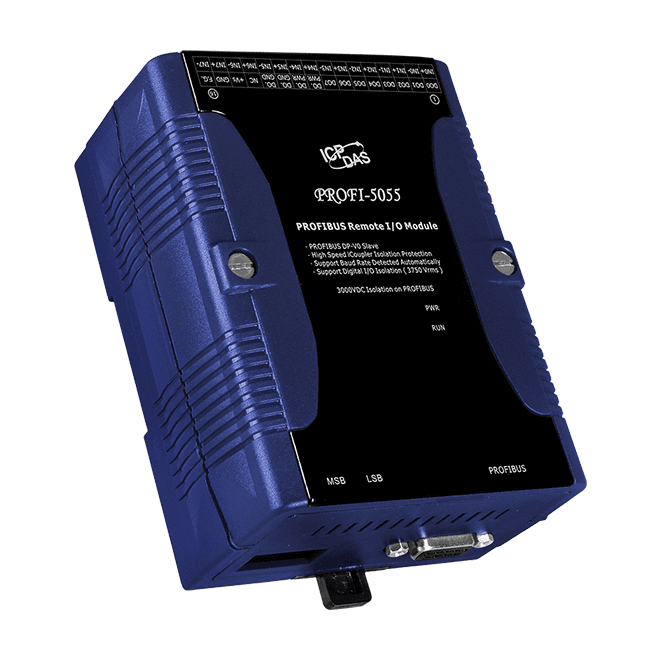

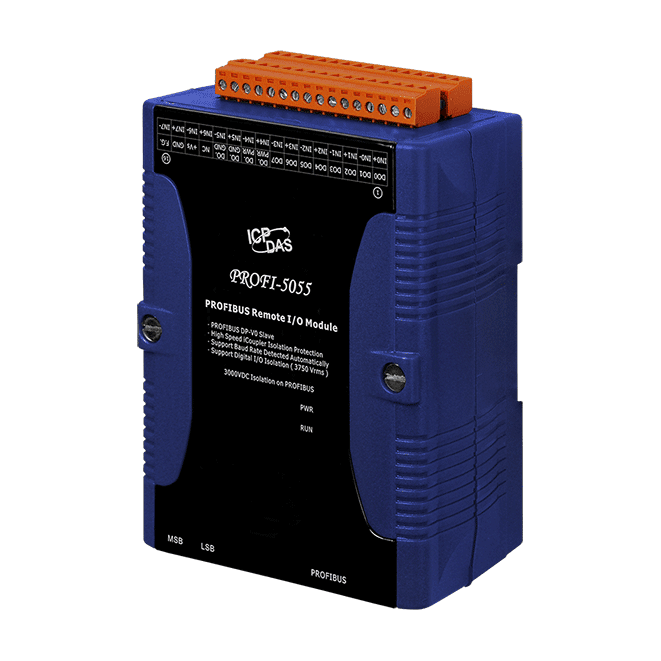

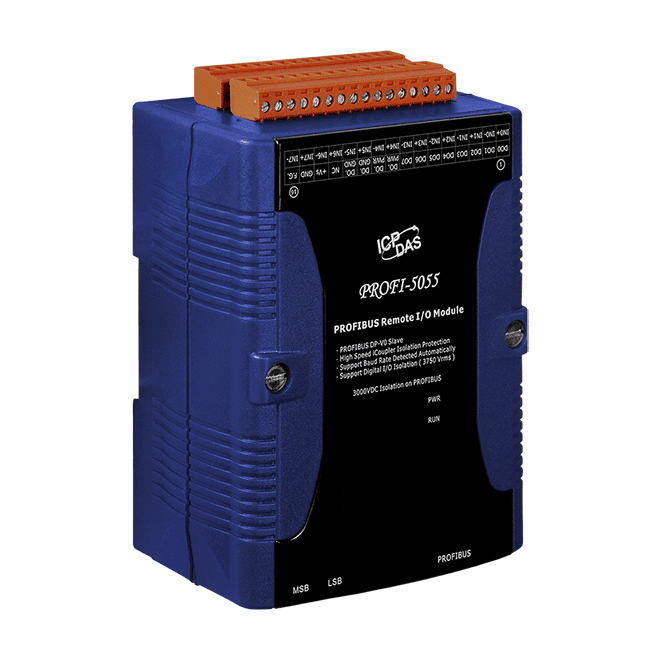

The PROFI-5055 CR is a PROFIBUS DP-V0 slave remote I/O module that brings eight isolated digital inputs and eight isolated digital outputs onto a PROFIBUS network. It suits engineers who need discrete field signals connected to a DP master without building custom wiring or logic at the bus level.
Each digital input accepts sink or source wiring and is isolated from the others, with an on-voltage range of +10 to +50 V. The eight digital outputs are sink type, with a load voltage of +10 to +40 V and a maximum load current of 650 mA without short-circuit protection. Both I/O groups are rated for 3750 Vrms isolation.

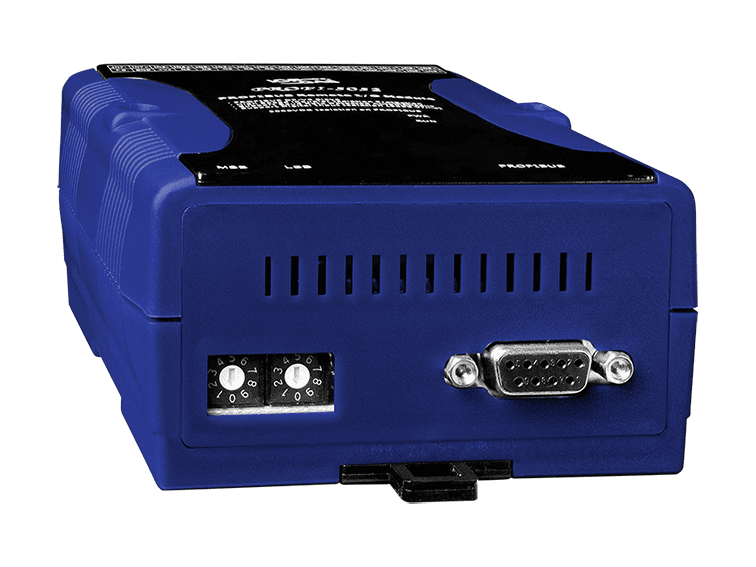

Commissioning is straightforward: the transmission rate is detected automatically, the node address is set from 0 to 99 using rotary switches, and the I/O configuration is loaded from the GSD file. The module is designed for DIN-rail mounting and operates from -25 to +75 °C.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | PWR LED, RUN LED |
| Digital Input | |
| Channels | 8 Channels (Sink or Source), Isolated from each other Off Voltage Level: +4V Max. On Voltage Level: +10 ~ +50V Input Impedance: 10KΩ in series with opto-coupler Isolation Voltage: 3750Vrms |
| Digital Output | |
| Channels | 8 Channels (Sink), Isolated with common ground Load Voltage: +10 ~ +40V Maximum Load Current: 650mA w/o Short-Circuit Protection Isolation Voltage: 3750Vrms |
| PROFIBUS | |
| Controller | Profichip VPCLS2 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
