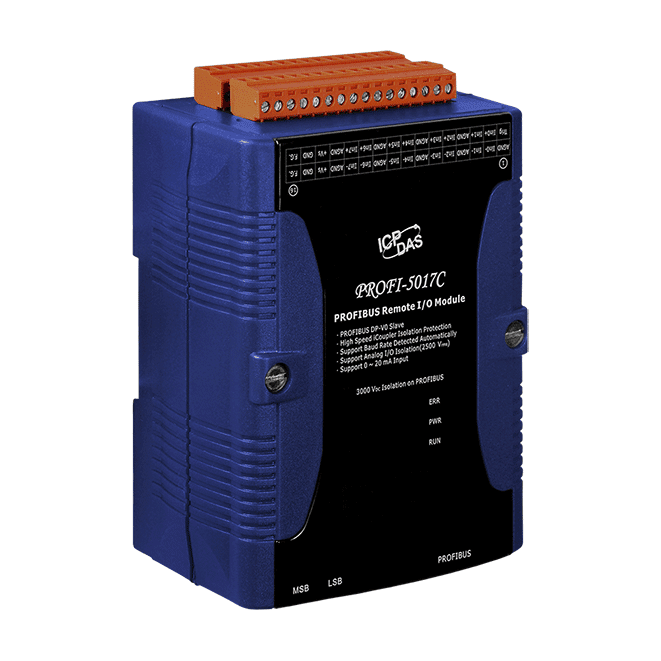

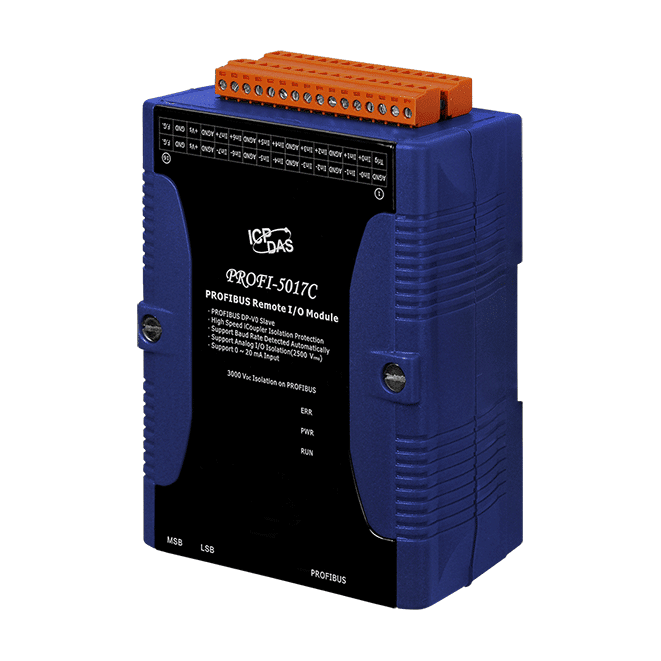

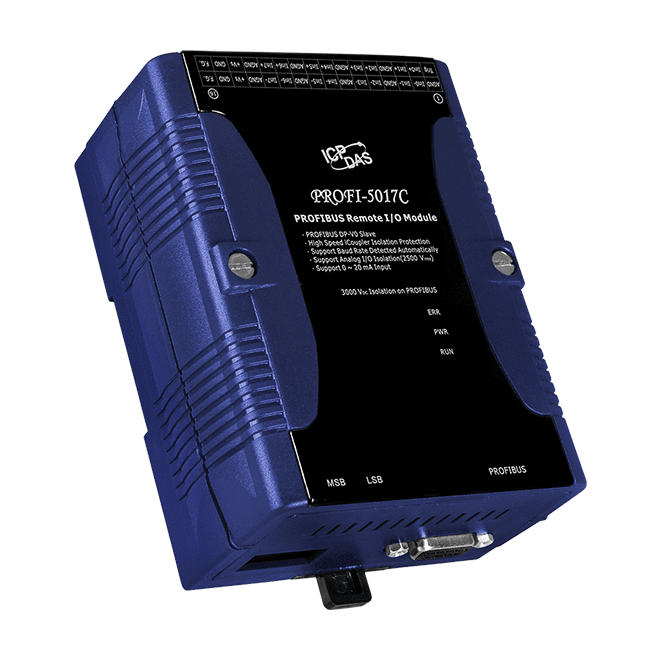

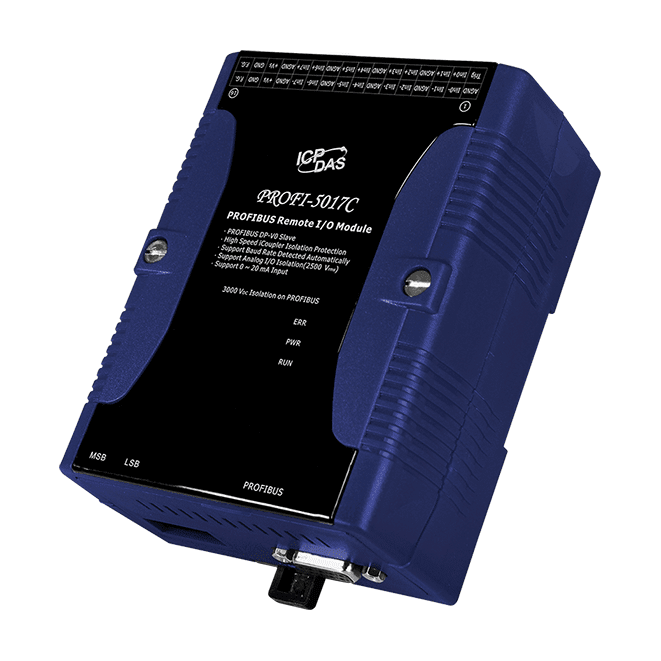

PROFI-5017C PROFIBUS DP Remote I/O Module, 8-ch Isolated 0 ~ 20mA Analog Input
PROFIBUS DP-V0 slave remote I/O module with 8 differential 0 ~ 20mA current inputs, 2500Vrms bus-to-logic isolation and GSD-file configuration.
- PROFIBUS DP-V0 slave with automatic transmission rate detection up to 12 M baud
- Eight differential 0 ~ 20mA current inputs with +/- 0.2% of FSR accuracy
- 2500Vrms field-to-logic isolation and 3000 VDC isolation on the PROFIBUS side
- Node address 0 ~ 126 set by rotary switches or SSA telegram
- Configured through the GSD file in any PROFIBUS configurator
- 4KV ESD protection on each terminal
4 280,06 kr per stk.
| 1–9 stk. | 4 280,06 kr | |
|---|---|---|
| 10–30 stk. | 4 155,40 kr | −3 % |
| 31+ stk. | 4 072,29 kr | −5 % |
Produktinformasjon "PROFI-5017C PROFIBUS DP Remote I/O Module, 8-ch Isolated 0 ~ 20mA Analog Input"
The PROFI-5017C is a PROFIBUS DP-V0 slave module that brings eight differential current inputs onto a PROFIBUS network. Each input accepts 0 ~ 20mA signals with an accuracy of +/- 0.2% of FSR, making it suited to连接 standard process transmitters in distributed control layouts.
Isolation is provided on several levels: 2500Vrms between the field and logic sides, 3000 VDC on the PROFIBUS side, and high speed iCoupler isolation on the network interface. Each terminal carries 4KV ESD protection, which helps the module tolerate harsh plant environments.
Node addressing is set by rotary switches or an SSA telegram, and the transmission rate is detected automatically across the listed baud rates up to 12 M. Integration is handled through the GSD file in any PROFIBUS configurator, and the module mounts on a DIN-rail for operation between -25 ~ +75℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Analog inputs: | 8 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Analog Input | |
| Channels | 8 channel differential current input, Isolation Voltage:2500Vrms |
| Range | 0 ~ 20mA |
| Accuracy | +/- 0.2% of FSR |
| PROFIBUS | |
| Controller | Siemens SPC3 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
