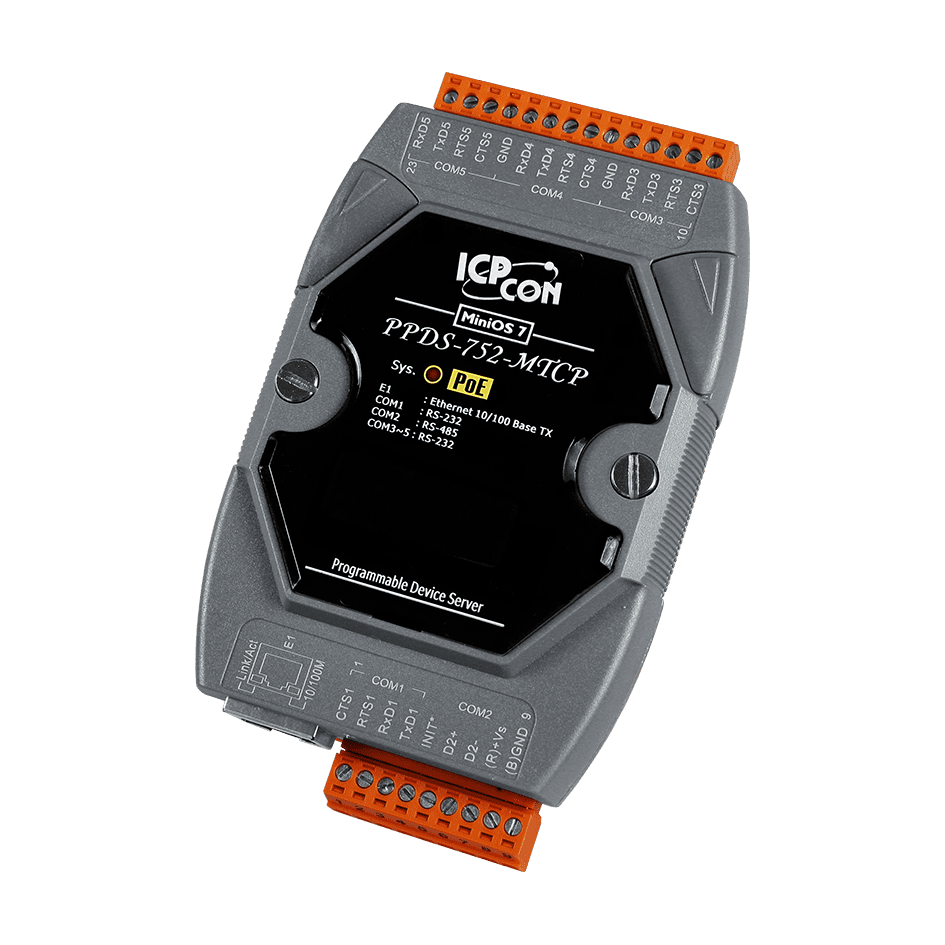

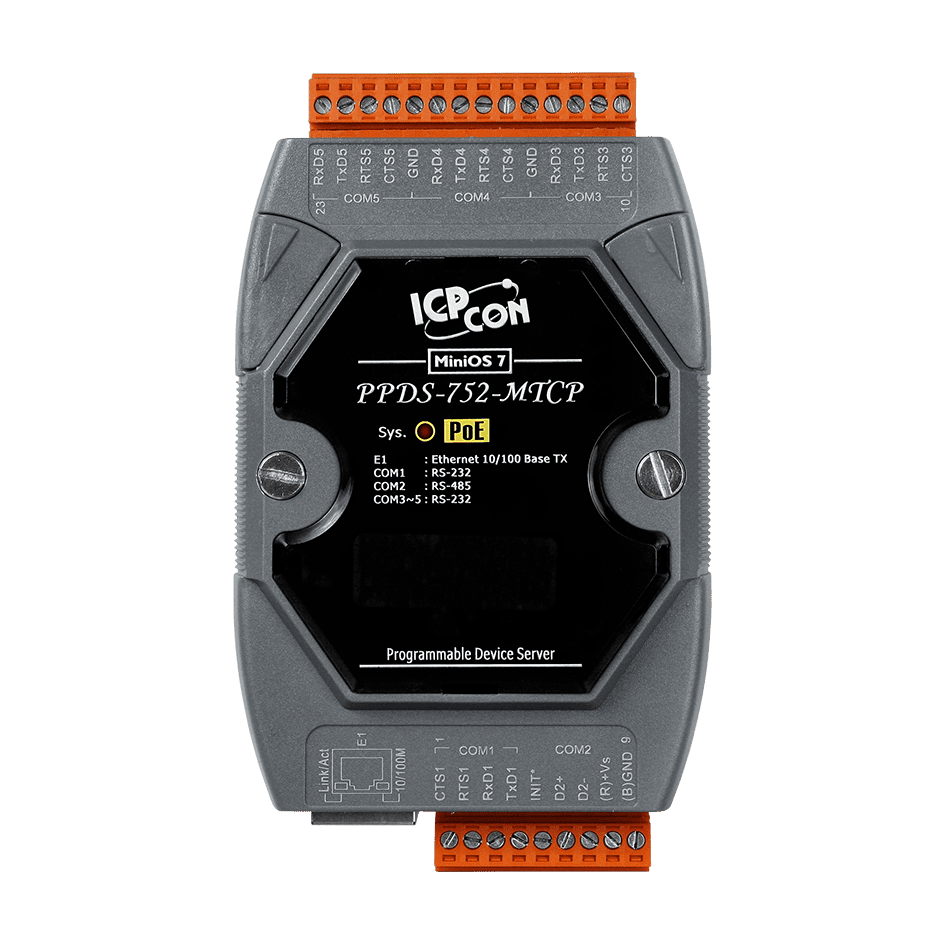

PPDS-752-MTCP Serial-to-Ethernet Device Server, 4x RS-232, 1x RS-485, PoE
Programmable serial-to-Ethernet device server with four RS-232 ports, one RS-485 port, PoE and a Modbus TCP to RTU/ASCII gateway for linking serial devices to Ethernet networks.
- Four RS-232 ports and one RS-485 port for connecting serial devices to an Ethernet network
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems
- VxComm driver extends the built-in COM ports to Windows PC COM ports, supporting 32/64-bit Windows 7 SP1/10/2012/2016
- Power over Ethernet (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
- Programmable device server running the built-in MiniOS7
- Watchdog timer and +/-4 kV ESD protection circuit on serial ports
3 563,26 kr per stk.
| 1–9 stk. | 3 563,26 kr | |
|---|---|---|
| 10–30 stk. | 3 448,98 kr | −3 % |
| 31+ stk. | 3 376,26 kr | −5 % |
Produktinformasjon "PPDS-752-MTCP Serial-to-Ethernet Device Server, 4x RS-232, 1x RS-485, PoE"
The PPDS-752-MTCP CR bridges four RS-232 devices and one RS-485 device onto an Ethernet network. Its built-in COM ports can be presented as standard COM ports on a Windows PC through the VxComm driver, so existing serial software can keep working with networked hardware.
Beyond simple serial tunnelling, the unit is programmable and runs the built-in MiniOS7 operating system. It also acts as a Modbus TCP to RTU/ASCII gateway, letting Modbus TCP SCADA and HMI systems poll serial Modbus slaves. Power can come from a PoE switch under IEEE 802.3af Class 1 or from a +12 ~ 48 VDC terminal block, and the removable terminal block simplifies field wiring.
This ordering code ships with the CA-0910 cable. The device is suited to factory, building and home automation projects where serial equipment needs to be integrated into an Ethernet infrastructure.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 4x RS-232, 1x RS-485 |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 4 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM5 |
| Stop Bit | 1, 2: for COM1 ~ COM5 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
