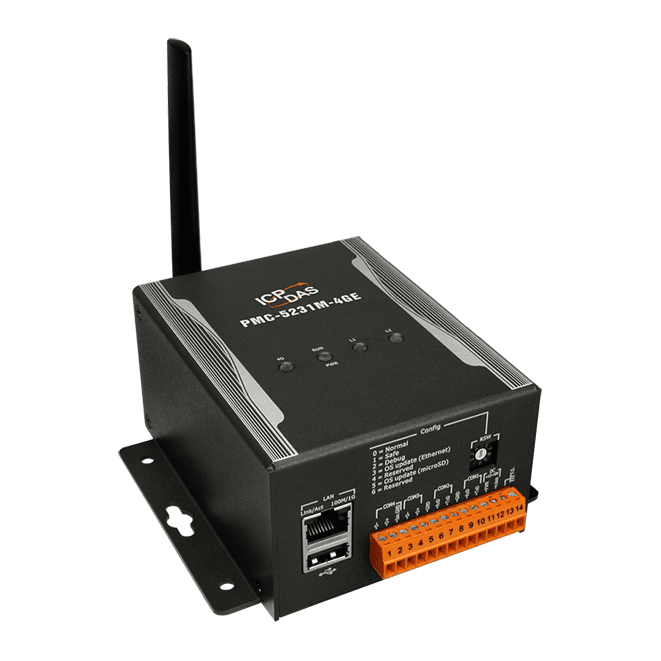

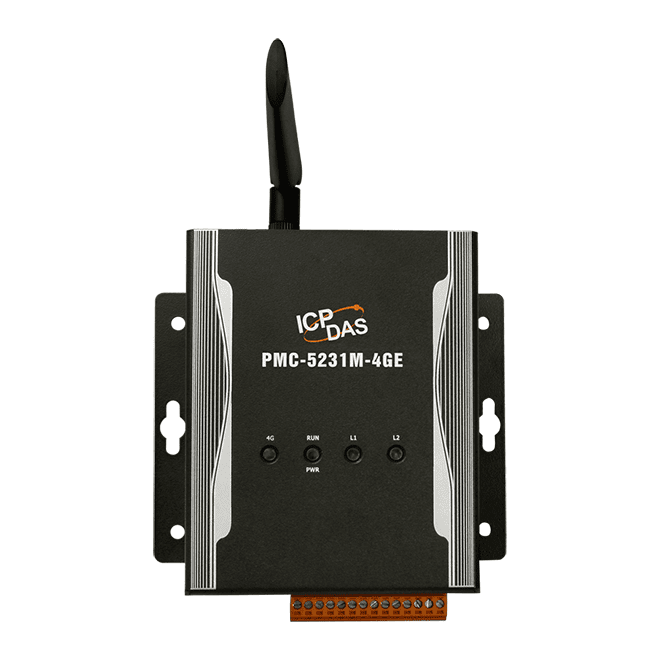

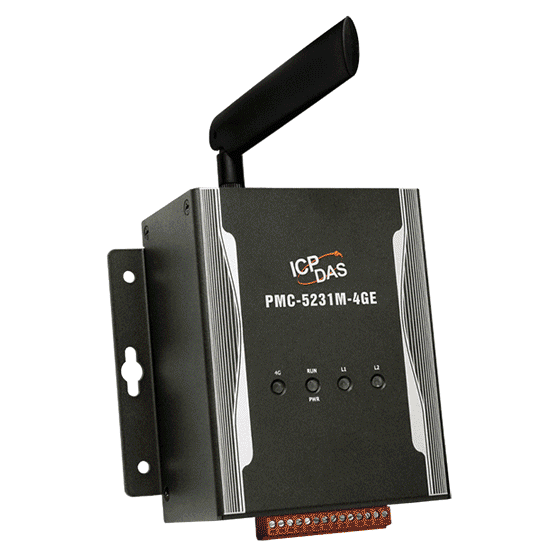

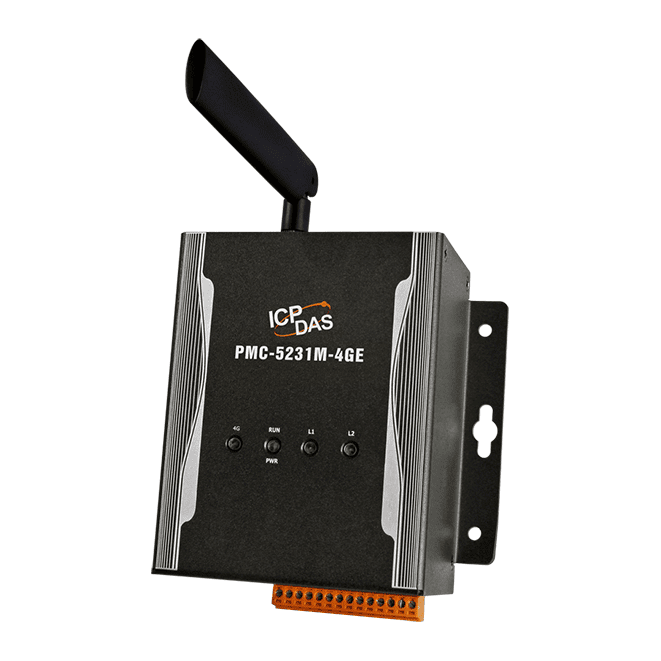

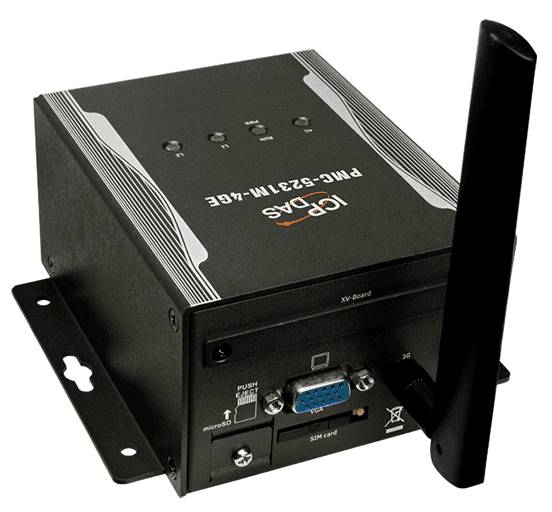

PMC-5231M-4GE IIoT Power Meter Concentrator with 4G Cellular Communication
Metal-cased IIoT power meter concentrator with 4G connectivity for gathering data from power meters and Modbus I/O modules, configured through a web browser.
- Web-based configuration with no extra software tool or programming required
- Connects up to 24 ICP DAS Modbus power meter modules plus 8 Modbus I/O modules, with a maximum of 16 Modbus TCP modules
- COM3 and COM4 each support up to 16 Modbus RTU modules; COM4 is 2500 VDC isolated
- Built-in IF-THEN-ELSE logic engine for power demand management and load shedding
- Alarm notification via LINE, Email or SMS, plus a Schedule function for I/O operations
- Modbus TCP/RTU, SNMP, FTP and MQTT support, with IoT cloud links to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "PMC-5231M-4GE IIoT Power Meter Concentrator with 4G Cellular Communication"
The PMC-5231M-4GE concentrates data from ICP DAS and standard Modbus power meters and I/O devices, then makes it available to energy monitoring and management systems. It suits engineers who need to measure consumption across a site and push the results to a SCADA, MES, IT or IoT back end over a cellular link.
Configuration runs entirely in a web browser, so no separate software tool or custom programming is needed. Real-time and historical power data can be viewed and reported in the browser, and an IF-THEN-ELSE logic engine supports power demand management, with load shedding and alarm notification by LINE, Email or SMS.
The 4G module is specified for the EMEA, Korea, Thailand, India and Taiwan frequency bands. A microSD card logs power data and sends the log files on automatically after a network outage. The metal case is designed for DIN-rail or wall mounting.
Applications
- Energy measurement, monitoring and management
- Power demand management and load shedding
- Remote power data collection for SCADA, MES and IoT back-end systems
| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus TCP/RTU, MQTT, SNMP |
| Ports: | 1 RJ-45, 4 COM |
| Isolation: | 2500 VDC (COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function. • SMS message sending function. • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1 GHz) |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max 100 Mbps; Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
