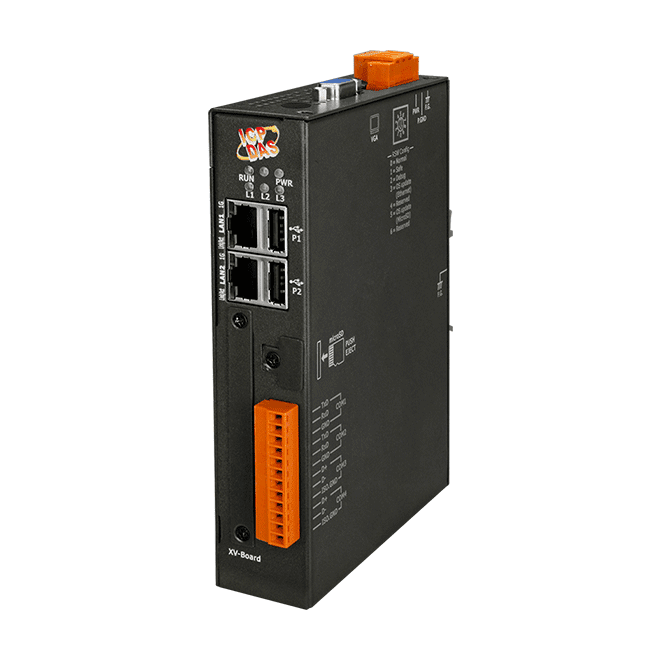

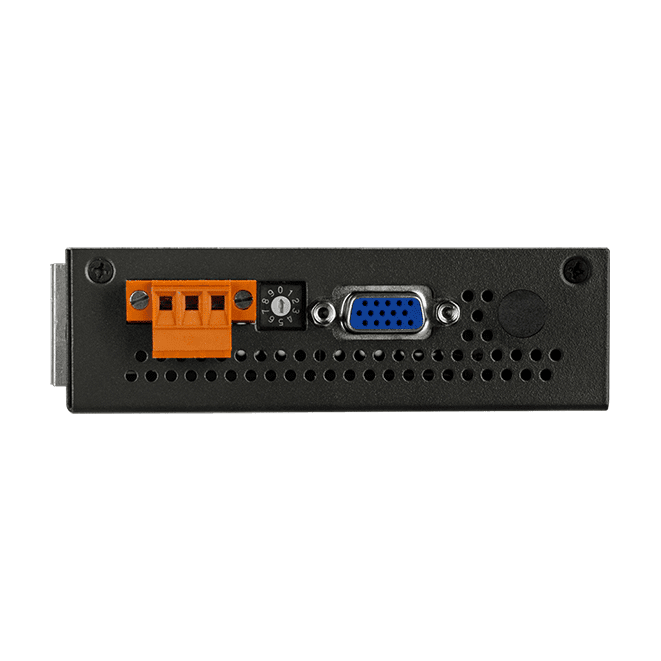

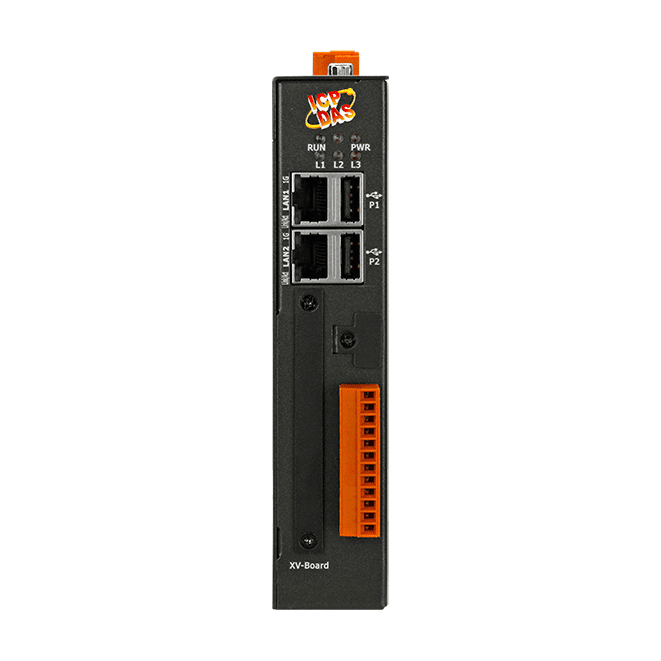

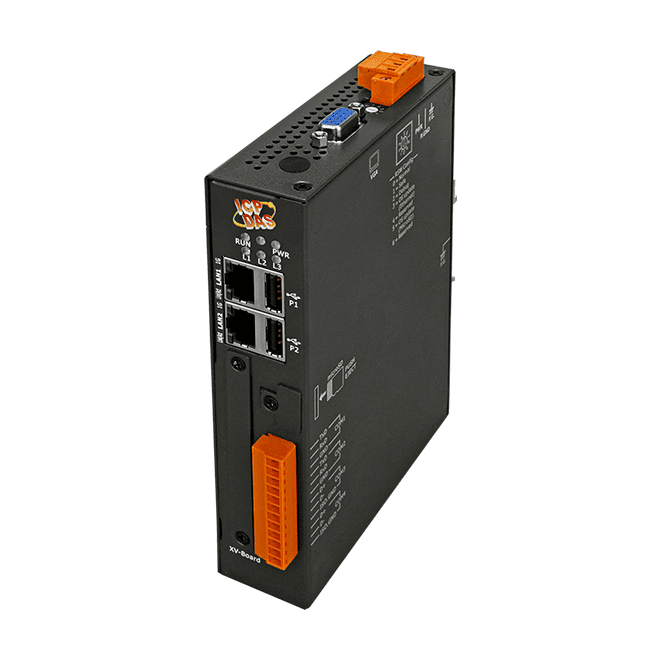

PMC-2241M IIoT Power Meter Concentrator, Metal Case
IIoT power meter concentrator in a metal case for energy monitoring and management, with Modbus TCP/RTU, SNMP, FTP and MQTT support and browser-based configuration.
- Browser-based configuration and monitoring with no extra software tool and no programming required
- Supports up to 24 ICP DAS Modbus power meter modules plus 8 Modbus I/O modules, with up to 16 Modbus TCP modules in total
- Two isolated RS-485 ports (COM3 and COM4, 2500 VDC isolated, up to 115200 bps) plus a 10/100/1000 Ethernet interface
- microSD data logging with a 32 GB card, with automatic log file send-back and recovery when the network resumes
- Built-in IF-THEN-ELSE logic engine for power demand management and alarm notification via LINE, Telegram or Email
- Supports Modbus TCP/RTU, SNMP, FTP and MQTT protocols
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "PMC-2241M IIoT Power Meter Concentrator, Metal Case"
PMC-2241M CR gathers readings from ICP DAS Modbus power meters over RS-485 or Ethernet and presents them through a built-in web interface, so energy monitoring can be set up without writing code. It records real-time and historical power data, produces power data statistics reports, and stores logs on a microSD card.
Beyond monitoring, the unit runs an IF-THEN-ELSE logic engine for power demand management and can adjust connected Modbus I/O modules according to power status. Alarm messages can be sent via LINE, Telegram or Email, and a Schedule function governs I/O module operation.
For integration, the concentrator supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar Cloud software. It is intended for engineers building energy management systems that feed SCADA, MES or network management platforms.
Applications
- Energy measurement, monitoring and management
- Power demand management and load shedding
- Power consumption statistics and reporting
- Integration with SCADA, MES and network management systems
| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 2 x RJ-45, 2 x RS-485, 1 x RS-232 |
| Isolation: | 2500 VDC (RS-485 ports) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1 GHz) |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
