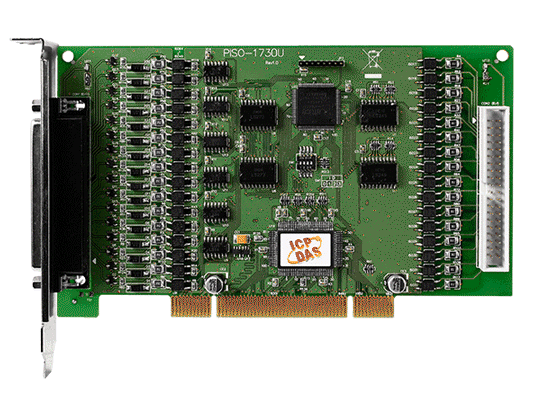

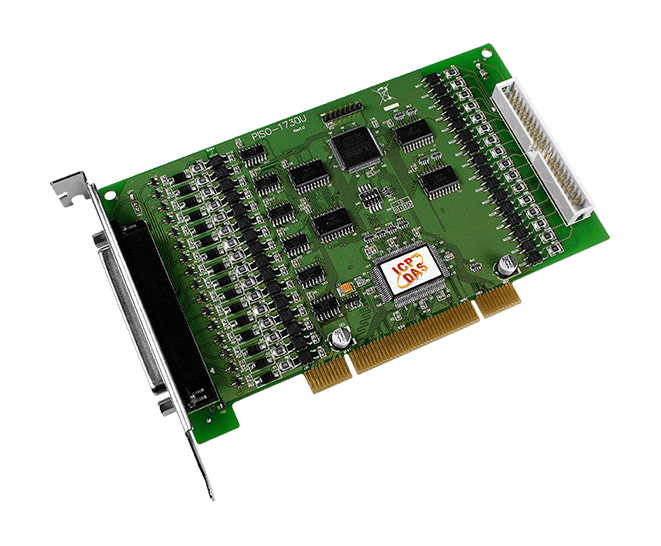

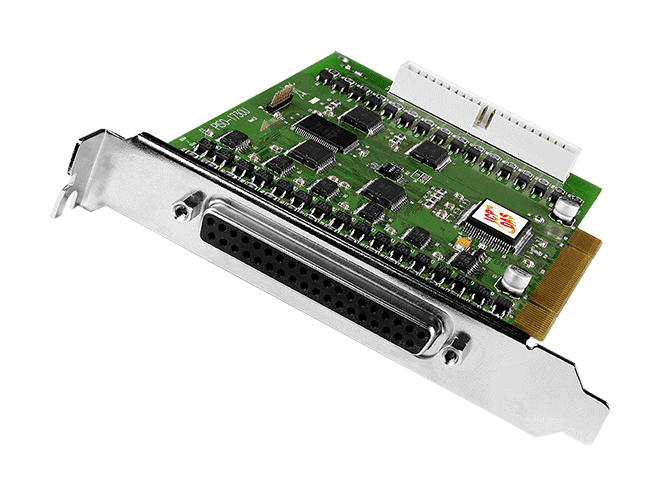

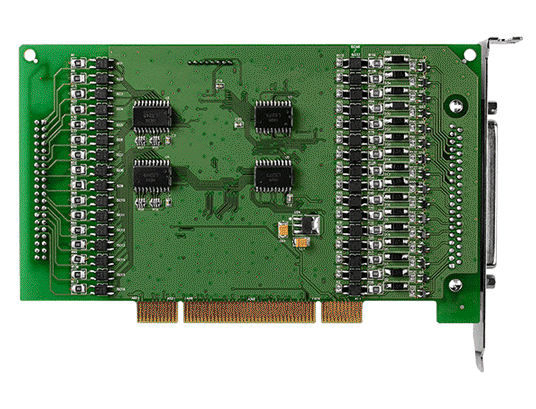

PISO-1730U Universal PCI Isolated DI/DO Board, 32-ch DI and 32-ch NPN Sink DO
PCI card with 32 optically isolated digital inputs and 32 open-collector NPN sink outputs in four isolated banks, for factory, test and laboratory automation.
- Universal PCI interface supporting 3.3 V and 5 V bus signalling, 32-bit, 33 MHz
- 32 optically isolated digital inputs with 9 ~ 24 V ON voltage level and 4 kHz typical response
- 32 open-collector sink (NPN) outputs, 100 mA/+30 V per channel at 100% duty
- Four isolated banks with built-in DC/DC converter, 3000 VDC isolation and 3750 Vrms photo-isolation
- 4-bit Card ID switch for identifying individual boards when two or more cards are fitted
- Includes CA-4037B cable and two CA-4002 D-Sub connectors
2 140,03 kr per stk.
| 1–9 stk. | 2 140,03 kr | |
|---|---|---|
| 10–30 stk. | 2 077,70 kr | −3 % |
| 31+ stk. | 2 036,15 kr | −5 % |
Produktinformasjon "PISO-1730U Universal PCI Isolated DI/DO Board, 32-ch DI and 32-ch NPN Sink DO"
PISO-1730U is a universal PCI digital I/O card that fits 3.3 V and 5 V PCI slots. It combines 32 optically isolated digital inputs with 32 open-collector sink (NPN) outputs, arranged in four isolated banks, so the host computer is shielded from field-side voltages and ground-loop problems are avoided.
Choose this board when you need a large block of isolated I/O inside a PC for factory automation, product test or laboratory work. The input and output ports take their supply from an external source, and each output channel is driven by a Darlington transistor rated at 100 mA/+30 V per channel at 100% duty. The board also has a 4-bit Card ID switch, which lets software tell cards apart when two or more are installed in one computer.
Drivers and a DLL with ActiveX control are provided for Linux, DOS and Windows, with sample programs for C, C++, Delphi, Visual Basic, C# and LabVIEW. This ordering code includes one CA-4037B cable and two CA-4002 D-Sub connectors.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | DAQ board |
|---|---|
| Interface: | PCI (3.3 V/5 V universal) |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 32 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | 9 ~ 24 V (Min. 7 V; Max. 30 V) |
| OFF Voltage Level | 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | 100 mA/+30 V for each channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
