PIO-DA16U/S Universal PCI Analog Output Board, 16-ch 14-bit AO
16-channel 14-bit analogue output board for universal PCI slots, with 16 TTL digital inputs and 16 TTL digital outputs. Supplied with a CA-3710 D-Sub cable.
- 16-channel analogue output, 14-bit resolution, with voltage (±10 V) or current (0 ~ 20 mA) range set per channel
- Software calibration with calibration data saved in EEPROM, so no jumpers or trim-pots
- 16-channel 5 V/TTL digital input with pull-high and pull-low function
- 16-channel 5 V/TTL digital output with static update operation
- Three 16-bit timer/counter channels with 4 MHz internal reference clock
- Universal PCI interface (3.3 V/5 V), 32-bit, 33 MHz, with 4-bit Card ID switch (version 1.1 or above)
5 890,28 kr per stk.
| 1–9 stk. | 5 890,28 kr | |
|---|---|---|
| 10–30 stk. | 5 713,68 kr | −3 % |
| 31+ stk. | 5 599,40 kr | −5 % |
Produktinformasjon "PIO-DA16U/S Universal PCI Analog Output Board, 16-ch 14-bit AO"

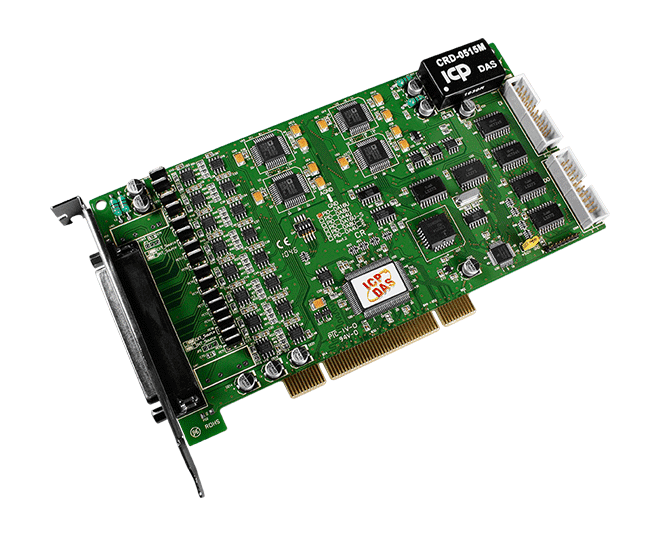

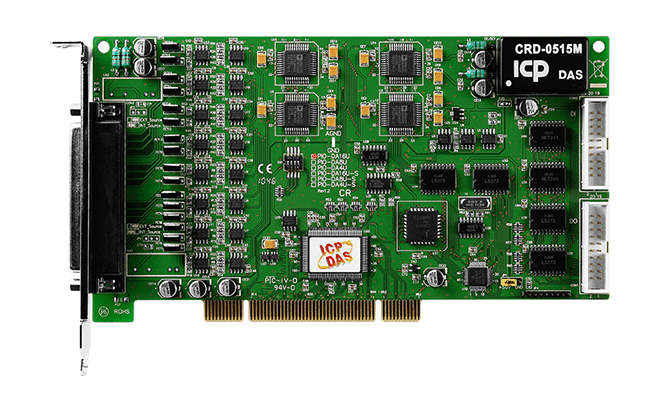

The PIO-DA16U/S CR is a 16-channel analogue output board for universal 3.3 V/5 V PCI slots. Each channel can be set individually to voltage (±10 V) or current (0 ~ 20 mA) output, which suits engineers who need to drive mixed actuator or controller inputs from a single PC card.
Calibration is done in software rather than with jumpers or trim-pots, and the calibration data is stored in EEPROM. The board also carries 16 TTL digital inputs, 16 TTL digital outputs and three 16-bit timer/counter channels, with a 4-bit Card ID switch to identify the board when two or more are installed in the same computer.
This ordering code includes one CA-3710 D-Sub cable. The board is listed for high speed data acquisition, process monitoring and control, vibration analysis and digital pattern generation from its digital I/O port.
Applications
- High speed data acquisition system
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | PCI DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 16 |
| Operating temperature: | 0 ~ +60°C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes(4-bit) for Version 1.1 or above |
| Analog Output | |
| Channels | PIO-DA4U : 4 PIO-DA8U : 8 PIO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PIO-DA4U : 600 mA@ +5 V PIO-DA8U : 800 mA@ +5 V PIO-DA16U : 1400 maA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105.1 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
