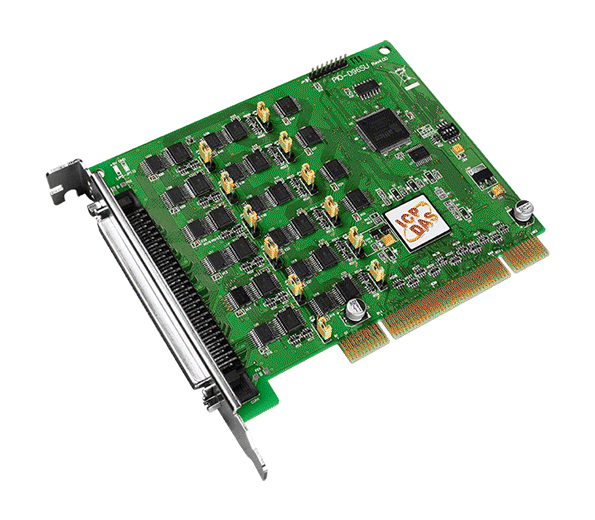

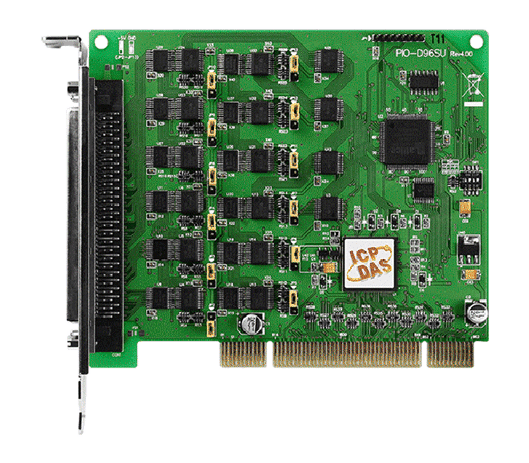

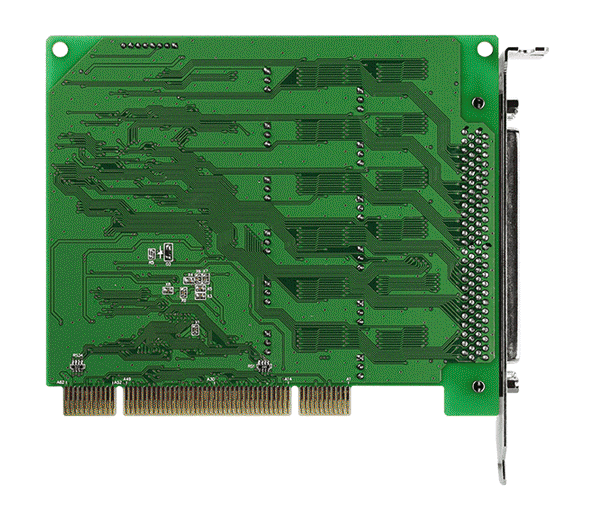

PIO-D96SU Universal PCI 96-ch Digital I/O Board, TTL/CMOS
96-channel digital I/O board for 3.3 V/5 V Universal PCI slots, with twelve 8-bit bi-directional ports, buffered I/O lines and a 4-channel interrupt source.
- 96 bi-directional TTL/CMOS digital I/O lines arranged as twelve 8-bit ports
- Universal PCI interface compatible with 3.3 V and 5 V bus signalling, 32-bit, 33 MHz
- All I/O lines buffered on the board, with buffer outputs for higher driving capability
- Pull-high/low jumpers set the DI state when channels are disconnected or interrupted
- Typical DI/O response time of approximately 1 μs (1 MHz)
- 4-channel interrupt source
2 160,81 kr per stk.
| 1–9 stk. | 2 160,81 kr | |
|---|---|---|
| 10–30 stk. | 2 098,48 kr | −3 % |
| 31+ stk. | 2 046,53 kr | −5 % |
Produktinformasjon "PIO-D96SU Universal PCI 96-ch Digital I/O Board, TTL/CMOS"
PIO-D96SU is a PCI card that adds 96 TTL/CMOS digital I/O lines to a PC, organised as twelve 8-bit bi-directional ports grouped in threes as Port A, Port B and Port C. All ports power up as inputs, so the card is safe to connect before any output configuration is applied.

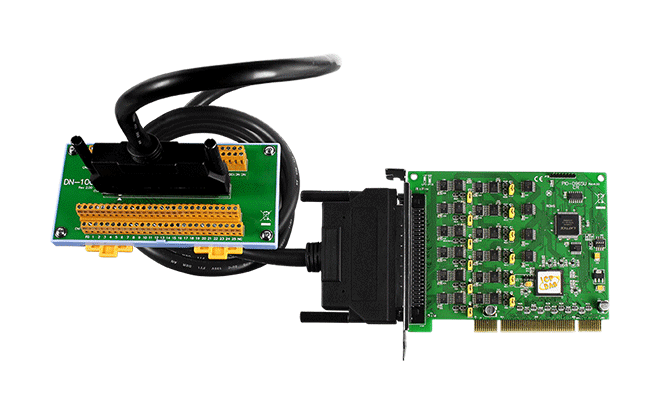

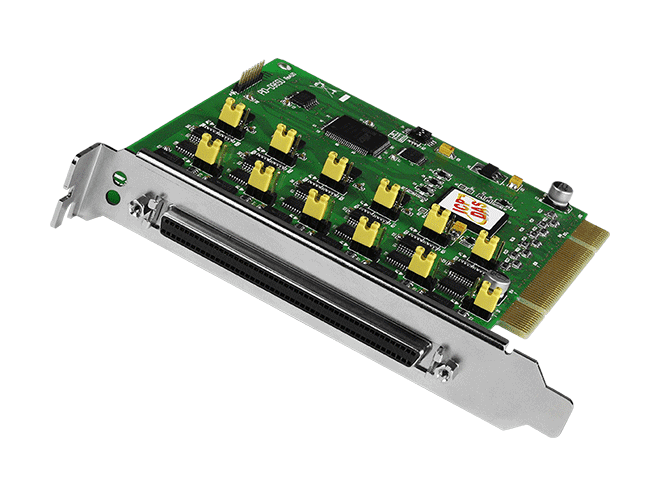

Engineers choosing this board will value the on-board buffering of every I/O line, the pull-high/low jumpers that define the input state when a channel is disconnected or interrupted, and the 4-channel interrupt source. The single high-density 100-pin SCSI II connector keeps the slot footprint small, and the 4-bit Card ID switch lets software identify each board when two or more are installed in the same computer.
Driver software includes a DLL and ActiveX control, with sample programs for Visual C++, C#.NET, Visual Basic.NET, Delphi and LabVIEW, and supports Linux, DOS and Windows. The board is CE, UKCA, FCC, RoHS and WEEE marked.
Applications
- PC-based digital input and output monitoring and control
- Multi-board systems where individual cards must be identified in software
| Product type: | Digital I/O board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 96 |
| Digital outputs: | 96 |
| Ports: | 12 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female SCSI II 100-pin x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 96 (Bi-Direction) |
| Type | 5 V/CMOS |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 96 (Bi-Direction) |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.1 V Max. Logic 1: 4.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 1.0 MHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 97 x 125 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
