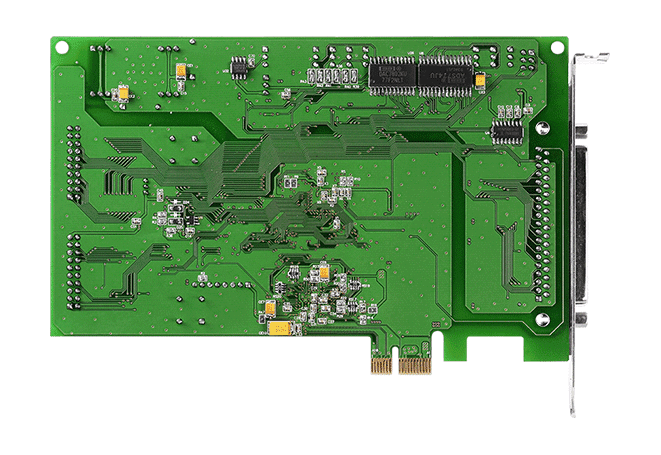

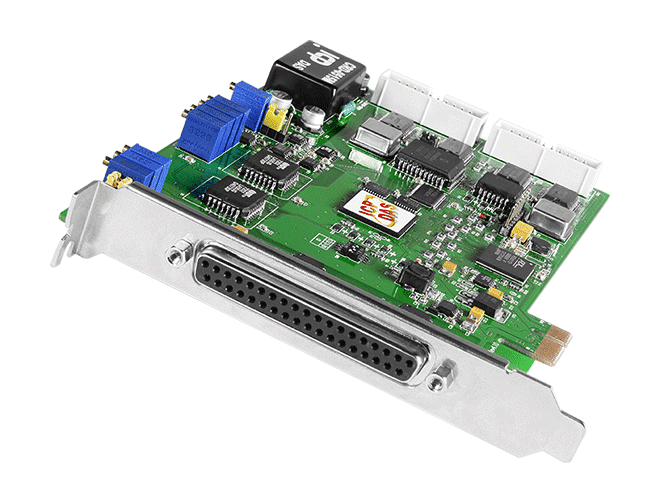

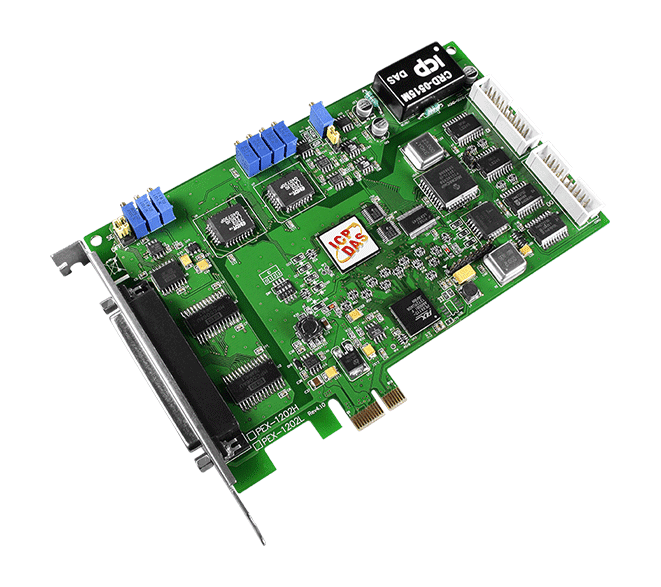

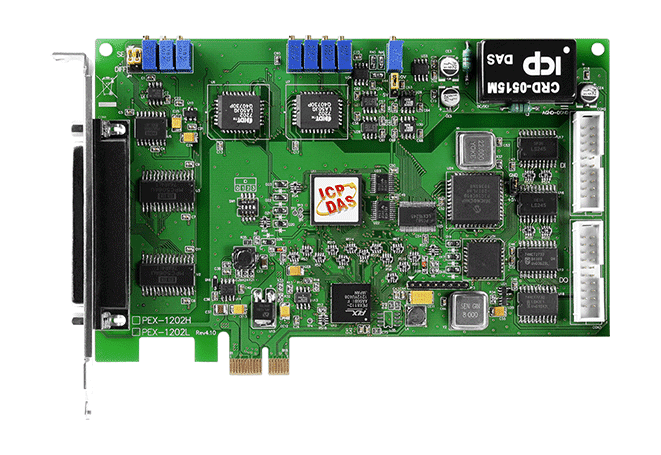

PEX-1202H PCI Express DAQ Board, 32-ch 12-bit Analog Input, 44 kS/s
PCI Express multi-function data acquisition board with 32 single-ended or 16 differential 12-bit analogue inputs at up to 44 kS/s, plus two analogue outputs, 16 DI and 16 DO channels.
- PCI Express x1 interface with 16-bit data bus
- 32 single-ended or 16 differential 12-bit analogue inputs, up to 44 kS/s
- Input ranges from ±10 V down to ±0.005 V, plus 0 ~ 10 V unipolar
- Two 12-bit analogue outputs with ±5 V or ±10 V ranges
- 16 DI (5 V/TTL) with pull-high/low jumpers and 16 DO (5 V/CMOS)
- Three external triggers: pre-trigger, middle-trigger and post-trigger
5 204,64 kr per stk.
| 1–9 stk. | 5 204,64 kr | |
|---|---|---|
| 10–30 stk. | 5 048,81 kr | −3 % |
| 31+ stk. | 4 944,93 kr | −5 % |
Produktinformasjon "PEX-1202H PCI Express DAQ Board, 32-ch 12-bit Analog Input, 44 kS/s"
PEX-1202H is a PCI Express x1 multi-function board for engineers who need analogue acquisition and digital I/O in a single slot. It provides 32 single-ended or 16 differential 12-bit analogue inputs sampled at up to 44 kS/s, with a 1024-sample FIFO to buffer readings.
Acquisition can be started by software, by the internal programmable pacer or by an external 5 V/TTL signal, with pre-, middle- and post-trigger options. The board also offers continuous capture and the MagicScan function, along with two 12-bit analogue outputs rated at ±5 V or ±10 V. The 16 digital inputs have pull-high/low jumpers that set a defined state when channels are unconnected or broken, and the 16 digital outputs are 5 V/CMOS.
A 4-bit Card ID switch lets software identify each board when two or more PEX-1202H cards are fitted in one computer. Supported operating systems include Linux, DOS and Windows, with DLL and ActiveX control and sample programs for several development languages. The female DB37 connector is supplied with a CA-4002 D-Sub connector included in this ordering code.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
- Digital pattern generator from digital I/O port
| Product type: | Multi-function DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Operating temperature: | 0 ~ +60°C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.1% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | 44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| FIFO Size | 1024 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | ±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ±1 LSB @ 25 °C, ±10 V |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Software |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 KHz |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.1 V Max. Logic 1: 4.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 500 KHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 16-bit |
| Power | |
| Consumption | 1300 mA @ +3.3 V 0 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 100 x 162 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
