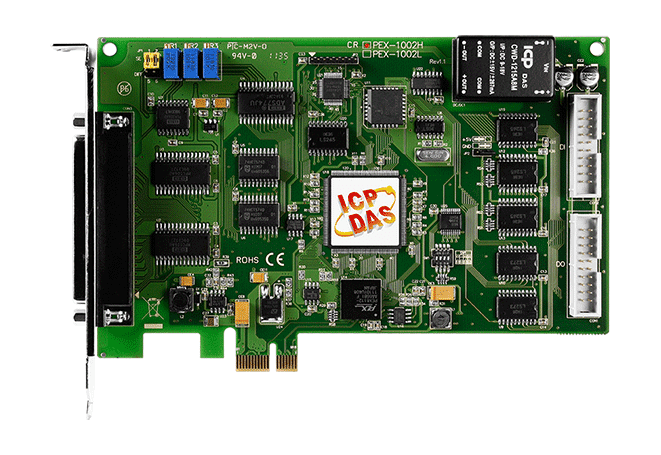

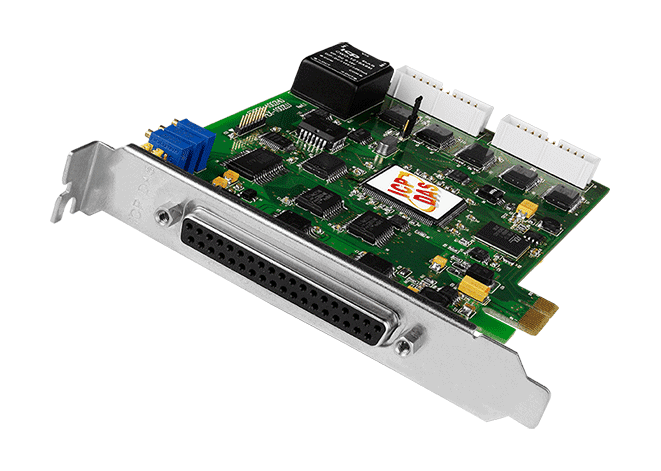

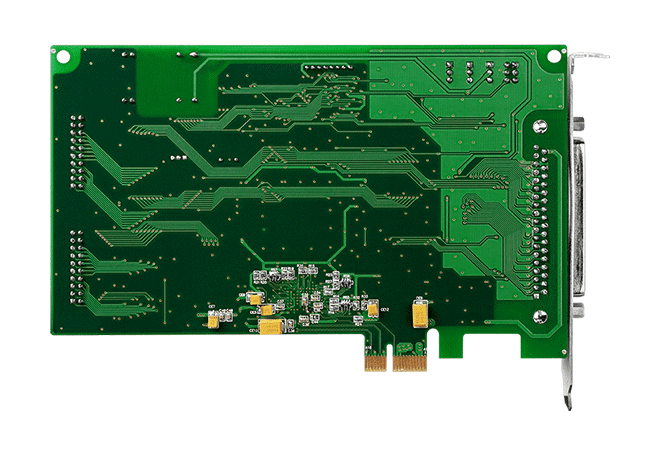

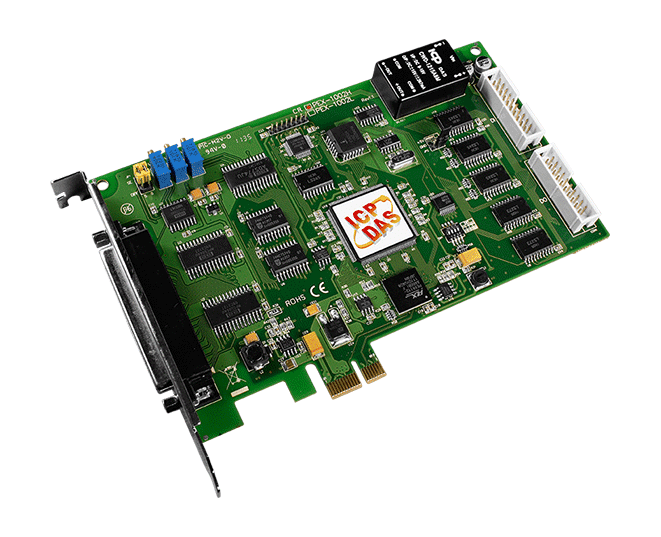

PEX-1002H PCI Express DAQ Board, 32-ch 12-bit AI, 44 kS/s
PCI Express multi-function data acquisition board with 32 single-ended or 16 differential 12-bit analog inputs at up to 44 kS/s, plus 16 DI and 16 DO 5 V/TTL channels.
- PCI Express x1 interface for PC-based data acquisition
- 12-bit analogue input: 32 single-ended or 16 differential channels
- Maximum sampling rate of 44 kS/s with software, internal pacer or external 5 V/TTL trigger
- 16 digital input and 16 digital output channels, 5 V/TTL
- Pull-high/pull-low jumpers set the state of unconnected DI channels
- On-board 4-bit Card ID switch for identifying boards in multi-card systems
3 677,53 kr per stk.
| 1–9 stk. | 3 677,53 kr | |
|---|---|---|
| 10–30 stk. | 3 573,64 kr | −3 % |
| 31+ stk. | 3 500,92 kr | −5 % |
Produktinformasjon "PEX-1002H PCI Express DAQ Board, 32-ch 12-bit AI, 44 kS/s"
The PEX-1002H is a PCI Express x1 multi-function board for PC-based measurement. It combines a 12-bit analogue input section, sampling at up to 44 kS/s, with 16 digital inputs and 16 digital outputs, all at 5 V/TTL levels. It suits engineers who need analogue acquisition and digital I/O in one slot.
The analogue inputs can be configured as 32 single-ended or 16 differential channels, with gains of 1, 10, 100 and 1000 and bipolar ranges from ±10 V down to ±0.01 V. Acquisition can be started by software, the internal programmable pacer or an external 5 V/TTL trigger. Pull-high and pull-low jumpers define the state of unconnected digital input channels, so they do not float.
An on-board 4-bit Card ID switch lets software identify each board when several cards are fitted to one computer. Driver support covers DLL and ActiveX control, with sample programs for a range of languages and LabVIEW. The unit is rated for operation from 0 to +60 °C and comes with one CA-4002 D-Sub connector.
Applications
- Laboratory automation
- Production test
- Sensor interface
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 32 single-ended/16 differential |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 1, 10, 100, 1000 Bipolar Range: ±10 V, ±1 V, ±0.1 V, ±0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | 44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling, Interrupt |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 KHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA Source: 0.8 mA |
| Response Speed | 500 KHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 16-bit |
| Power | |
| Consumption | 900 mA @ +3.3 V 350 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 110 x 167 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
