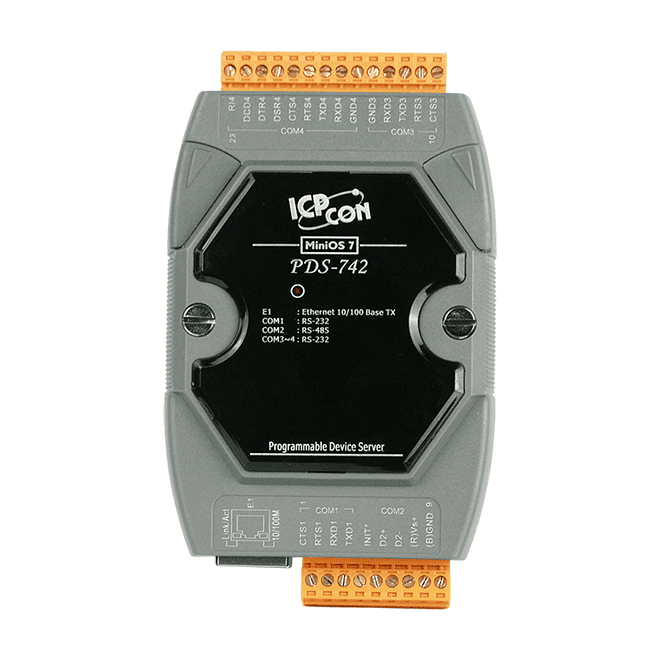

PDS-742 Serial-to-Ethernet Device Server, RS-232/RS-485
Palm-sized programmable device server with three RS-232 ports and one RS-485 port, linking serial devices to Ethernet and acting as a Modbus TCP to RTU/ASCII gateway.
- Three RS-232 ports and one RS-485 port for connecting serial devices to an Ethernet network
- VxComm driver and utility to extend PC COM ports, supporting 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- Programmable device server running the built-in MiniOS7
- Watchdog timer and +/-4 kV ESD protection circuit on serial ports
- Self-tuner ASIC controller on the RS-485 port
2 939,95 kr per stk.
| 1–9 stk. | 2 939,95 kr | |
|---|---|---|
| 10–30 stk. | 2 846,45 kr | −3 % |
| 31+ stk. | 2 794,51 kr | −5 % |
Produktinformasjon "PDS-742 Serial-to-Ethernet Device Server, RS-232/RS-485"
The PDS-742 is a programmable device server that brings serial equipment onto an Ethernet network. It provides three RS-232 ports and one RS-485 port, so existing serial instruments, controllers and field devices can be integrated without replacing them. The VxComm driver and utility can map the device's serial ports to virtual COM ports on a Windows PC, allowing standard COM-based software to communicate with them over the network.
Beyond simple serial-to-Ethernet bridging, the unit runs the built-in MiniOS7 from ICP DAS and can be programmed for custom Ethernet applications. It also operates as a Modbus TCP to RTU/ASCII gateway, supporting SCADA and HMI systems that communicate over Modbus TCP. A watchdog timer and +/-4 kV ESD protection on the serial ports help it cope with demanding industrial environments.

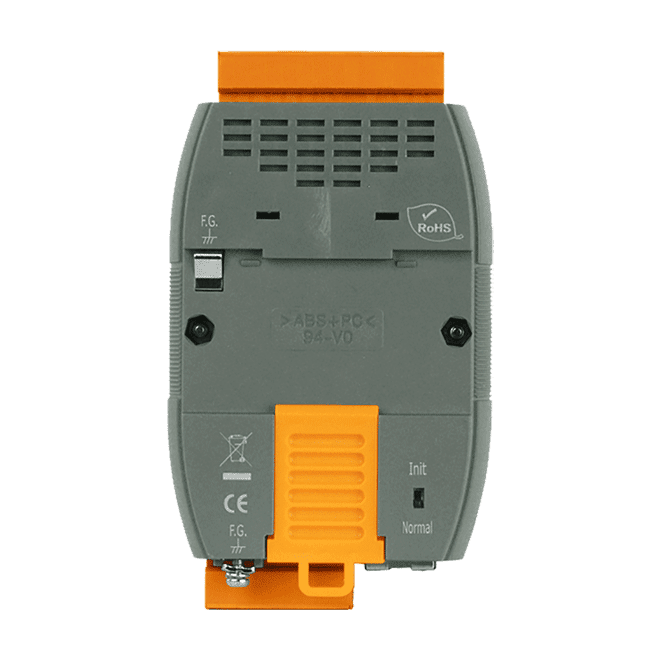

The PDS-742 ordering code includes the CA-0910 cable. It has a plastic casing, a removable terminal block for wiring, and can be mounted on a DIN rail or on a wall. It is rated for an operating temperature of -25 ~ +75 °C and is supplied from a +10 ~ 30 VDC terminal block supply.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 4 serial |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x 9-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM4 |
| Stop Bit | 1, 2: for COM1 ~ COM4 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.0 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
