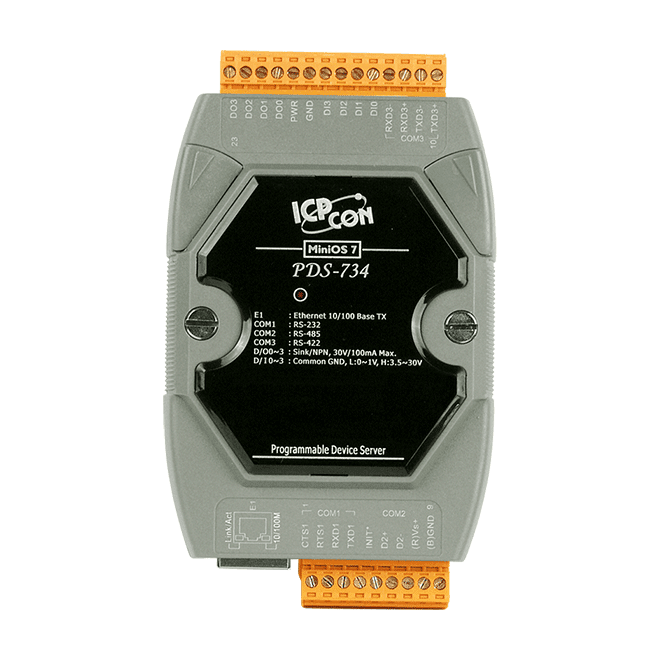

PDS-734 Programmable Serial-to-Ethernet Device Server, 4 DI/4 DO
Programmable serial-to-Ethernet device server with RS-232, RS-485 and RS-422/485 ports, 4 dry-contact digital inputs and 4 open-collector outputs. Includes CA-0910 cable.
- Three serial ports: 1x RS-232, 1x RS-485 and 1x RS-422/485, with baud rates up to 115200 bps
- Virtual COM driver (VxComm) extends PC COM ports over Ethernet, supporting 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communication
- Programmable device server with built-in MiniOS7 that boots in about one second
- 4 digital inputs with latched and counter functions, plus 4 open-collector NPN outputs rated 30 VDC and 100 mA max.
- Serial port ±4 kV ESD protection and self-tuner ASIC controller on the RS-485 port
2 888,00 kr per stk.
| 1–9 stk. | 2 888,00 kr | |
|---|---|---|
| 10–30 stk. | 2 794,51 kr | −3 % |
| 31+ stk. | 2 742,56 kr | −5 % |
Produktinformasjon "PDS-734 Programmable Serial-to-Ethernet Device Server, 4 DI/4 DO"
The PDS-734 CR links legacy RS-232, RS-485 and RS-422/485 devices to an Ethernet network. Its built-in COM ports can be mapped to standard virtual COM ports on a Windows PC, so existing serial software can keep working over the network without rewriting the application.
Beyond simple serial bridging, the unit runs a programmable device server environment and can act as a Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems. Four digital inputs with latched and counter functions and four open-collector sink outputs add local discrete I/O, while a watchdog timer supports operation in demanding environments.

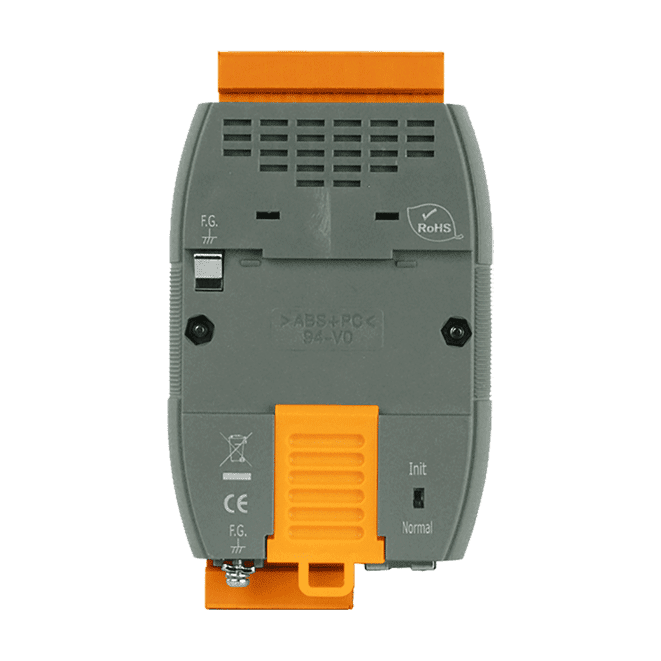

The PDS-734 CR uses a plastic casing with a removable terminal block for wiring, and mounts on DIN-rail or wall. It is supplied with the CA-0910 cable.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232, RS-422/485, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial, 1 Ethernet |
| PoE: | No |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 10 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.0 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
