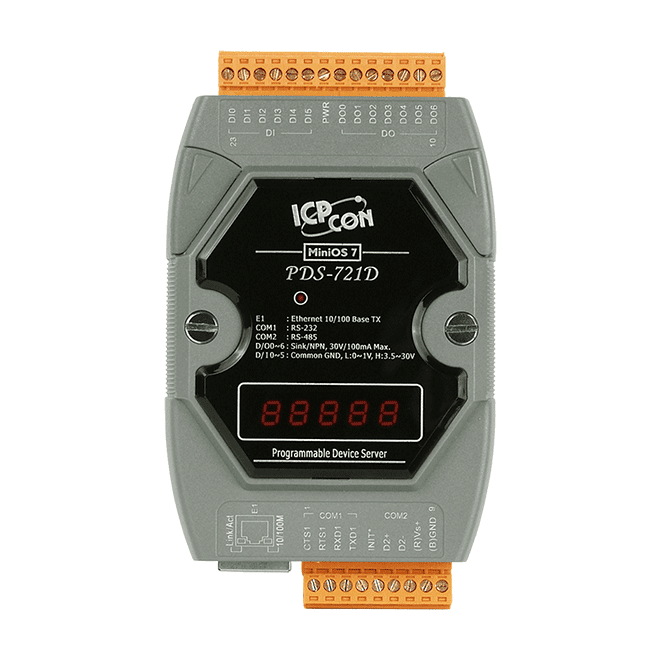

PDS-721D Programmable Serial-to-Ethernet Device Server, RS-232/RS-485, 6x DI
Programmable serial-to-Ethernet device server with one RS-232 and one RS-485 port, 6 digital inputs, 7 digital outputs and a Modbus TCP to RTU/ASCII gateway function.
- One RS-232 and one RS-485 port linking serial devices to a 10/100 Base-TX Ethernet network
- Virtual COM driver extends PC COM ports; VxComm utility supports 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- Programmable device server with built-in MiniOS7 and Xserver programming structure
- 6 digital inputs with latched and counter functions, wet contact, source type
- 7 open-collector digital outputs, sink (NPN), 30 VDC and 100 mA maximum per channel
2 036,15 kr per stk.
| 1–9 stk. | 2 036,15 kr | |
|---|---|---|
| 10–30 stk. | 1 973,82 kr | −3 % |
| 31+ stk. | 1 932,26 kr | −5 % |
Produktinformasjon "PDS-721D Programmable Serial-to-Ethernet Device Server, RS-232/RS-485, 6x DI"
The PDS-721D brings a serial RS-232 device and an RS-485 device onto an Ethernet network without changing the serial application. Its virtual COM driver lets a PC address the device's serial ports as standard COM ports, which suits legacy software that expects a local serial connection.
Beyond serial bridging, the unit runs a programmable Xserver structure on a built-in MiniOS7 platform, so custom Ethernet logic can be developed on the device. It also acts as a Modbus TCP to RTU/ASCII gateway, allowing Modbus TCP SCADA or HMI systems to reach Modbus serial slaves. The six digital inputs support latched and counter functions, and the seven open-collector outputs and LED display add local status and control.

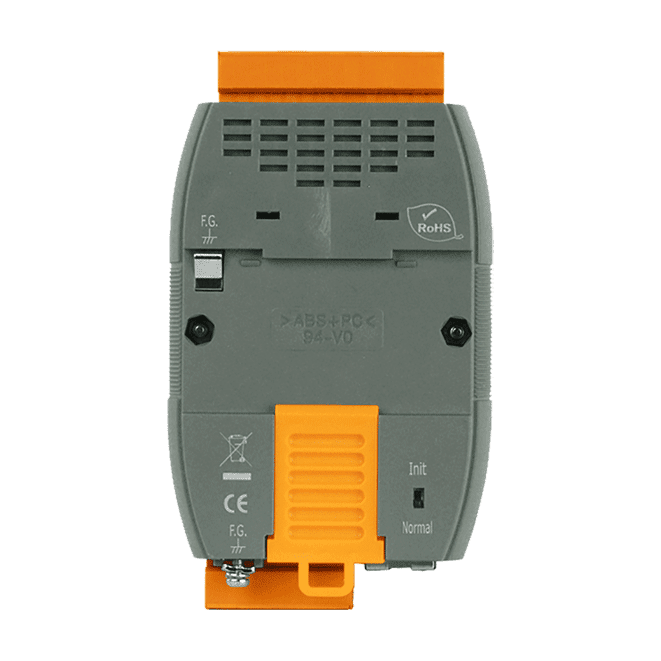

The PDS-721D is supplied with a CA-0910 cable and suits factory, building and home automation installations. It is housed in a plastic casing with DIN-rail or wall mounting, a removable terminal block, and a watchdog timer for use in harsh environments.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet 10/100, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 6 |
| Digital outputs: | 7 |
| Ports: | 2 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Digital Input | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 7 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 |
| Stop Bit | 1, 2: for COM1 ~ COM2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.7 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
