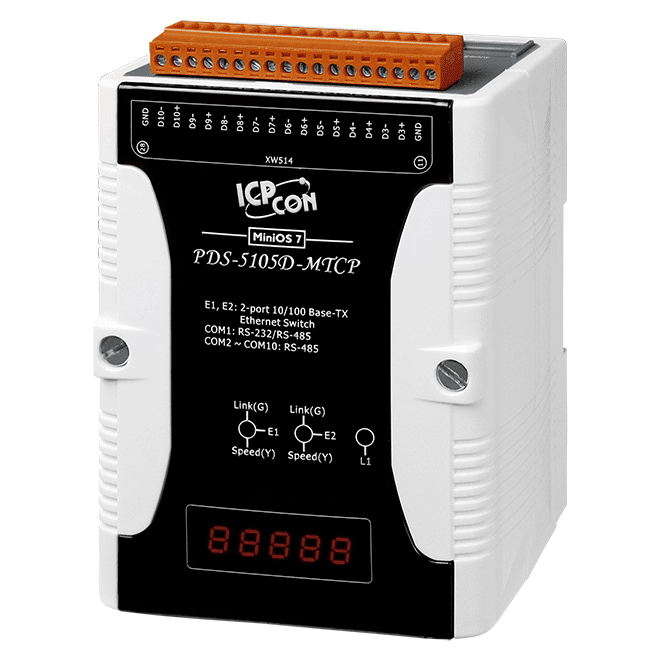

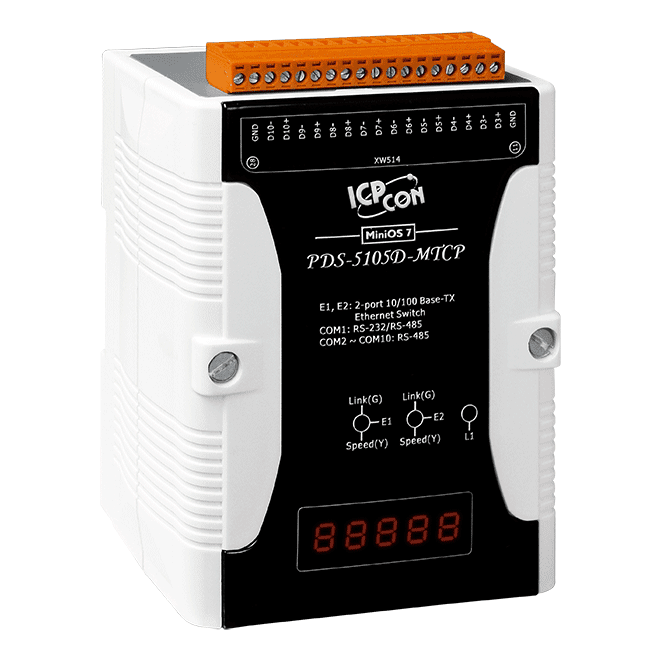

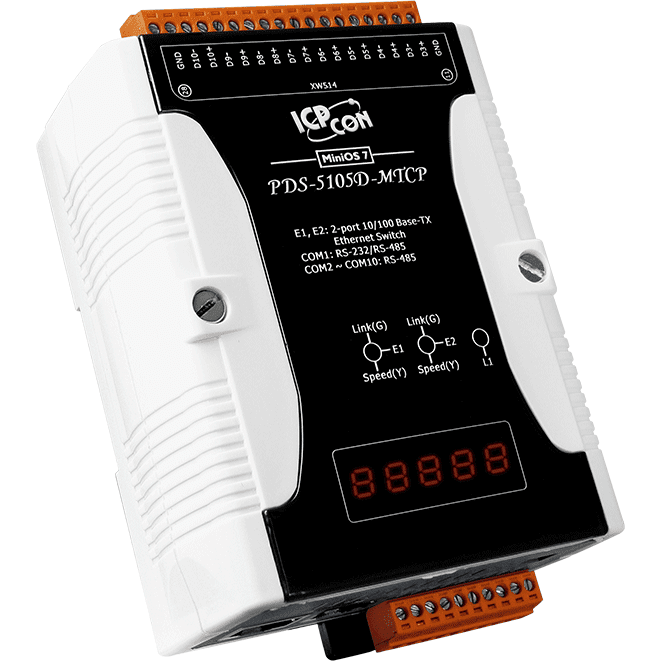

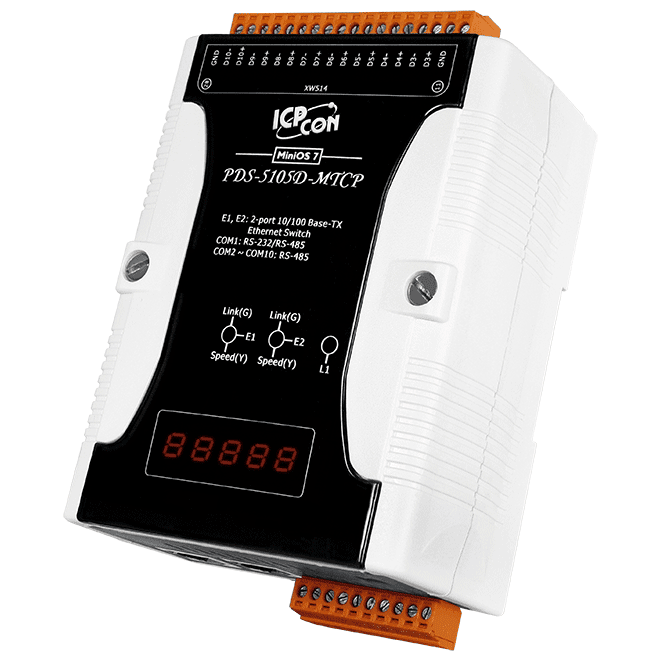

PDS-5105D-MTCP Serial-to-Ethernet Device Server, 10x RS-485, Modbus TCP Gateway
Programmable device server linking 10 serial ports (one RS-232/485, nine RS-485) to Ethernet, with a 2-port switch, LAN bypass and Modbus TCP to RTU/ASCII gateway function.
- 1 RS-232/485 port and 9 RS-485 ports on a removable terminal block
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communication
- VxComm driver extends PC COM ports; supports 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- 2-port 10/100Base-TX Ethernet switch with LAN bypass for uninterrupted network operation
- Built-in MiniOS7 boots in one second; Xserver programming structure
- Watchdog timer suitable for harsh environments
4 903,37 kr per stk.
| 1–9 stk. | 4 903,37 kr | |
|---|---|---|
| 10–30 stk. | 4 757,93 kr | −3 % |
| 31+ stk. | 4 654,05 kr | −5 % |
Produktinformasjon "PDS-5105D-MTCP Serial-to-Ethernet Device Server, 10x RS-485, Modbus TCP Gateway"
The PDS-5105D-MTCP is a programmable device server, also known as a Serial-to-Ethernet gateway, for bringing RS-232/485 devices onto an Ethernet network. The VxComm driver and utility map its built-in COM ports to standard COM ports on a PC, so existing serial software can keep working with networked hardware.
Programming is handled through the Xserver structure, and the built-in MiniOS7 real-time operating system boots in about one second. The unit can also act as a Modbus TCP to RTU/ASCII gateway, which suits SCADA and HMI systems that speak Modbus/TCP.

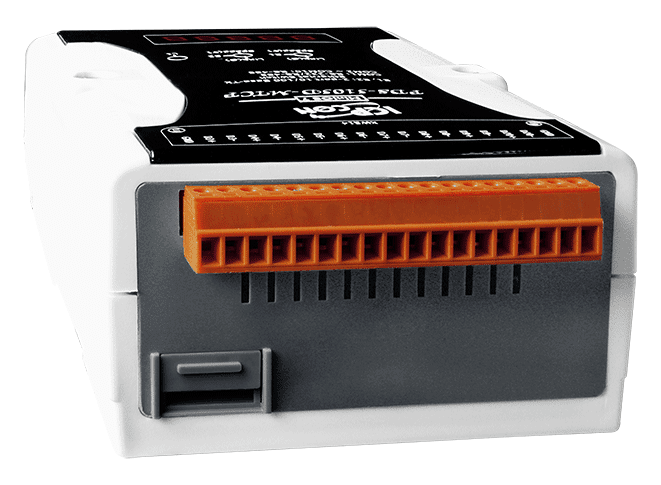

Ethernet cabling can be daisy-chained through the integrated 2-port 10/100Base-TX switch. If the unit goes offline because of a software, hardware or power failure, the LAN bypass takes over so essential network traffic continues. The removable terminal block simplifies field wiring.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232/485, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 10 serial, 2 Ethernet |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Fire retardant (UL94-V0) |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186 or compatible (16-bit and 80 MHz) |
| EEPROM | 16 KB |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles. |
| SRAM | 512 KB |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet 5 x digit 7 Segment |
| Ethernet | |
| Ports | 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass, RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| COM Ports | |
| Ports | 1 x 3-wire RS-232/RS-485 9 x RS-485 |
| Baud Rate | 115200 bps Max. @ 10 Ports, half-duplex, 80% loading |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM10 |
| Stop Bit | 1 : for COM1 and COM2 1,2 : for COM3 ~ COM10 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.18 A @ 24 VDC |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (mm) | 91 mm x 52 mm x 131 mm (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
