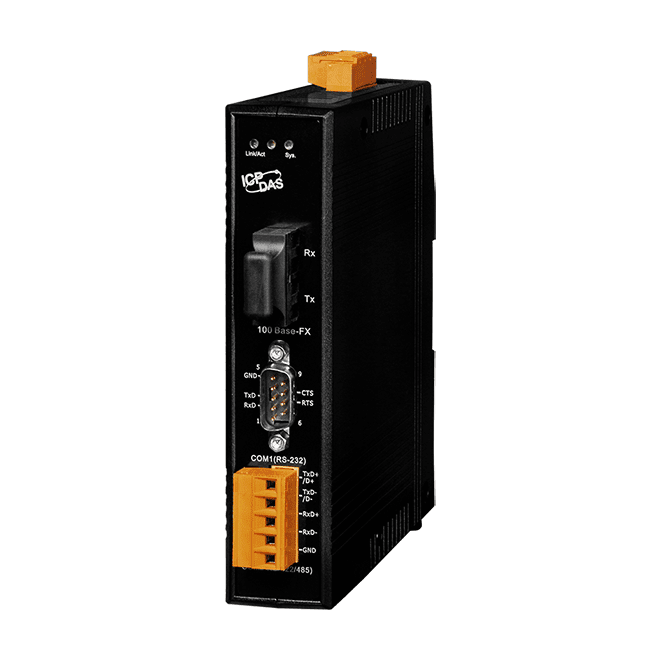

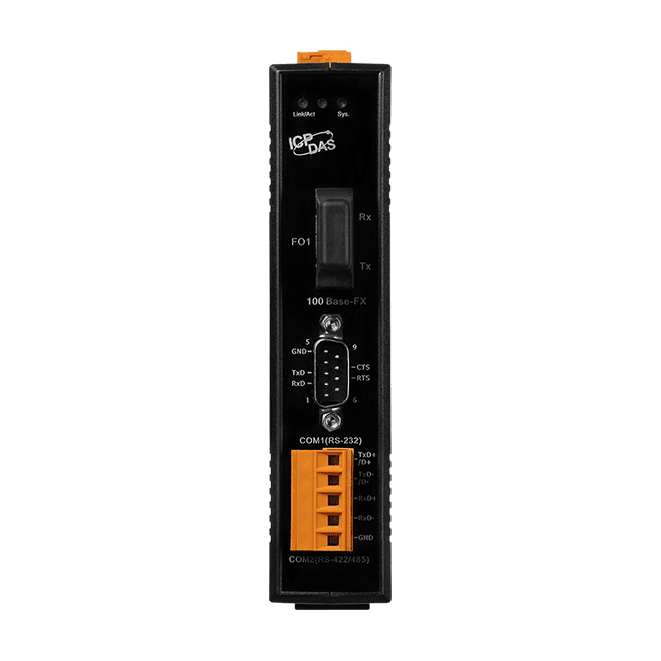

PDS-220FCS-60 Serial-to-Fiber Device Server, RS-232/422/485 with Modbus Gateway
Programmable device server linking one RS-232 and one RS-422/485 serial port to a 100Base-FX single-mode SC fibre link over 60 km, with a built-in Modbus TCP to RTU/ASCII gateway.
- Adds single-mode SC fibre connectivity (60 km) to RS-232 and RS-422/485 serial devices
- Built-in Modbus TCP to RTU/ASCII gateway
- Programmable device server running the built-in MiniOS7
- Virtual COM extends COM ports; Virtual Utility for 32/64-bit Windows 7 SP1/10/2012/2016
- Serial port +/-4 kV ESD protection and Self-Tuner ASIC controller on the RS-485 port
- Watchdog timer for use in harsh environments
3 261,99 kr per stk.
| 1–9 stk. | 3 261,99 kr | |
|---|---|---|
| 10–30 stk. | 3 158,10 kr | −3 % |
| 31+ stk. | 3 095,77 kr | −5 % |
Produktinformasjon "PDS-220FCS-60 Serial-to-Fiber Device Server, RS-232/422/485 with Modbus Gateway"
The PDS-220FCS-60 CR extends RS-232 and RS-422/485 serial devices over a single-mode SC fibre link rated for 60 km. Fibre carries signals with lower loss and no crosstalk, and it is far less affected by electrical noise from motors, relays and welding equipment, so it suits runs where copper cabling is impractical.
Beyond the fibre uplink, the unit is a programmable device server built on the MiniOS7 platform, with a Modbus TCP to RTU/ASCII gateway included. Virtual COM support extends COM ports, and the Virtual Utility supports 32 and 64-bit Windows 7 SP1, 10, 2012 and 2016.

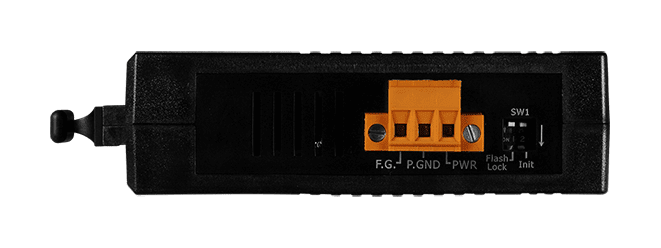

The unit is designed for DIN-rail installation with a fire-retardant plastic casing, an operating range of -25 ~ +75 °C and a power input of +12 ~ 48 VDC with reverse polarity protection. Its watchdog timer and ESD protection on the serial port support use in harsh environments.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Device server |
|---|---|
| Interface: | 100Base-FX, RS-232, RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 serial + 1 fibre (SC) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Fire retardant plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycle |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet |
| Ethernet | |
| Ports | 100 Base-FX (SC connector) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.14 A @ 24 VDC |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Fire Retardant Plastic |
| Dimensions (mm) | 31 mm x 157 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
