PCIe-S148/D2 PCI Express Serial Board, 8-Port RS-422/485 with CA-9-6210 Cable
PCI Express x1 serial card with eight RS-422/485 ports, a 256-byte hardware FIFO per port and speeds up to 921600 bps. This variant ships with the CA-9-6210 cable.
- PCI Express x1 interface with a short card design
- Eight RS-422/485 ports for multi-device serial connections
- 256-byte hardware FIFO for each port
- Full-duplex communication at 2400 - 921600 bps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Mark, Space
- Automatic COM port number selection, or selection under software control
2 420,52 kr per stk.
| 1–9 stk. | 2 420,52 kr | |
|---|---|---|
| 10–30 stk. | 2 347,80 kr | −3 % |
| 31+ stk. | 2 306,25 kr | −5 % |
Produktinformasjon "PCIe-S148/D2 PCI Express Serial Board, 8-Port RS-422/485 with CA-9-6210 Cable"

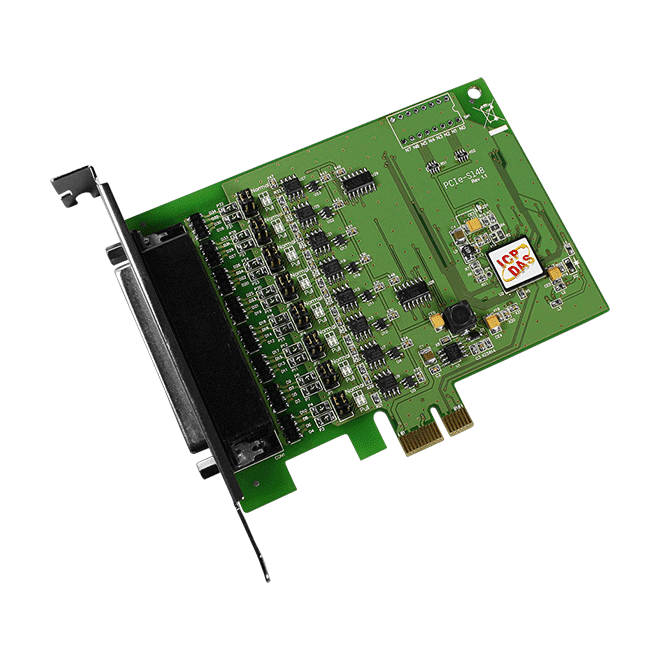

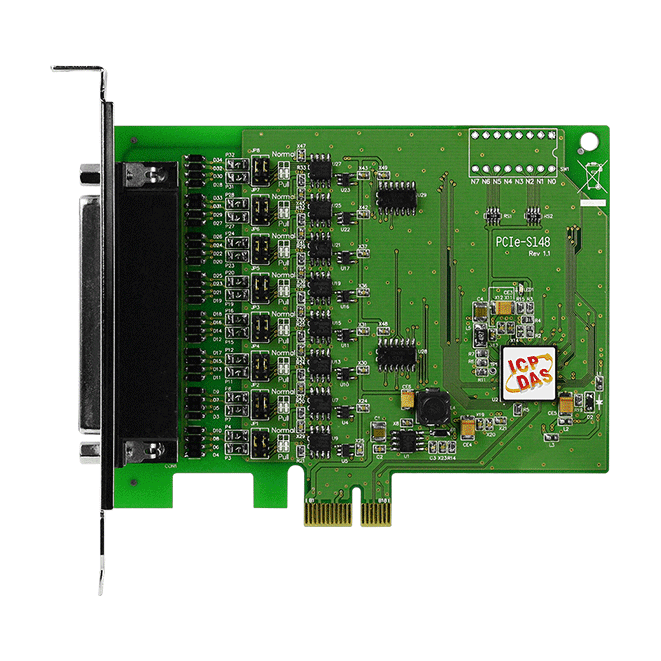

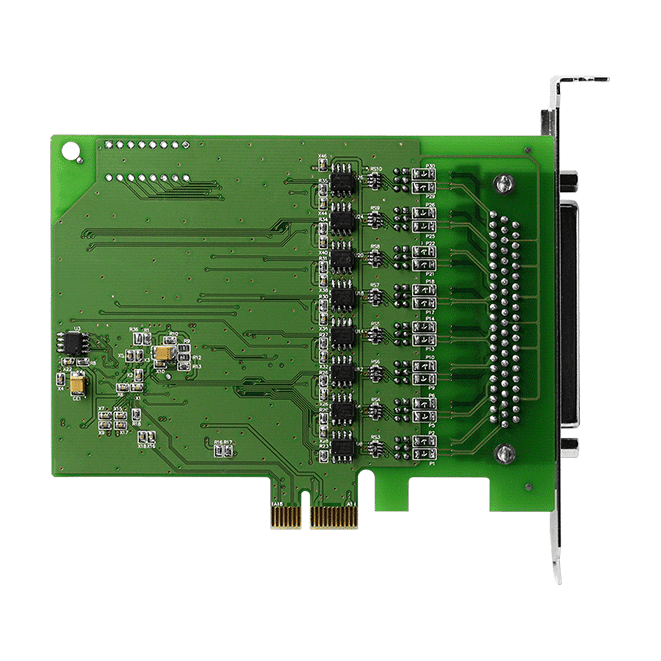

PCIe-S148/D2 CR adds eight RS-422/485 serial ports to a PC through a single PCI Express x1 slot. Each port has its own 256-byte hardware FIFO and supports full-duplex communication at up to 921600 bps, so it suits engineers who need several serial links on one host without relying on onboard COM ports.
COM port numbers can be assigned automatically by the driver, or chosen under software control where a fixed numbering scheme is required. The card uses a short design and is supplied with the CA-9-6210 cable, which distinguishes this order code from the CA-PC62M D-Sub connector variant.
Typical targets include bar code readers, serial printers, intelligent sensors and instrumentation, as well as computers and other equipment fitted with an RS-422/485 port.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | PCI Express x1 |
| Ports: | 8 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|

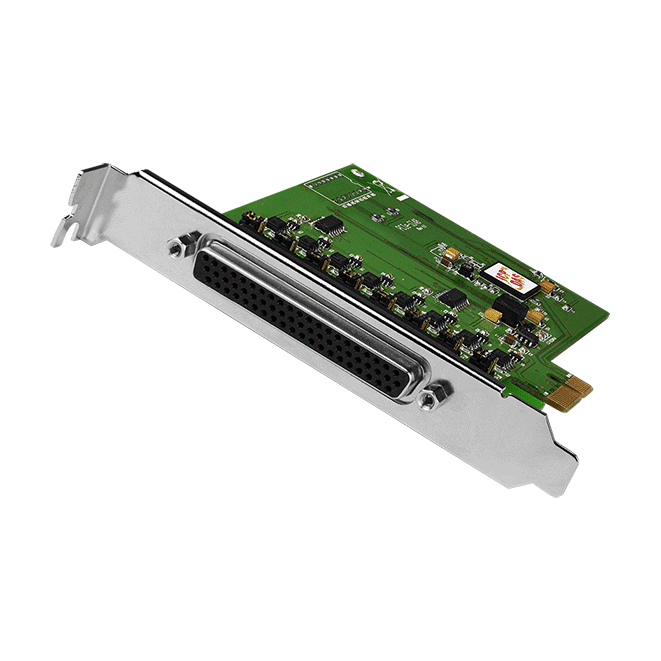

| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, GND / RS-485: Data+, Data-, GND) |
| Baud Rate | 2400 - 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 93.1 x 115.7 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
