PCIe-S112 PCI Express Serial Board, 2-port RS-232 with 256-byte FIFO
PCI Express x1 serial card with two RS-232 ports, a 256-byte hardware FIFO per port and speeds up to 921600 bps for connecting industrial serial devices.
- PCI Express x1 interface with a short card design
- Two RS-232 ports on DB9 male connectors
- 256-byte hardware FIFO for each port
- Transmission speed up to 921600 bps with full-duplex communication
- Baud rate 300 ~ 921600 bps, with 5 to 8 data bits and 1, 1.5 or 2 stop bits
- Parity options: None, Even, Odd, Mark and Space
1 049,24 kr per stk.
| 1–9 stk. | 1 049,24 kr | |
|---|---|---|
| 10–30 stk. | 1 018,07 kr | −3 % |
| 31+ stk. | 997,30 kr | −5 % |
Produktinformasjon "PCIe-S112 PCI Express Serial Board, 2-port RS-232 with 256-byte FIFO"

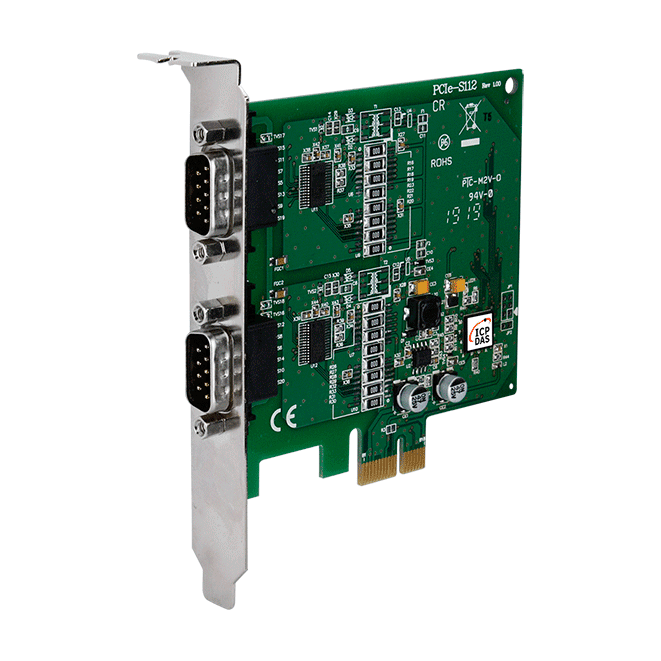

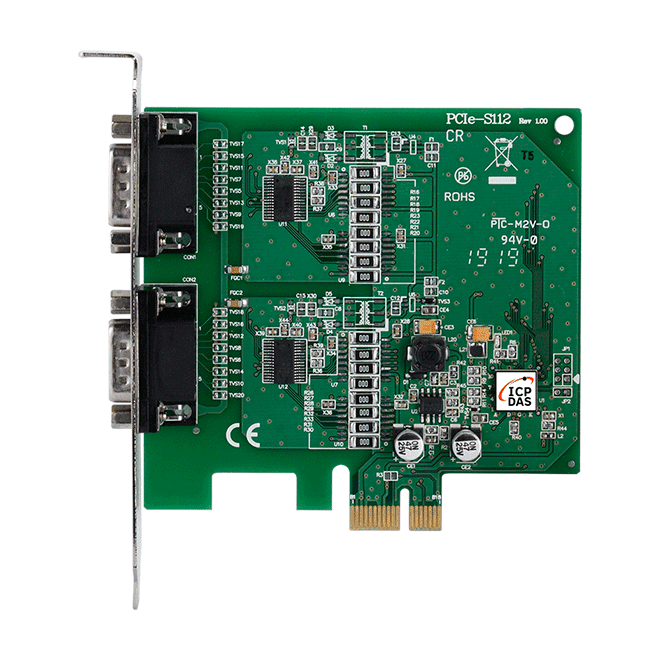

The PCIe-S112 CR is a PCI Express x1 serial communication card that adds two RS-232 ports to a host PC. Each port has a 256-byte hardware FIFO and supports full-duplex communication at up to 921600 bps, which suits engineers who need reliable serial links to several devices from one slot.
It is designed for intelligent devices such as bar code readers, serial printers, intelligent sensors, instrumentation and any equipment with an RS-232 port. The short card design helps it fit compact host systems. The card is listed with CE, UKCA, FCC, RoHS and WEEE certification.
Drivers are provided for 32/64-bit Windows XP/2003/2008/7/8/10 and Linux kernels from 2.6.31 to 5.16.0. For a version with photocoupler isolation and ESD protection on the data lines, see the PCIe-S112i.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Serial communication board |
|---|---|
| Interface: | PCI Express x1 |
| Ports: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | 2 x DB9 (Male) |
| COM Ports | |
| Ports | 2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 300 ~ 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 94 x 109 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
