PCI-822LU Universal PCI Multifunction Board, 250 kS/s 12-bit AI, 32-ch
High-speed universal PCI multifunction board with 32 analogue inputs sampling at up to 250 kS/s, 2 analogue outputs and 32 programmable digital I/O channels.
- Universal PCI interface compatible with 3.3 V and 5 V PCI bus
- 32 single-ended or 16 differential analogue inputs, jumper selectable
- 12-bit A/D at up to 250 kS/s with 8 K-sample hardware FIFO
- Software and pacer triggering with polling or interrupt data transfer
- MagicScan controller offloads channel, gain, settling and conversion tasks from the CPU
- Two 16-bit analogue outputs with ±10 V, ±5 V, ±2.5 V and ±1.25 V bipolar input ranges on the analogue input side
4 332,00 kr per stk.
| 1–9 stk. | 4 332,00 kr | |
|---|---|---|
| 10–30 stk. | 4 207,34 kr | −3 % |
| 31+ stk. | 4 124,23 kr | −5 % |
Produktinformasjon "PCI-822LU Universal PCI Multifunction Board, 250 kS/s 12-bit AI, 32-ch"

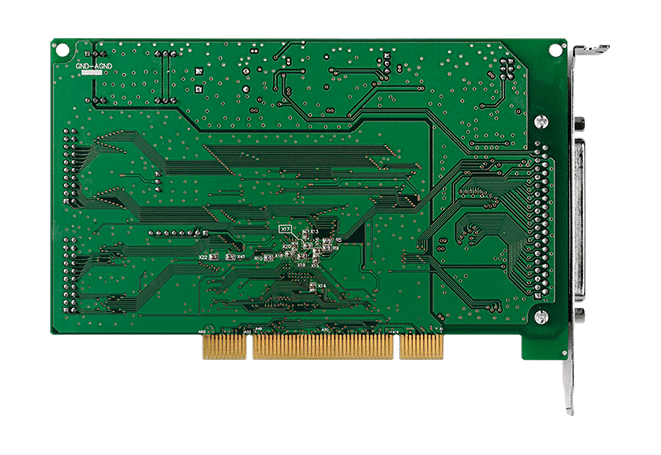

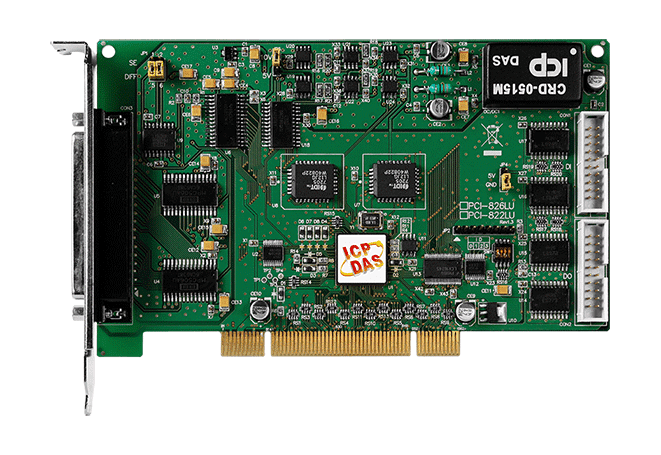

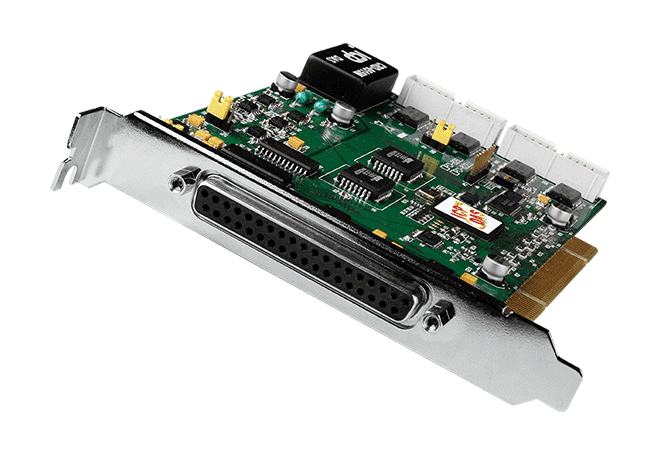

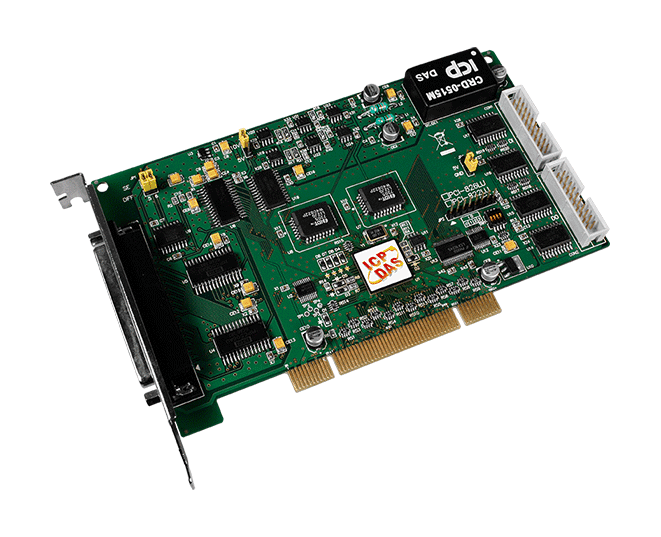

The PCI-822LU CR is a PCI multifunction board for engineers who need fast analogue acquisition alongside digital I/O in a single card. Its 12-bit A/D converter runs at up to 250 kS/s, and an 8 K-sample hardware FIFO buffers readings so the host PC can keep up with the data stream.
Input configuration is selected by jumper, giving either 32 single-ended or 16 differential analogue inputs with programmable gain (1, 2, 4, 8). The built-in MagicScan controller handles channel selection, gain, settling time and conversion triggering, which reduces the processing load on the CPU, even when scanning channels with different gain codes.
The board also provides two 16-bit analogue outputs and 32 bi-directional 5 V/TTL digital channels with pull-high and pull-low resistors and digital output readback. A Card ID switch lets software identify individual boards when two or more PCI-822LU cards are installed in one computer. The ordering code includes one CA-4002 D-Sub connector.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
| Product type: | PCI multifunction DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Analog inputs: | 32 single-ended / 16 differential |
| Analog outputs: | 2 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Resolution | 12-bit |
| Accuracy | 0.1% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | 250 kS/s. Max. |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | 15 ppm/°C of FSR |
| FIFO Size | 8192 samples |
| Trigger Mode | Software, Pacer |
| Data Transfer | Polling, Interrupt |
| Analog Output | |
| Channels | 2 |
| Range | -5 V ~ 5 V , -10 V ~ 10 V, 0 ~ 10 V, 0 ~ 5 V |
| Resolution | 16-bit |
| Accuracy | ±6 LSB |
| Response Time | 250 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.7 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 32 (Bi-Direction) |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Pull-high/Pull-low Resistors | Yes |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 32 (Bi-Direction) |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 40 mA Source: 20 mA |
| Response Speed | 1.0 MHz (Typical) |
| DO Readback | Yes |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit |
| Data Bus | 16-bit |
| Power | |
| Consumption | 1 A @ +5 V (Max.) |
| Mechanical | |
| Dimensions (mm) | 150 X 170 X 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
