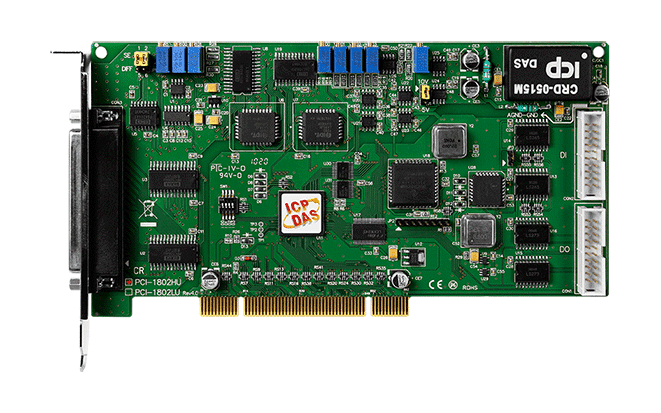

PCI-1802HU Universal PCI Multifunction DAQ Board, 44 kS/s 32-ch 12-bit AI
PCI-1802HU CR universal PCI data acquisition board: 32 single-ended or 16 differential 12-bit analogue inputs at up to 44 kS/s, plus 2 analogue outputs and 16 digital inputs and outputs.
- 44 kS/s maximum, 12-bit AD converter with an 8192-sample FIFO
- 32 single-ended or 16 differential analogue input channels, jumper selectable
- Built-in MagicScan controller for multi-channel scanning
- 2-channel 12-bit analogue output, bipolar ±5 V or ±10 V
- 16-channel 5 V/TTL digital input with pull-high and pull-low resistors
- 16-channel 5 V/TTL digital output with static update
8 019,92 kr per stk.
| 1–9 stk. | 8 019,92 kr | |
|---|---|---|
| 10–30 stk. | 7 780,99 kr | −3 % |
| 31+ stk. | 7 614,77 kr | −5 % |
Produktinformasjon "PCI-1802HU Universal PCI Multifunction DAQ Board, 44 kS/s 32-ch 12-bit AI"
The PCI-1802HU CR is a multifunction data acquisition board for PCs with a universal PCI slot. It combines a 12-bit analogue input section sampling at up to 44 kS/s with two 12-bit analogue outputs and 5 V/TTL digital I/O, so a single card can cover most acquisition and control tasks on a host PC.
Choose this variant when you need the 44 kS/s sampling rate rather than the 330 kS/s of the PCI-1802LU. Each analogue input can be configured for a wide range of gains and bipolar or unipolar ranges, and the MagicScan controller handles multi-channel scanning in hardware. The 8192-sample FIFO buffers data during acquisition.
- Supports a 4-bit Card ID switch so software can identify each card when two or more are installed in one computer.
- Includes one CA-4002 D-Sub connector for field wiring.
- Software support covers Linux, DOS and Windows, with a DLL, an ActiveX control and sample programs for several languages and LabVIEW.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
| Product type: | PCI multifunction DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1802LU：330 kS/s. Max. PCI-1802HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±2 ppm/°C of FSR |
| FIFO Size | 8192 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | Bipolar:±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Software |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 200 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
