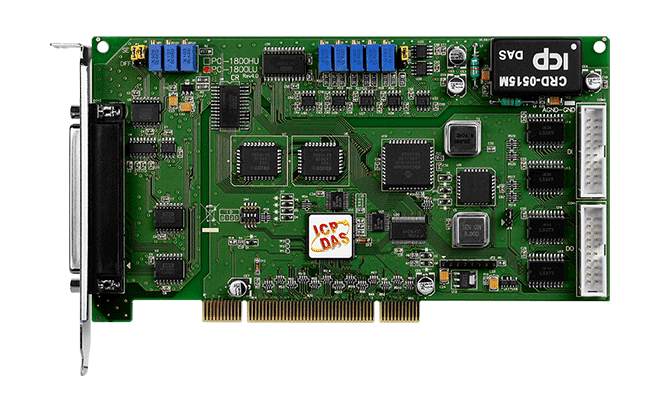

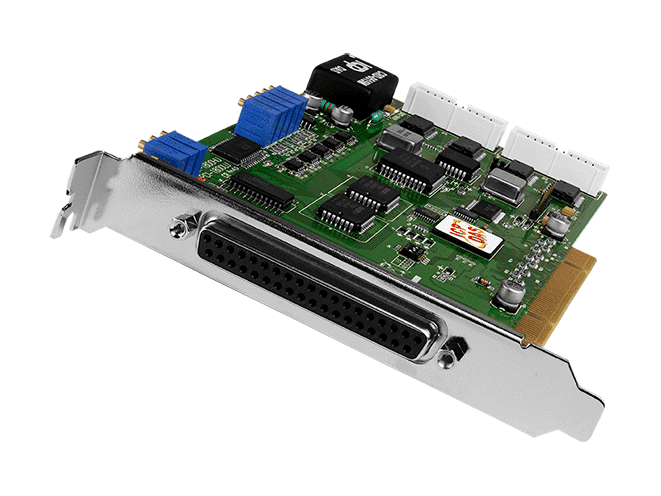

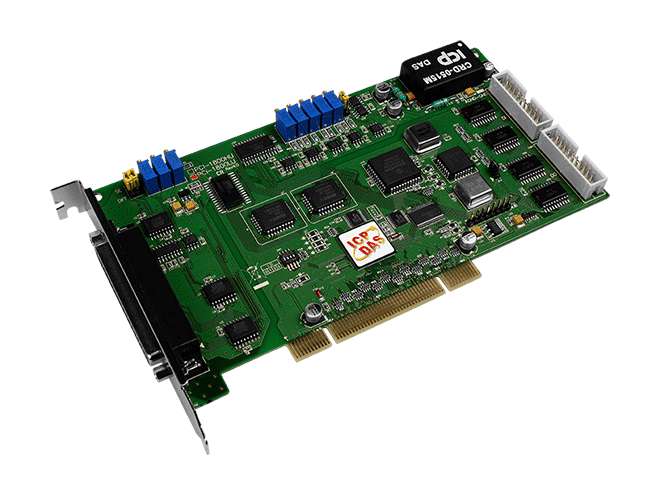

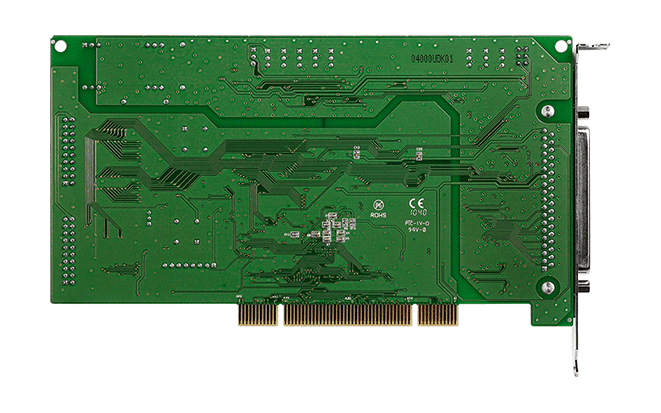

PCI-1800LU/S Universal PCI Multifunction DAQ Board, 330 kS/s 16-ch AI
A 330 kS/s, 16-channel, 12-bit analogue input PCI multifunction board with 2 analogue outputs and 16 DI and 16 DO TTL channels, supplied with a DB-8225 terminal board.
- Up to 330 kS/s, 12-bit A/D with 16 single-ended or 8 differential analogue inputs
- MagicScan controller manages channel scanning with a per-channel gain code at full sampling rate
- Two 12-bit analogue outputs, ±5 V or ±10 V bipolar
- 16 TTL digital inputs with pull-high or pull-low resistors, plus 16 TTL digital outputs
- Universal PCI interface supporting 3.3 V and 5 V bus signalling, 32-bit, 33 MHz
- Software, programmable pacer and external (5 V/TTL) trigger modes with 1024-sample FIFO
7 136,90 kr per stk.
| 1–9 stk. | 7 136,90 kr | |
|---|---|---|
| 10–30 stk. | 6 918,74 kr | −3 % |
| 31+ stk. | 6 773,30 kr | −5 % |
Produktinformasjon "PCI-1800LU/S Universal PCI Multifunction DAQ Board, 330 kS/s 16-ch AI"
PCI-1800LU/S CR is a universal PCI data acquisition board for engineers who need fast multi-channel analogue input alongside digital I/O in a single PC slot. The 12-bit A/D converter samples at up to 330 kS/s and accepts 16 single-ended or 8 differential inputs, with software-selectable gain and ranges from bipolar ±10 V down to ±0.005 V and unipolar 0 to 10 V down to 0 to 0.01 V.
The MagicScan controller handles channel selection, gain setting, settling time, ADC triggering and data retrieval, so each channel in a scan can use its own gain code while the full scan still runs at up to 330 kS/s. Two 12-bit analogue outputs, 16 TTL digital inputs with selectable pull-high or pull-low resistors, and 16 TTL digital outputs complete the I/O set. A 4-bit Card ID switch lets software identify individual boards when two or more are installed in the same computer.
This ordering code includes a DB-8225 terminal board and a CA-3710 D-Sub cable, so field wiring can be terminated without a separate connector kit. The 330 kS/s model is the faster variant in the LU/HU pair; the PCI-1800HU/S CR offers the same channel count at 44 kS/s. SDK support covers DLLs, an ActiveX control and sample programs for several development environments, including Visual Basic, C#.NET and LabVIEW.
Applications
- High-speed data acquisition systems
- Process monitoring and control
- Vibration analysis
| Product type: | PCI DAQ multifunction board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 16 SE / 8 Diff |
| Analog outputs: | 2 |
| Power input: | +5 V, 300 mA |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 16 single-ended/8 differential |
| Range | Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1800LU：330 kS/s. Max. PCI-1800HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±2 ppm/°C of FSR |
| FIFO Size | 1024 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | Bipolar:±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 200 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
