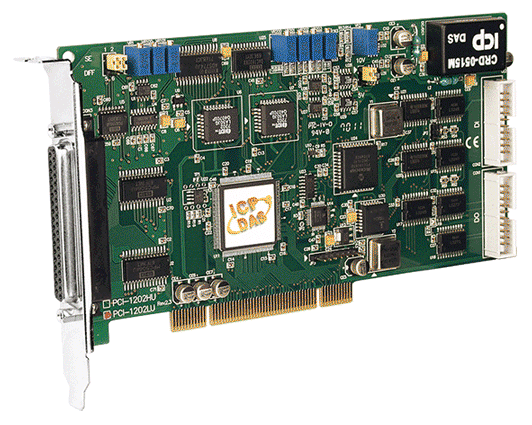

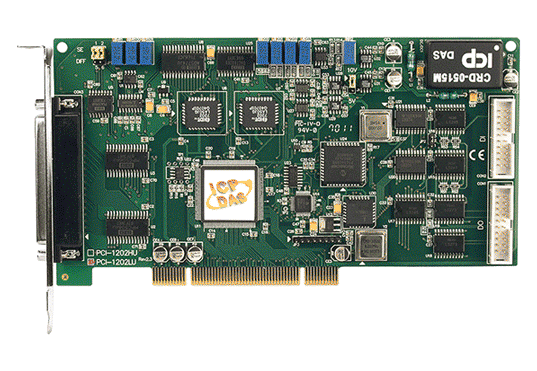

PCI-1202LU/8K Universal PCI DAQ Board, 110 kS/s 32-ch 12-bit AI, 8K FIFO
Universal PCI multifunction DAQ board with 32 single-ended analog inputs at up to 110 kS/s and an 8K-word FIFO, for high-speed acquisition on 3.3 V and 5 V PCI slots.
- Up to 110 kS/s sampling with 12-bit resolution on 32 single-ended or 16 differential analog inputs
- 8K-word hardware FIFO to reduce data overflow in multi-tasking Windows and Linux environments
- Universal PCI interface compatible with 3.3 V and 5 V bus slots, 32-bit, 33 MHz
- Software, internal programmable pacer and external 5 V/TTL trigger modes, with MagicScan and continuous capture
- 16 digital inputs with pull-high and pull-low resistors, plus 16 digital outputs at 5 V/TTL
- Two analog outputs at ±5 V or ±10 V with 0.06% of FSR accuracy
5 526,68 kr per stk.
| 1–9 stk. | 5 526,68 kr | |
|---|---|---|
| 10–30 stk. | 5 360,47 kr | −3 % |
| 31+ stk. | 5 246,19 kr | −5 % |
Produktinformasjon "PCI-1202LU/8K Universal PCI DAQ Board, 110 kS/s 32-ch 12-bit AI, 8K FIFO"
PCI-1202LU/8K CR is a 12-bit PCI data acquisition board for engineers who need fast, gap-free sampling inside a PC. It offers 32 single-ended or 16 differential analog inputs sampled at up to 110 kS/s, with an 8K-word hardware FIFO that helps prevent data overflow when the host is busy with other tasks under Windows or Linux.
The universal PCI interface works in both 3.3 V and 5 V bus slots. The board includes 16 digital inputs with pull-high and pull-low resistors, 16 digital outputs at 5 V/TTL levels, and two analog outputs. Acquisition can be started by software, the internal programmable pacer or an external 5 V/TTL trigger, with MagicScan control and continuous capture support. A four-bit Card ID switch helps identify boards in multi-card systems.
The package includes one CA-4002 D-Sub connector. The board is suited to high-speed data acquisition, process monitoring and control, vibration analysis, and generating digital patterns from the digital I/O port.
Applications
- High-speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from the digital I/O port
| Product type: | DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 Male 20-bit ribbon x 2 |
| Card ID | Yes (4-bit) for Version 4.0 or above |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | PCI-1202LU : Gain: 0.5, 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V PCI-1202HU : Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.1% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1202LU : 110 kS/s. Max. PCI-1202HU : 44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 Pf |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| FIFO Size | 1024 samples |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | ±5 V, ±10 V |
| Resolution | 12-bit |
| Accuracy | 0.06% of FSR ±1 LSB @ 25 °C, ±10 V |
| Response Time | 1.0 MHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 300 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 196 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
