PCI-1002HU Universal PCI DAQ Board, 44 kS/s 32-ch 12-bit Analogue Input
Universal PCI multifunction DAQ board with 32 single-ended or 16 differential 12-bit analogue inputs at up to 44 kS/s, high-gain ranges down to ±0.01 V, and 16 DI and 16 DO 5 V/TTL channels.
- Up to 44 kS/s, 12-bit analogue input sampling on 32 single-ended or 16 differential channels
- High-gain ranges (gain 1, 10, 100, 1000) with bipolar spans from ±10 V to ±0.01 V
- Universal PCI (3.3 V/5 V), 32-bit, 33 MHz bus interface with Card ID SMD switch
- 16-channel 5 V/TTL digital inputs with pull-high and pull-low resistors
- 16-channel 5 V/TTL digital outputs with static update operation
- Internal programmable pacer and external 5 V/TTL trigger modes
3 293,15 kr per stk.
| 1–9 stk. | 3 293,15 kr | |
|---|---|---|
| 10–30 stk. | 3 189,27 kr | −3 % |
| 31+ stk. | 3 126,94 kr | −5 % |
Produktinformasjon "PCI-1002HU Universal PCI DAQ Board, 44 kS/s 32-ch 12-bit Analogue Input"

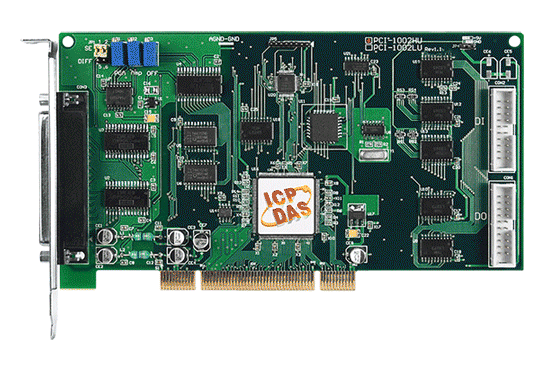

PCI-1002HU CR is the high-gain, 44 kS/s variant of the PCI-1002 series, a universal PCI multifunction board for acquiring analogue signals alongside digital I/O on a PC. Its 3.3 V/5 V universal PCI interface suits a wide range of host systems, and it supports Card ID via an SMD switch for identifying cards in multi-board setups.
The analogue front end offers 32 single-ended or 16 differential channels at 12-bit resolution, with gains of 1, 10, 100 and 1000 and bipolar ranges from ±10 V down to ±0.01 V. Sixteen 5 V/TTL digital inputs with pull-high and pull-low resistors let an unconnected or interrupted input be given a defined state, and sixteen 5 V/TTL digital outputs are available for control tasks. The board includes one CA-4002 D-Sub connector.
Software support covers Linux, DOS and Windows, with a DLL, an ActiveX control and sample programs for a range of development languages, including C#.NET, Visual Basic.NET and LabVIEW, to help users build their own applications.
Applications
- Laboratory automation
- Production test
- Sensor interface
| Product type: | PCI multifunction DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 32 single-ended / 16 differential |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | PCI-1002LU： Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V PCI-1002HU： Gain: 1, 10, 100, 1000 Bipolar Range: ±10 V, ±1 V, ±0.1 V, ±0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1002LU：110 kS/s. Max. PCI-1002HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 Pf |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling, Interrupt |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA Source: 0.8 mA |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 960 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
