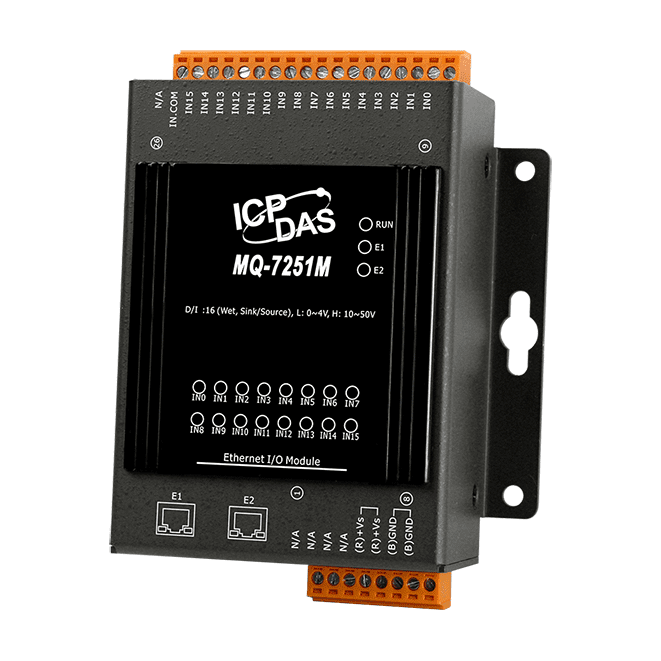

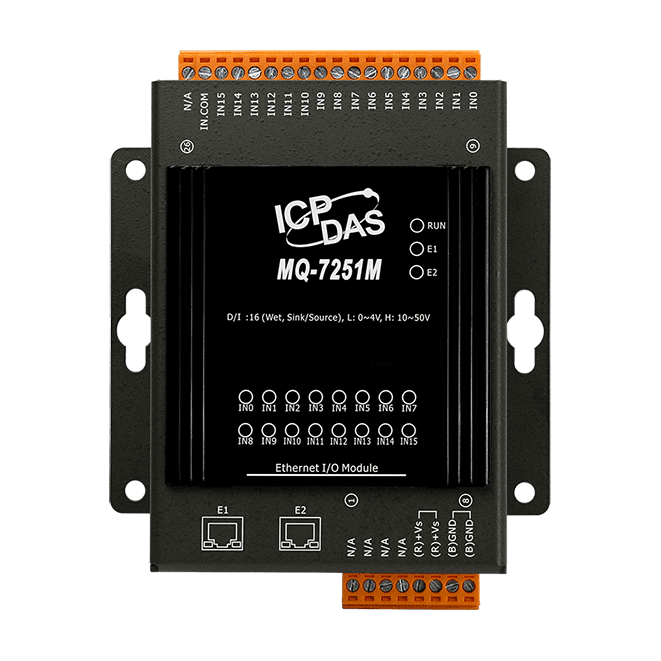

MQ-7251M MQTT I/O Module, 16-ch DI with 2-port Ethernet Switch
Ethernet I/O module with 16 wet-contact digital inputs, MQTT 3.1 and Modbus TCP support, and a 2-port switch with LAN bypass for daisy-chain wiring in IIoT installations.
- 16 wet-contact digital input channels with sink/source compatibility
- MQTT 3.1 and Modbus TCP protocol support
- Built-in web server with web HMI for configuration and status viewing

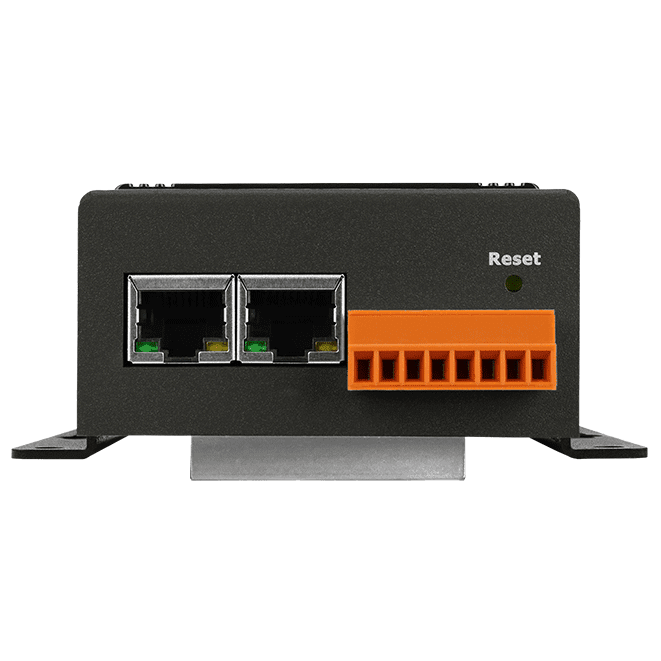

- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain wiring
- Dual watchdog: module and communication (programmable)
- Optical isolation for 2500 VDC transient overvoltage protection, 1500 VDC isolation rating
2 638,68 kr per stk.
| 1–9 stk. | 2 638,68 kr | |
|---|---|---|
| 10–30 stk. | 2 555,57 kr | −3 % |
| 31+ stk. | 2 503,63 kr | −5 % |
Produktinformasjon "MQ-7251M MQTT I/O Module, 16-ch DI with 2-port Ethernet Switch"
The MQ-7251M brings 16 wet-contact digital inputs onto an Ethernet network, publishing their states over MQTT 3.1 or Modbus TCP for IIoT and automation systems. Its inputs accept sink or source wiring, so the module suits a wide range of digital sensors and switch contacts.
Configuration and monitoring are handled through a built-in web server with a web-based HMI, which can be opened in a standard browser on a computer or mobile device to check network connection status and I/O state. A 2-port 10/100 Base-TX switch with LAN bypass allows modules to be daisy-chained along a cable run, and dual watchdogs cover both the module and communications.

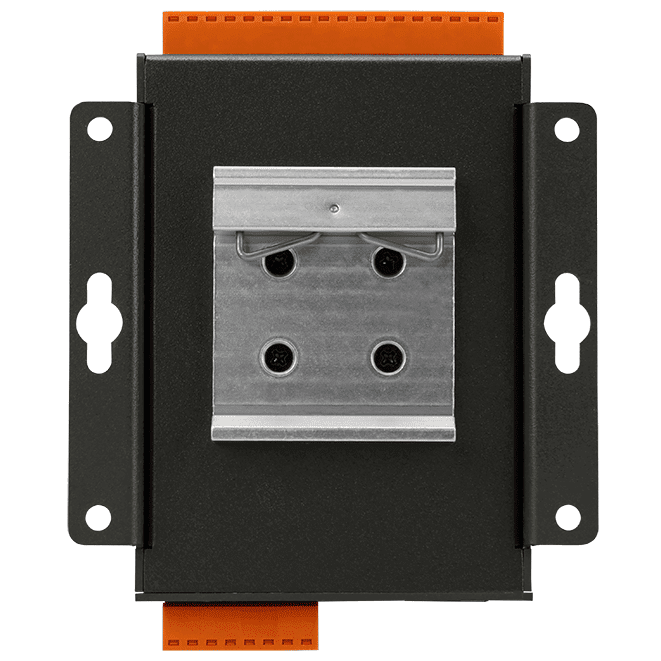

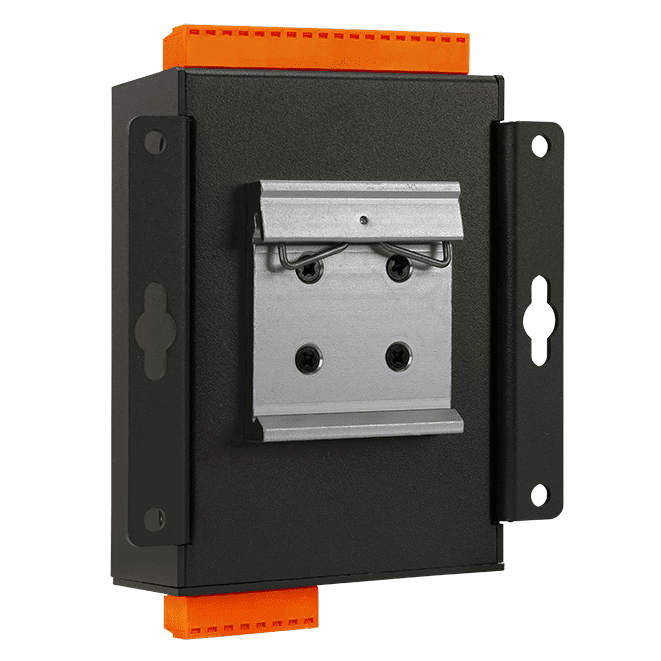

The module is housed in a metal casing and can be mounted on a DIN rail or on a wall. It is powered from +12 ~ +48 VDC with reverse polarity protection, and is rated for an operating temperature of -25 ~ +75 °C. Optical isolation provides 2500 VDC transient overvoltage protection, but there is no channel-to-channel isolation.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT 3.1 |
| Digital inputs: | 16 |
| Ports: | 2 |
| Isolation: | 1500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC max. |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| LAN bypass | Yes |
| Protocol | MQTT 3.1 Modbus TCP |
| Isolation | 1500 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.9 W max. |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
