M-7017R-A5-G High Voltage Analog Input Module, 8-ch ±50 V/±150 V
8-channel RS-485 analog input module for ±50 V and ±150 V voltage signals, with over-voltage and common-voltage protection, supporting Modbus RTU and DCON.
- 8 differential voltage inputs with ±50 V or ±150 V ranges
- Adjustable sampling rate: Normal Mode 10 Hz, Fast Mode 50 Hz
- ±200 VDC overvoltage and common-voltage protection
- 16-bit resolution; accuracy 0.1% of FSR in Normal Mode, 0.5% in Fast Mode
- 3000 VDC intra-module isolation and ±4 kV ESD contact protection per terminal
- 1 x RS-485 port supporting Modbus RTU and DCON, configured via software
2 659,46 kr per stk.
| 1–9 stk. | 2 659,46 kr | |
|---|---|---|
| 10–30 stk. | 2 576,35 kr | −3 % |
| 31+ stk. | 2 524,41 kr | −5 % |
Produktinformasjon "M-7017R-A5-G High Voltage Analog Input Module, 8-ch ±50 V/±150 V"

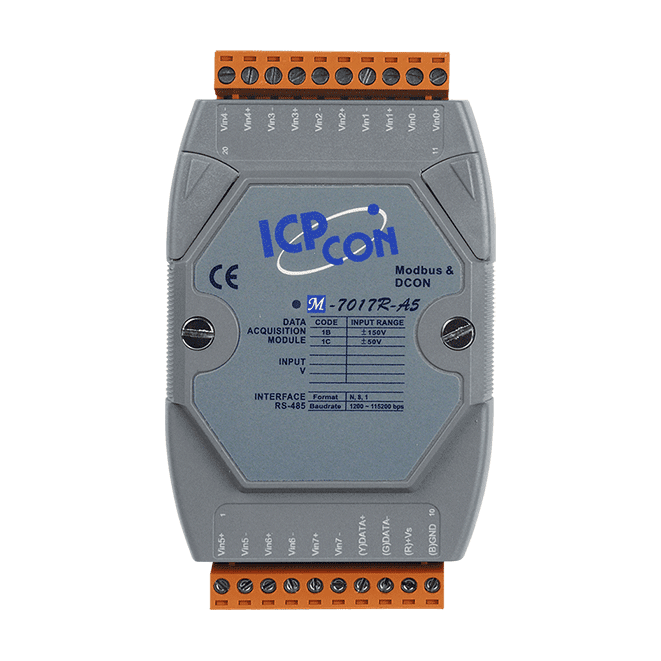

M-7017R-A5-G is an 8-channel analog input module for measuring high voltage signals on RS-485 networks. Each channel can be set to a ±50 V or ±150 V range, so it suits panels and equipment where standard low-voltage inputs are not enough.
The module offers a selectable sampling rate, switching between Normal Mode at 10 Hz and Fast Mode at 50 Hz. Protection is built in, with ±200 VDC overvoltage and common-voltage protection and 3000 VDC intra-module isolation. Its hardware matches the I-7017R-A5, and it communicates over Modbus RTU or DCON, selected through software.
This is the gray-cover variant, supplied as ordering code M-7017R-A5-G CR. It is intended for building, factory and machine automation, as well as remote maintenance, diagnosis and testing equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray cover |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 8 Differential |
| Type | Voltage |
| Range | ±50 V, ±150 V |
| Resolution | 16-bit |
| Accuracy | Normal Mode: 0.1% of FSR Fast Mode: 0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 50 Hz |
| Input Impedance | Voltage: 290 kΩ |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | ±200 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.6 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
