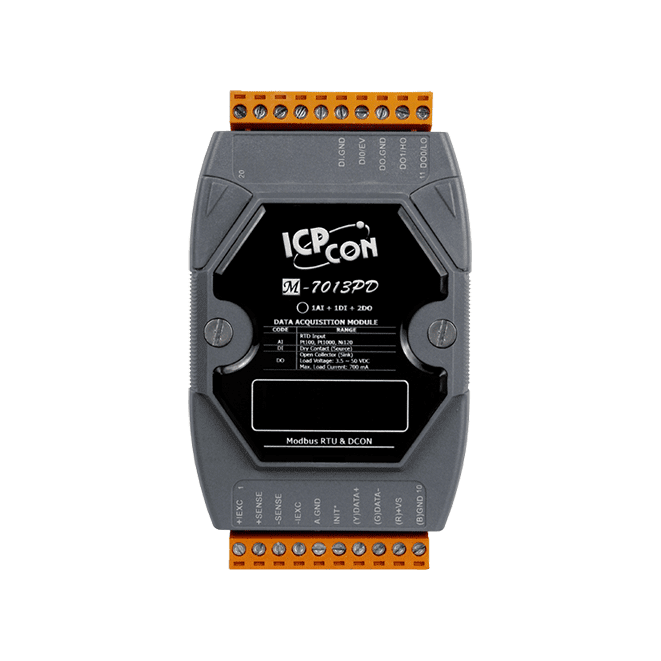

M-7013PD-G 1-ch RTD Input Module with DI, DO and LED Display
1-channel RTD input module for Pt100, Pt1000 and Ni120 sensors, with one digital input counter, two high/low alarm outputs and Modbus RTU or DCON over RS-485.
- 1-channel RTD input supporting Pt100, Pt1000 and Ni120 sensors
- 2/3/4-wire RTD connection with lead resistance elimination for 3- and 4-wire wiring
- Open-wire detection on the analogue input
- 1-channel digital input configurable as a 50 Hz event counter
- 2-channel open collector MOSFET digital outputs, sink type, with high/low alarm function
- 3000 VDC intra-module isolation
2 597,13 kr per stk.
| 1–9 stk. | 2 597,13 kr | |
|---|---|---|
| 10–30 stk. | 2 524,41 kr | −3 % |
| 31+ stk. | 2 472,46 kr | −5 % |
Produktinformasjon "M-7013PD-G 1-ch RTD Input Module with DI, DO and LED Display"
The M-7013PD-G measures temperature from a single RTD sensor, supporting Pt100, Pt1000 and Ni120 types with 2-, 3- or 4-wire connections. Open-wire detection and lead resistance elimination for 3- and 4-wire connections help keep readings reliable in long sensor runs.
Beyond the analogue input, the module adds one digital input that can operate as a 50 Hz event counter and two digital outputs that can be used as high/low alarms. Intra-module isolation is rated at 3000 VDC.
Configuration is carried out in software, and the module communicates over a single RS-485 port using Modbus RTU or DCON. A 5-digit 7-segment LED display and a power and communication indicator support local status checks. This is the gray cover variant.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | RTD Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
| Type | 5-Digit 7 Segment LED Display |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Ni120 |
| Resistance Measurement | 3.2 kΩ max. |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Sampling Rate | 10 Hz |
| Overvoltage Protection | ±5 VDC |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector, MOSFET |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
