LX-8031 Linux PAC, 0-slot LX-8000 with x86 Dual-core CPU
Linux-based PAC with a 1.0 GHz x86 dual-core CPU, two Gigabit Ethernet ports and RS-232/RS-485 serial ports, with no local I/O expansion slots.
- x86 dual-core CPU at 1.0 GHz running Linux kernel 3.2
- Two 10/100/1000 Base-TX Ethernet ports
- Five serial ports: RS-232, RS-485 and RS-232/485, with isolated options rated 3000 VDC
- VGA output with programmable LEDs and rotary switch on the HMI
- Redundant power inputs with one power relay (1 A @ 24 VDC) for alarm
- 2 GB DDR3 SDRAM, 32 GB SSD on mSATA and CF card slot
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "LX-8031 Linux PAC, 0-slot LX-8000 with x86 Dual-core CPU"

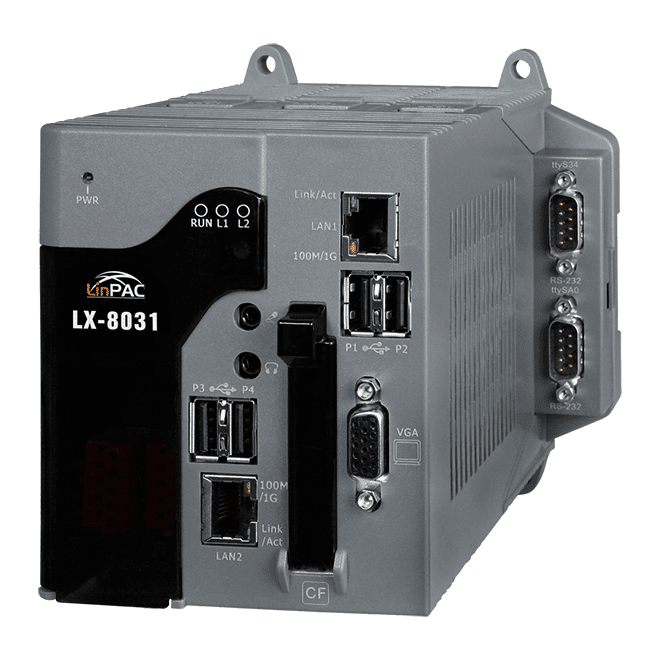

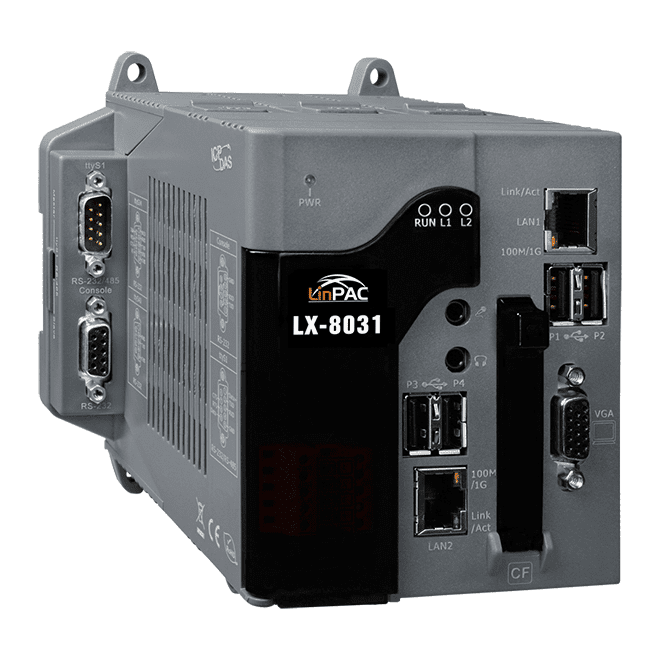

The LX-8031 CR is a 0-slot member of the LX-8000 Linux PAC series, combining a 1.0 GHz x86 dual-core processor, a VGA display output and a range of communication ports in a single DIN-rail or wall-mounted unit. It suits engineers who need an operator interface, data logging and control logic in one compact controller without local I/O modules.
Software is built on Linux kernel 3.2, with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing applications in GNU C. Programs can be stored on a CF card or USB mass storage device.
Connectivity includes two 10/100/1000 Base-TX Ethernet ports, one non-isolated RS-232 port, three isolated serial ports and four USB 2.0 host ports. Redundant power inputs with an alarm relay are provided, and the unit is rated from -25 ~ +75 °C.
Applications
- Integrated HMI and operator interface
- Data acquisition and control
- Multi-serial device communication
- Ethernet networking and remote monitoring
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (serial) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Spesifikasjoner
| Software | |
|---|---|
| OS | Linux kernel 3.2 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | x86 dual-core (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| Slots | 0 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | No |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Non-isolated) 1 x RS-232 (Console, 3000 VDC, Isolated) 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 12 W (0.5 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 137 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
