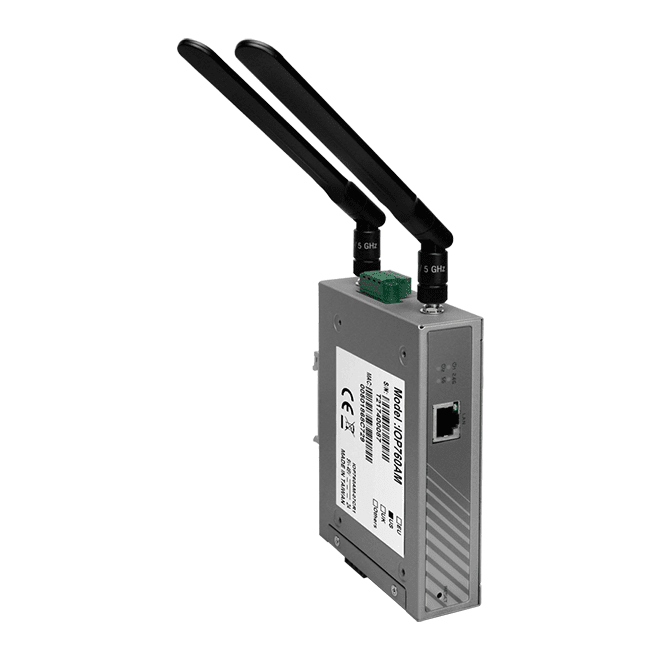

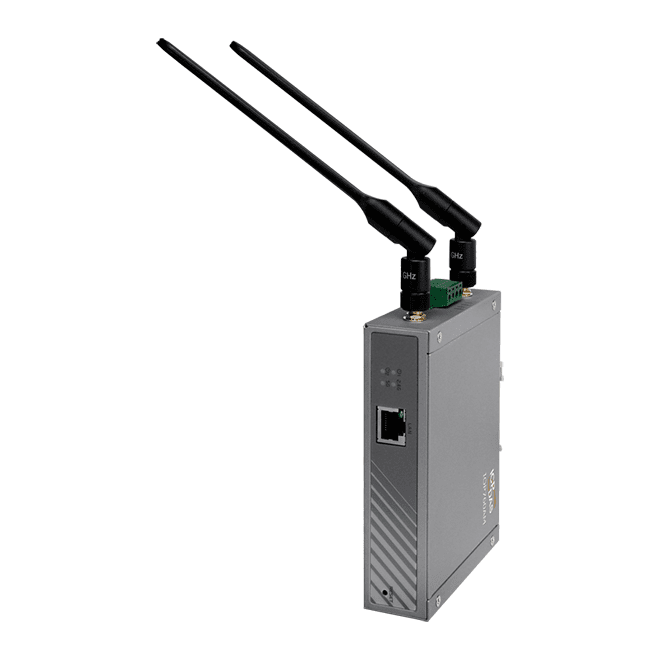

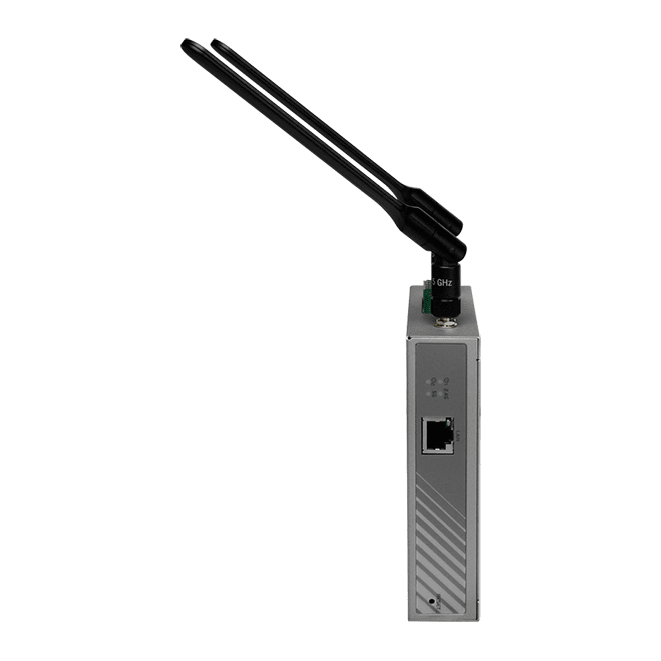

IOP760AM-EU Ethernet/UART to Wi-Fi Converter with Modbus RTU Serial Port
Wi-Fi converter that exchanges data between Wi-Fi, Ethernet and an RS-232/485 UART port, with Modbus RTU support, one digital input and one relay output. Category E plug type.
- Wi-Fi uplink or Ethernet WAN connection for flexible network access
- One RS-232/485 RJ12 port for Modbus RTU connection, with baud rates up to 115200 (RS-232) and 460800 (RS-485)
- IEEE 802.11a/b/g/n/ac Wi-Fi with 2.4 GHz and 5 GHz operation and roaming to a stronger access point
- One RJ45 FE LAN port for linking local Ethernet devices

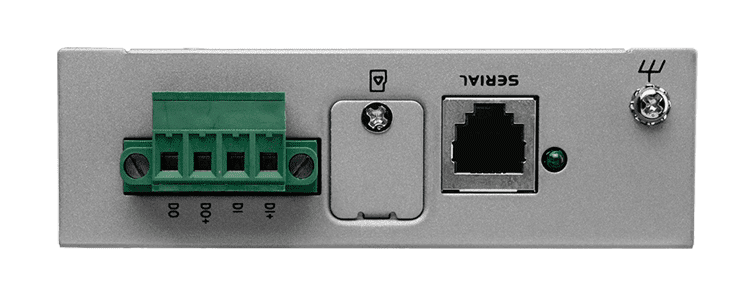

- One wet digital input and one relay output for device triggering or event reporting
- Solid metal body with DIN-rail or bracket installation
5 578,62 kr per stk.
| 1–9 stk. | 5 578,62 kr | |
|---|---|---|
| 10–30 stk. | 5 412,41 kr | −3 % |
| 31+ stk. | 5 298,14 kr | −5 % |
Produktinformasjon "IOP760AM-EU Ethernet/UART to Wi-Fi Converter with Modbus RTU Serial Port"
The IOP760AM-EU CR is a wireless converter that exchanges data between three interfaces: Wi-Fi, Ethernet and UART. Wi-Fi can serve as the uplink, or the unit can use an Ethernet WAN connection instead, while a local Ethernet switch can link further Ethernet devices through the unit.
Serial data can be sent directly over the RS-232/485 port or formatted using the Modbus protocol, which suits engineers connecting Modbus RTU devices to a wireless network. Users can choose IEEE 802.11 b/g/n for 2.4 GHz or IEEE 802.11 ac for 5 GHz. When the signal drops below a set threshold, the roaming function can move the unit to a stronger access point.
A digital input and a relay output allow the unit to be used for device triggering or event reporting. The solid metal body can be fitted to DIN-rail or bracket mounting kits, and the unit is rated for an operating temperature of -20 ℃ ~ 60 ℃. This variant is supplied with a category E plug type.
Applications
- Wireless connection of serial Modbus RTU devices to Ethernet or Wi-Fi networks
- Device triggering and event reporting over a wireless link
| Product type: | Wi-Fi Converter |
|---|---|
| Interface: | Ethernet, RS-232/485, Wi-Fi |
| Protocol: | Modbus RTU |
| Digital inputs: | 1 |
| Relay outputs: | 1 |
| Ports: | 2 |
| Power input: | +9~ 48 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | DIN-rail, bracket |
| Housing: | Metal |
Spesifikasjoner
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11a/b/g/n/ac |
| Encryption | WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK |
| Data Transmission Rate | 2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R) |
| Client | Max. 10 Clients (AP mode) |
| Channels | 2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165 |
| Antenna | 5 dBi 2.4/5 GHz |
| Digital Input | |
| Channels | 1 |
| Type | Wet |
| ON Voltage Level | 3.3 ~ 30 VDC |
| OFF Voltage Level | 3 VDC Max. |
| Relay Output | |
| Channels | 1 |
| Contact Rating | 30V / 1A |
| Ethernet | |
| Ports | 1* RJ45 FE |
| COM Ports | |
| Ports | 1 x RJ12( RS-232/RS-485) |
| Baud Rate | RS-232: 9600 / 19200 / 38400 / 57600 / 115200 RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800 |
| Data Bit | 8/7 |
| Stop Bit | 1/2 |
| Power | |
| Input Range | +9~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 31 x 99 x 131 (W x L x H)(without Mounting kit) 31 x 108 x 131 (W x L x H)(with DIN Rail kit) 167 x 99 x 39 (W x L x H)(with Bracket kit) |
| Installation | DIN-Rail Bracket |
| Environment | |
| Operating Temperature | -20 ℃ ~ 60 ℃ |
| Storage Temperature | -40 ℃ ~ 85 ℃ |
| Humidity | 10% ~ 95% (non-condensing) |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
