Edge-kontrollere og servere

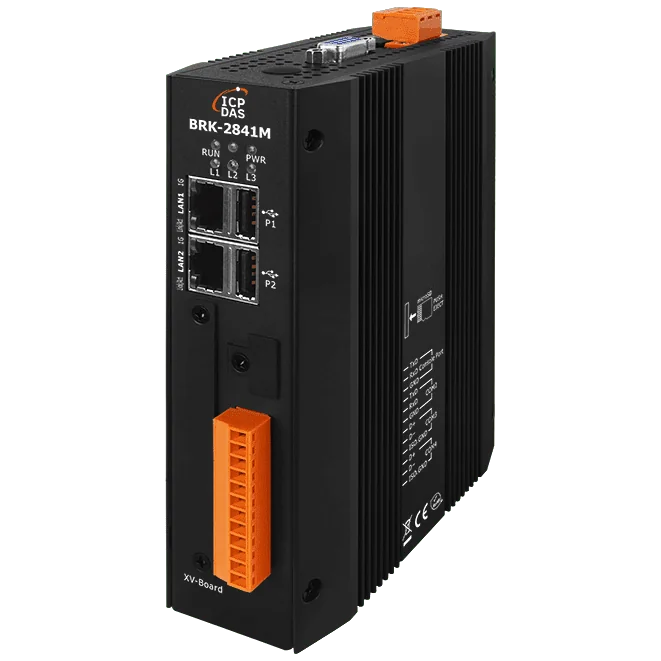

The BRK-2841M CR is a metal-cased MQTT communication server for machine-to-machine and industrial IIoT networks. It acts as a broker for distributing MQTT messages and as a concentrator for field data, supporting MQTT V3.1, V3.1.1 and V5.0 clients.Broker features include QoS message delivery, retained messages, identity authentication, communication encryption, Last Will messages and bridging. Settings are made through the browser-based Web UI, which reduces the effort of setting up and maintaining a broker. For resilience, several units can be grouped into a redundant system using the bridge, cluster, load balancer and high-availability functions, so that a hardware or network failure does not halt field services.Data can be written directly to mainstream databases such as MySQL. During connection outages, data is buffered to a MicroSD card (sold separately) and back-filled once the link is restored.ApplicationsBridge architecture deploymentsRedundancy architecture deploymentsCluster architecture deploymentsPlastic injection molding machine monitoring
UA-2241M is an IIoT communication server for linking field devices with MES, ERP, SCADA and cloud platforms. It acts as a gateway to remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, and republishes that data as OPC UA, MQTT and SNMP at the same time.The unit also works as a data logger. I/O data can be written to a remote MS SQL, MySQL or MariaDB database and saved locally in CSV format on a microSD card. An offline data recovery mechanism is provided for the remote database, and data can be forwarded to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeak. IFTTT logic triggers can send event notifications to mobile apps.Hardware includes two RJ-45 Ethernet ports, two RS-485 ports (2500 VDC isolated), two RS-232 ports, a 1.0 GHz ARM CPU and a DIN-rail metal housing. One optional XV-board can add I/O or RS-485 expansion. The product is marked CE, UKCA, FCC, RoHS and WEEE.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsIIoT data collection and forwarding to cloud platformsHistorical I/O data logging to remote databases and local storageIT/OT protocol integration and interoperability
UA-2841M CR is an IIoT communication server that bridges operational technology devices and IT systems. It polls Modbus TCP, Modbus RTU/ASCII and EtherNet/IP devices and publishes the data over OPC UA, MQTT, SNMP and RESTful at the same time, which suits links to MES, ERP, SCADA and cloud services.Data logging works in two ways. Records can be written directly to a remote MS SQL, MySQL, MariaDB or PostgreSQL database, with up to three database connections and 1000 tags, or saved locally as CSV files on a microSD card. An offline data recovery mechanism is provided for the remote database.The metal-cased unit runs a quad-core ARM 1.6 GHz CPU with 2 GB DDR4 SDRAM and 8 GB eMMC storage, and mounts on DIN-rail. It accepts +12 ~ +48 VDC power and has an operating temperature range of -25 ~ +70°C.ApplicationsIndustrial IoT communication protocol conversionIT communication protocol conversionLocal and remote database records
IIoT Communication Server with 1 Ethernet Port (Plastic Case).
UA-5231M CR is an IIoT communication server that links IT and OT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT or EtherNet/IP and republishes that data as OPC UA, MQTT and SNMP at the same time, so one unit can serve MES, ERP, SCADA and cloud systems together.The data logger writes I/O data to a remote MS SQL, MySQL or MariaDB database and to CSV files on a microSD card, building a local historical record. An offline data recovery mechanism protects the remote database connection, which supports one database connection with up to 1000 tags. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT can trigger app notifications when an event occurs.Security options include HTTPS, an OpenVPN client, SNMP v3, communication encryption and dynamic blocklist and whitelist filtering. The metal case mounts on DIN-rail and is rated for -25 ~ +75°C operation. An optional XV-board can add I/O or RS-485 ports, on Rev.B units only.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsUploading I/O data to cloud IIoT platformsHistorical data logging to remote databases and local filesEvent-triggered notifications via IFTTT
The UA-5231M-4GE CR is an IIoT communication server for linking field devices with IT systems. It reads data from remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII and EtherNet/IP, then makes that data available simultaneously over OPC UA, MQTT and SNMP. The 4G LTE (FDD) link allows it to reach cloud services and remote sites where a wired network is not available.For data logging, the unit can write I/O values to a remote MS SQL, MySQL or MariaDB database, supporting one database connection with up to 1000 tags, while also saving records to a local microSD card in CSV format. An offline data recovery mechanism is included for the remote database. Security features include HTTPS, an OpenVPN client, SNMP v3, communication encryption, and a dynamic blocklist and whitelist.Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT logic can trigger app notifications. A PID function is available for local control logic. The metal case is designed for DIN-rail mounting and is rated for an operating temperature of -25 ~ +75°C. This variant is intended for Asia only, except China.ApplicationsConnecting remote I/O modules and controllers to MES, ERP and SCADA systemsUploading I/O data to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeakLogging I/O data to remote SQL databases with local backup on microSDTriggering mobile app notifications from machine events via IFTTT
The UA-7231M CR is an IIoT communication server that links field devices to IT systems. It polls remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes that data through OPC UA, MQTT and SNMP, which can run at the same time. This makes it a practical bridge between shop-floor equipment and MES, ERP or SCADA platforms.Data logging is built in. I/O values can be written to a remote MS SQL, MySQL or MariaDB database, or saved as CSV files on a microSD card. If the remote database becomes unavailable, the offline recovery mechanism helps keep the record intact. Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger app notifications from events.The unit is powered from +12 ~ +48 VDC or via PoE (IEEE 802.3af, Class 1) and mounts on a DIN rail in a metal case. The CR ordering code is the RoHS-listed version of the UA-7231M.ApplicationsConnecting shop-floor I/O and controllers to MES, ERP and SCADA systemsIndustrial IoT data collection and cloud reportingHistorical data logging to remote databases or local microSD storageEvent-driven alerts through IFTTT mobile app notifications
WISE-2241M is an IIoT edge controller that runs control and monitoring logic locally, so engineers can build IF-THEN-ELSE rules without writing code. Configuration is done through a web browser, with no extra software tool required.The controller gathers data from several sources at once. Its RS-485 ports take XV-board, DCON and Modbus RTU slave modules, with COM3 and COM4 each connecting up to 16 modules, and Ethernet takes Modbus TCP slave modules. Data can be logged and sent back as files or transferred in real time, and CGI commands allow integration with IP cameras and network devices.For higher-level integration, the unit supports Modbus TCP and RTU, SNMP, FTP and MQTT, and can send LINE and email messages. It connects directly to Microsoft Azure and IBM Bluemix IoT platforms, or to the IoTstar cloud management software. The metal case mounts on a DIN-rail and operates from -25 ~ +75 °C.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment
WISE-2841M CR is a metal-cased IIoT edge controller that is set up and monitored from a web browser, so no separate software tool is needed. Control logic is defined through web pages using IF-THEN-ELSE rules, which avoids conventional programming for most automation tasks.The controller gathers data from DCON or Modbus RTU slave modules on COM3 and COM4, Modbus TCP slave devices, I-7000 and M-7000 series I/O, (P)ET-7000 modules, WF-2000 devices and iCAM IP cameras, then forwards it through MQTT, SNMP traps or Modbus TCP master functions. For security, it supports HTTPS for web access, SFTP and FTPS for log file transfer, SNMP v3 and a VPN function for reaching devices on a protected network.Cloud links are available to Amazon Web Services, Microsoft Azure and IBM Bluemix IoT platforms, as well as ICP DAS IoTstar cloud management software. Real-time alerts can be sent via LINE Notify, Telegram, WeChat and email, making the unit suitable for building automation, factory and machine automation, and remote maintenance.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment
The WISE-2841M-4GE is a metal-case IIoT edge controller that is configured through a web browser, so no additional software tool is needed. Control logic is built on web pages rather than written as code, and IF-THEN-ELSE rules run directly on the controller. It suits engineers who want local automation logic, I/O monitoring and data handling at the edge without custom programming.On the connectivity side, the unit combines RS-485 and Modbus slave support with 4G wireless communication. It can read DCON, Modbus RTU and Modbus TCP slave modules, and it can send data and messages over Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3. HTTPS, SFTP and FTPS are available for encrypted access, and a VPN function allows connection to devices on a secured network.This ordering code is the 4G variant with a frequency band for EMEA, Korea, Thailand, India and Taiwan. The 4G system supports FDD LTE bands B1/B3/B5/B7/B8/B20, and the controller also supports a range of cloud platforms, including Amazon Web Services, Microsoft Azure and IBM Bluemix, as well as the IoTstar Cloud Management Software.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment
WISE-5231 CR is a plastic-case IIoT edge controller for engineers who need local control logic and I/O concentration without writing code. Logic is configured through built-in web pages in a browser, so no separate software tool is needed. IF-THEN-ELSE rules, timers, schedules and recipes run on the controller itself.The unit collects field data from several sources at once. It supports XV-board, DCON or Modbus RTU slave modules (up to 32, with COM3 and COM4 each taking up to 16) and Modbus TCP slave modules (up to 16). Data logging with file transfer, active I/O sending, and CGI command exchange with IP cameras and network devices are also supported. Communication runs over Modbus TCP/RTU, SNMP, FTP and MQTT, with LINE and email alerts for real-time notifications.For cloud integration, the controller connects to Microsoft Azure and IBM Bluemix IoT platforms and works with the IoTstar cloud management software. The CR ordering variant is supplied in a plastic case with a 12 ~ 48 VDC power input, a -25 ~ +75 °C operating range and DIN-rail mounting.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing EquipmentUnmanned Facility Room MonitoringEnvironment MonitoringAccess Control
WISE-5231M is a metal-cased edge controller for running control logic and monitoring remote I/O without writing code. Logic rules are set up through web pages in a standard browser, so no separate configuration software is needed. The IF-THEN-ELSE engine supports unlimited rules, alongside timers, schedules and data logging.The controller can gather data from several device types at once, including XV-board, DCON and Modbus RTU slave modules on its RS-485 ports, and Modbus TCP slave modules over Ethernet. Up to 32 DCON or Modbus RTU slave modules can be connected, with COM3 and COM4 each handling up to 16 modules individually. Data can be forwarded through MQTT, Modbus TCP/RTU, SNMP, FTP and email, and LINE notifications are available for real-time alerts.Cloud integration is supported through MQTT with Microsoft Azure and IBM Bluemix, and the unit works with the IoTstar cloud management software. The controller runs on a 32-bit ARM CPU at 1.0 GHz with a 32 GB microSD card, and accepts a 12 ~ 48 VDC supply. It is rated for -25 ~ +75 °C operation and can be installed on a DIN-rail or wall.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipmentUnmanned facility room monitoringIntelligent factoryEnvironment monitoring
The WISE-5231M-4GE is a metal-cased IIoT edge controller for remote logic control and monitoring of field I/O. Logic is configured through a web browser, so engineers can build IF-THEN-ELSE rules without writing code or installing additional software.On the I/O side, the controller connects XV-board, DCON and Modbus RTU slave modules, as well as Modbus TCP slave modules, allowing one unit to gather data from mixed hardware. Timers, schedules, data logging and recipe operations support local automation, while LINE, SMS and email messages can report events in real time.For remote connectivity, the 4G/3G interface and MQTT client allow data to reach IoT platforms such as Microsoft Azure and IBM Bluemix, or to be managed with ICP DAS IoTstar. The 4G frequency band is specified for EMEA, Korea, Thailand, India and Taiwan.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment
