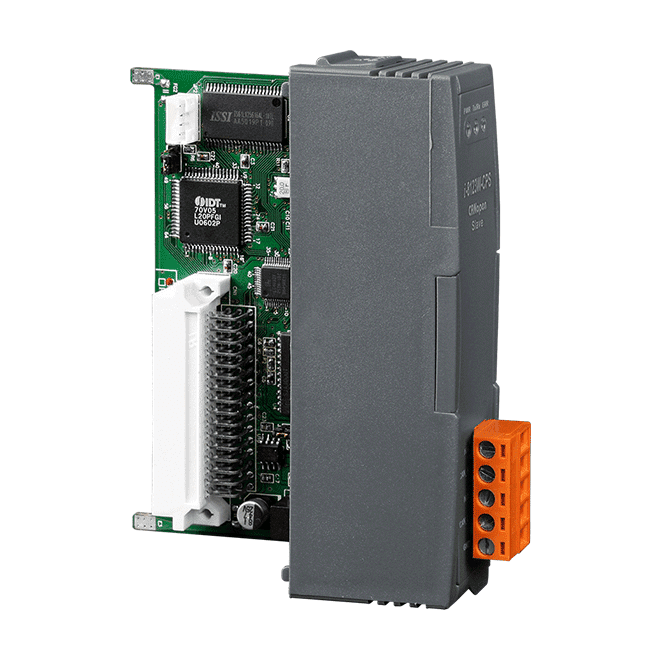

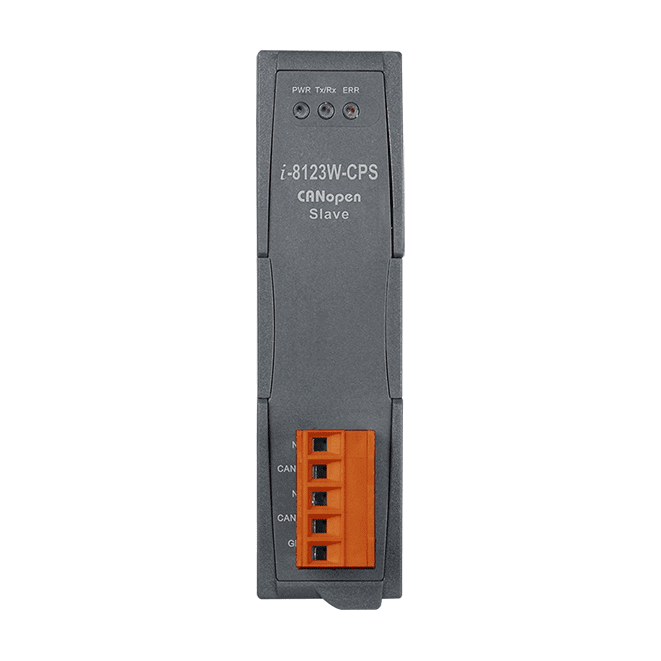

I-8123W-CPS-G CANopen Slave Module, 1-Port Parallel Bus Type
1-port CANopen slave module for WinPAC, ViewPAC and XPAC PACs, supporting DS-301 v4.02, node IDs 1 to 127 and 2500 Vrms photo-isolation on the CAN side.
- Single CANopen slave port with DS-301 v4.02 support and node IDs 1 to 127
- Node Guarding and Heartbeat Consumer protocols with EMCY, Node Guarding and Heartbeat event triggers
- Event-triggered, remote-requested, cyclic and acyclic SYNC PDO modes with dynamic PDO mapping
- Single-byte PDO output allows one byte to change without affecting the others
- SDO segment protocol and a 256-record CANopen message receive buffer
- NXP SJA1000T controller, 10 k to 1 M baud, built-in 120 Ω terminal resistor
3 220,44 kr per stk.
| 1–9 stk. | 3 220,44 kr | |
|---|---|---|
| 10–30 stk. | 3 126,94 kr | −3 % |
| 31+ stk. | 3 064,61 kr | −5 % |
Produktinformasjon "I-8123W-CPS-G CANopen Slave Module, 1-Port Parallel Bus Type"
The I-8123W-CPS-G adds a single CANopen slave port to supported ICP DAS PACs, so an engineer can connect a WinPAC, ViewPAC or XPAC controller to a CANopen network as a slave device. It is a practical choice where a PAC needs CANopen connectivity without a separate gateway, and it suits distributed real-time control in industrial, building and vehicle applications.
The module follows the CiA DS-301 v4.02 specification and supports node IDs from 1 to 127, with a programmable slave node ID. Node Guarding, Heartbeat Consumer, EMCY, and PDO/SYNC behaviour can be configured through event triggers and several PDO transmission modes, while dynamic PDO mapping and single-byte PDO output help keep process data updates efficient.
Ordering code I-8123W-CPS-G CR. The CAN interface uses an NXP SJA1000T controller with a built-in 120 Ω terminal resistor, a baud rate range of 10 k to 1 M, and 2500 Vrms photo-isolation on the CAN side. Vendor-supplied eVC++, VB.Net and C# demos are provided to help with application development.
Applications
- Industrial automation
- Building automation
- Vehicle
- Maritime
- Embedded control networks
| Product type: | CANopen slave module |
|---|---|
| Interface: | CAN |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 2500 Vrms (CAN side) |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Software | |
|---|---|
| Driver | WinPAC, ViewPAC, XPAC-CE6 (The XPAC series PAC only support one I-8123W-CPS) |
| SDK | eVC++4.0, VC++, VB.net, C#.net |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, Rx/Tx LED, ERR LED |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Slave |
| Power | |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 31 x 115 x 91 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
