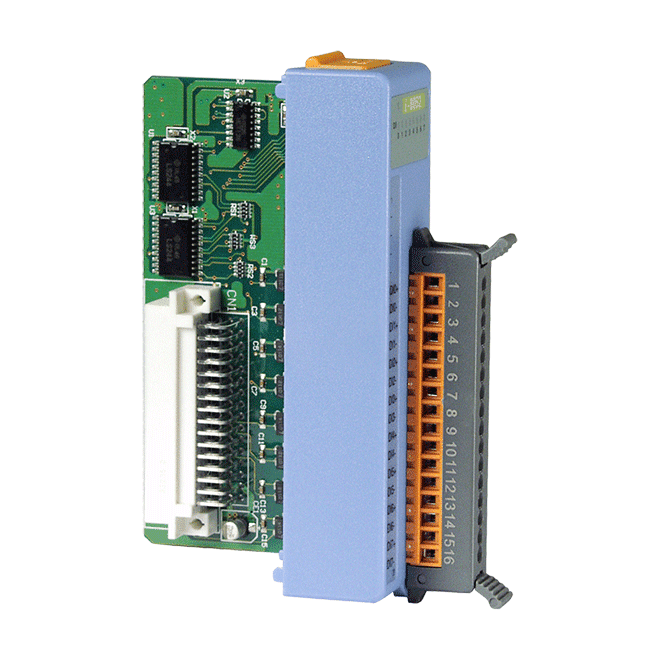

I-8052 Isolated Digital Input Module, 8-ch Wet Contact 10~30 VDC
8-channel isolated digital input module for wet contact signals, with ON levels from +3.5 to +30 VDC, 2 kV channel-to-channel isolation and sink or source wiring selection.
- 8 fully independent differential digital input channels
- 2 kV channel-to-channel photocoupler isolation and 5000 VDC intra-module isolation
- Sink- or source-type input selected via wiring
- Wet contact inputs: ON at +3.5 ~ +30 VDC, OFF at +1 VDC max.
- ±4 kV ESD protection on each terminal (IEC 61000-4-2)
- 8 I/O LED indicators plus 1 power and communication LED
799,91 kr per stk.
| 1–9 stk. | 799,91 kr | |
|---|---|---|
| 10–30 stk. | 768,75 kr | −4 % |
| 31+ stk. | 758,36 kr | −5 % |
Produktinformasjon "I-8052 Isolated Digital Input Module, 8-ch Wet Contact 10~30 VDC"
The I-8052 CR is an 8-channel digital input module for monitoring wet contact signals in industrial control systems. Each of its eight differential channels is fully independent, and photocoupler isolation of 2 kV channel-to-channel keeps the inputs electrically separated from one another.
Input type is chosen through the wiring, so the same module can be set up as either sink or source type to suit the field devices. The ON level is +3.5 ~ +30 VDC and the OFF level is +1 VDC maximum. Eight I/O LEDs show the state of each input, and a further LED indicates power and communication.
With ±4 kV ESD protection on each terminal, a maximum consumption of 0.3 W and an operating range of -25 ~ +75 °C, the module is suited to building, factory and machine automation, as well as remote maintenance, remote diagnosis and testing equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 8 |
| Isolation: | 2 kV channel-to-channel |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 5000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 8 x I/O |
| Digital Input | |
| Channels | 8 Differential |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.25W |
| Power | |
| Consumption | 0.3 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
