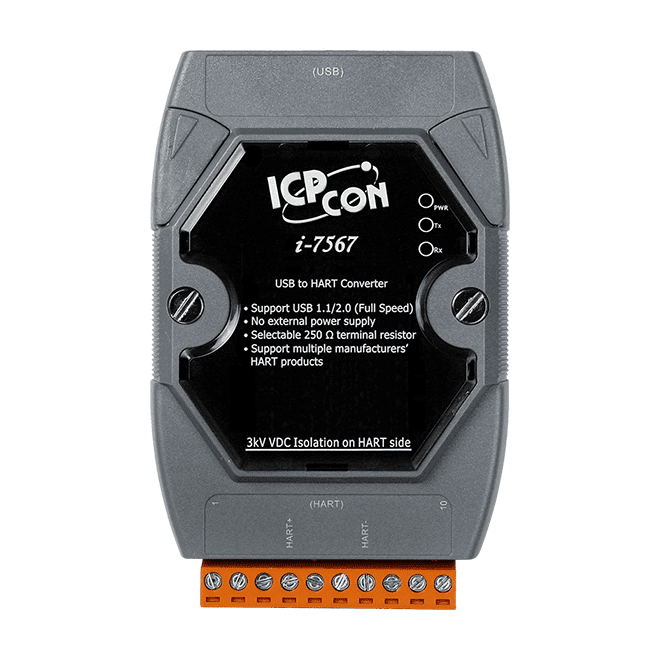

I-7567 USB to HART Converter, Master or Slave Mode, Gray Cover
USB to HART converter that gives a PC virtual COM port access to HART slave devices, or emulates a HART slave. USB-powered with 3000 VDC isolation and a selectable 250 Ω resistor.
- Operates as a HART master with virtual COM port access, or as a HART slave with HDS software
- Supports HART short and long frames and Burst mode
- Point-to-point or multi-drop operation with up to 15 HART slave devices and two HART masters
- Powered by USB 1.1 and 2.0, with no external power supply required
- 3000 VDC isolation and 4 kV ESD protection
- Selectable 250 Ω terminal resistor
3 802,19 kr per stk.
| 1–9 stk. | 3 802,19 kr | |
|---|---|---|
| 10–30 stk. | 3 687,92 kr | −3 % |
| 31+ stk. | 3 615,20 kr | −5 % |
Produktinformasjon "I-7567 USB to HART Converter, Master or Slave Mode, Gray Cover"
The I-7567 CR links a Windows PC to HART field devices over USB. It can act as a HART master, so the PC reaches slave devices through a virtual COM port, or as a HART slave when paired with the HDS simulation software. Engineers can therefore build and test HART data collection without first installing field instruments.
The converter supports HART short and long frames as well as Burst mode. It handles point-to-point or multi-drop wiring with up to 15 HART slave devices and allows two HART masters. A bundled utility handles module configuration and HART communication tests, and firmware can be updated over USB.
Power comes entirely from the USB port, so no separate supply is needed. The unit provides 3000 VDC isolation and 4 kV ESD protection, and the 250 Ω terminal resistor can be switched in as required. Support for the FDT standard enables online HART configuration systems.
Applications
- Current measurement
- Petrochemical industry
- Environment monitoring
- Tunnel monitoring
- Building monitoring
- Monitoring systems
- FDT-based HART configuration and control systems
| Product type: | USB to HART converter |
|---|---|
| Interface: | USB Type B |
| Protocol: | HART |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | USB |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail or wall |
Spesifikasjoner
| Software | |
|---|---|
| Driver | Windows 2000 / XP / Vista / 7 (32/64 bit) |
| LED Indicators | |
| Status | PWR : Power Indicator Tx : Received Data from USB Indicator Rx : Received Data from HART Indicator |
| USB | |
| Specification | USB 1.1 and 2.0 standard |
| Connector | USB Type B |
| Virtual COM Parameter | 1200 bps, O(odd parity), 8(data bit), 1(stop bit) |
| HART | |
| Ports | 1 |
| Terminal Resistor | Selectable 250 Ω terminal resistor |
| Isolation | 3000 VDC |
| Power | |
| Input Range | By USB Interface |
| Consumption | Maximum : 1.5W |
| Mechanical | |
| Dimensions (mm) | 108 x 72 x 35 (H x W x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C (-13 to 167 ℉) |
| Storage Temperature | -30 ~ +75 °C (-22 to 167 ℉) |
| Humidity | 5% ~ 95%, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
