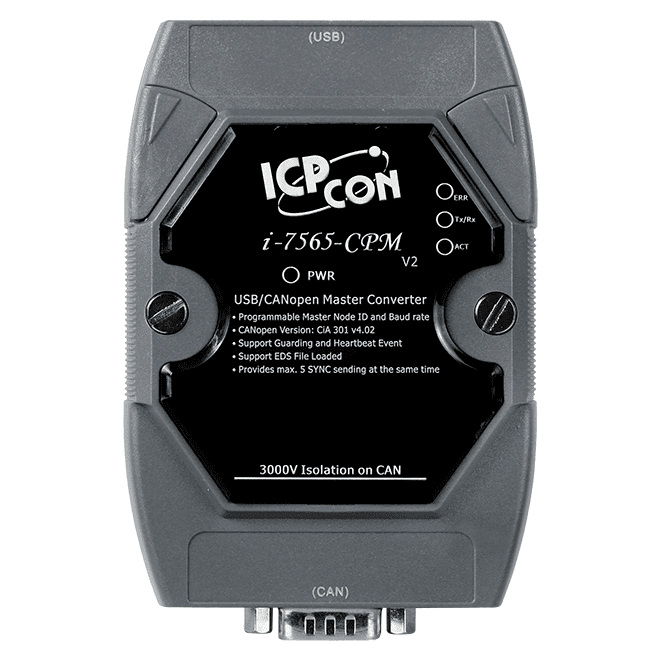

I-7565-CPM-G USB to CANopen Master Converter, CiA 301 v4.02
USB to CANopen master converter with CiA 301 v4.02 support and an on-board 80186 CPU. Connects a PC over USB Type B to a single CANopen port for CANopen network control.
- Follows CiA 301 v4.02 with NMT master, PDO, SDO, SYNC and EMCY services, plus Node Guarding and Heartbeat
- USB 1.1/2.0 Full Speed interface via USB Type B at 921.6 kbps
- On-board 80186 CPU at 80 MHz running firmware independently, with 512 KB flash and 512 KB SRAM
- Auto-search of slave devices, with on-line adding and removal of devices
- Event triggers for EMCY, guarding, heartbeat and slave boot-up events
- EDS file support and CANopen Motion Library following CiA 402
2 669,84 kr per stk.
| 1–9 stk. | 2 669,84 kr | |
|---|---|---|
| 10–30 stk. | 2 597,13 kr | −3 % |
| 31+ stk. | 2 534,79 kr | −5 % |
Produktinformasjon "I-7565-CPM-G USB to CANopen Master Converter, CiA 301 v4.02"
The I-7565-CPM-G CR is a USB to CANopen master converter for engineers who want to run a CANopen network from a PC. It has its own 80186 CPU at 80 MHz that runs the converter firmware independently, so the host only has to send commands over USB. A set of APIs lets developers control the device from their own applications, which reduces the work needed to handle the CANopen protocol directly.
The unit has one CANopen port built on an NXP SJA1000T CAN controller, with baud rates from 10 k to 1 M and a built-in 120 Ω terminal resistor. Its USB connection makes it easy to move between test benches and machines, which suits quick CANopen system setup and commissioning. The CANopen master also supports the CANopen Motion Library, which follows CiA 402 and covers position, velocity, torque and synchronised control.
The I-7565-CPM-G CR is listed with a RoHS designation in its ordering description. It carries CE, UKCA, FCC, RoHS and WEEE certifications, and its operating range is -25 ~ +75 °C.
Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles
| Product type: | Converter |
|---|---|
| Interface: | CANopen, USB Type B |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Software | |
|---|---|
| Driver | Windows 98/ME/NT/2K/XP/Vista/Win7/Win10 and Linux |
| SDK | VC++6.0, VB6.0, C#.net, VB.net |
| CPU Module | |
| CPU | 80186, 80MHz. |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, ACT LED, ERR LED, Tx/Rx LED. |
| USB | |
| Transfer Speed | 921.6 kbps |
| Connector | 1 x USB (Type B) |
| CANopen | |
| Controller | NXP SJA1000T CAN Controller |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Mechanical | |
| Dimensions (mm) | 72 x 101 x 33 (W x H x D) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
